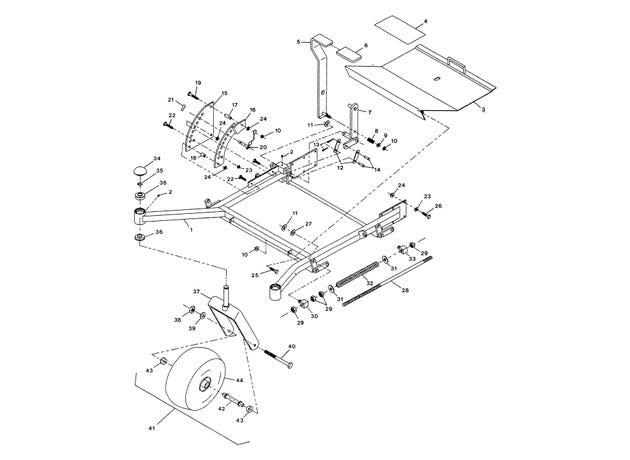

eXmark MN LZ-25KC60 Front Frame Group

#
Part #
Item
Price
Qty
Add
1
1-632433
Frame wldmt, front 52"

product not available CALL FOR AVAILABILITY

$0.01
2
1-811006
Zerk, 1/8 - 28 straight

product not available CALL FOR AVAILABILITY

$0.01
3
1-632206
Floorpan wldmt

product not available CALL FOR AVAILABILITY

$0.01
4
1-373065
Pad, anti-skid
$8.27
5
1-632324
Lever weldment, lift

product not available CALL FOR AVAILABILITY

$0.01
6
1-633295
GRIP-LEVER, LIFT
$8.03
7
1-632219-03
ARM-LIFT, DECK

product not available CALL FOR AVAILABILITY

$0.01
8
1-633325
SPRING-COMPRESSION
$5.39
9
1-805260
3/8 Std. flatwasher

product not available CALL FOR AVAILABILITY

$0.01
10
1-804257
3/8-16 Nylock nut

product not available CALL FOR AVAILABILITY

$0.01
11
1-808505
RING,SNAP E WLDS 5133-87

product not available CALL FOR AVAILABILITY

$0.01
12
1-633068
ARM-LIFT, DECK
$11.99
13
1-806761
Pin, cotter 1/8 x 3/4

product not available CALL FOR AVAILABILITY

$0.01
14
1-808284
PIN-CLEVIS
$3.59
15
1-633072
Plate, deck lift

product not available CALL FOR AVAILABILITY

$0.01
16
1-632195
Plate weldment, deck lift

product not available CALL FOR AVAILABILITY

$0.01
17
1-633082
Bushing
$11.99
18
1-633080
Spacer
$10.79
19
1-800299
Screw, 3/8-16 x 2-3/4

product not available CALL FOR AVAILABILITY

$0.01
20
1-633097
PIN-HITCH (W/LANYARD)
$23.09
21
1-806005
Hairpin-Cotter
$2.85
22
1-800295
3/8-16 X 1 3/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
23
1-303327
XREF 98-5975

product not available CALL FOR AVAILABILITY

$0.01
24
1-809007
3/8-16 Whizlock Nut

product not available CALL FOR AVAILABILITY

$0.01
25
1-800292
3/8-16 x 1 HHCS

product not available CALL FOR AVAILABILITY

$0.01
26
1-800293
3/8-16 x 1 1/4 HH capscrew

product not available CALL FOR AVAILABILITY

$0.01
27
1-805271
Washer, 7/8 SAE flat

product not available CALL FOR AVAILABILITY

$0.01
28
1-633096
ROD-LIFT, DECK
$23.09
29
1-804522
Nut, 5/8-11 hex

product not available CALL FOR AVAILABILITY

$0.01
30
1-633441
SWIVEL-DECK MOUNT, REAR
$26.39
31
1-805268
Washer, 5/8 standard flat

product not available CALL FOR AVAILABILITY

$0.01
32
1-633064
SPRING-SUPPORT, DECK
$31.89
33
1-633443
Swivel, deck mount

product not available CALL FOR AVAILABILITY

$0.01
34
1-513649
Cap, grease
$11.99
35
1-808508
Ring, rtng

product not available CALL FOR AVAILABILITY

$0.01
36
1-513104
Bearing, ball
$69.29
37
1-632006-01
Caster wldmt
$134.99
38
1-804509
1/2-13 Hex nut

product not available CALL FOR AVAILABILITY

$0.01
39
1-805008
1/2 spring lockwasher

product not available CALL FOR AVAILABILITY

$0.01
40
1-800339
XREF 325-36

product not available CALL FOR AVAILABILITY

$0.01
41
1-632250
Caster wheel assembly

product not available CALL FOR AVAILABILITY

$0.01
42
1-632050
Spacer weldment, wheel
$32.99
43
1-513009
Bearing, wheel

product not available CALL FOR AVAILABILITY

$0.01
44
1-633001
Wheel and tire assembly

product not available CALL FOR AVAILABILITY

$0.01

1-632422
Frame wldmt, front

product not available CALL FOR AVAILABILITY

$0.01

1-633002
TIRE
$86.99

1-633003
Wheel

product not available CALL FOR AVAILABILITY

$0.01
