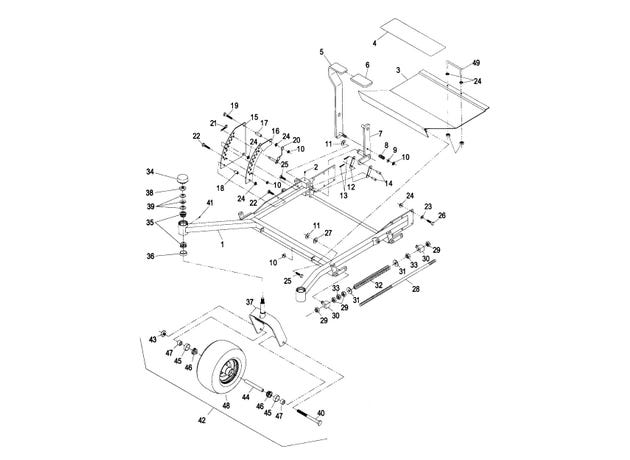

eXmark MN LZ26KC604 Front Frame Group

1

103-3658

Frame wldmt, front 52" - DISCONTINUED

$2,399.99

2

302-19

Zerk-1/4-28 Str

$2.85

3

103-1502

Asm,floorpan (103-1490-01) w/pads and decals

product not available CALL FOR AVAILABILITY

$0.01

4

1-633553

PAD-ANTISKID

$13.19

5

103-2084

LIFT LEVER/GRIP ASM

$79.19

6

1-633295

GRIP-LEVER, LIFT

$8.51

7

109-0632

KIT,LZ LOWER DECK LIFT LEVER

$89.99

8

1-633325

SPRING-COMPRESSION

$5.75

9

3256-24

Washer-3/8 SAE

$0.83

10

3296-39

Nut-Nyloc 3/8-16

$2.98

11

32151-103

E-Ring

$3.47

12

1-633068

ARM-LIFT, DECK

$12.09

13

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

14

1-808284

PIN-CLEVIS

$3.83

15

1-633889-01

PLATE-LIFT, DECK

$73.69

16

1-632899-01

PLATE-LIFT, DECK

product not available CALL FOR AVAILABILITY

$0.01

17

1-633082

Bushing

$12.09

18

1-633080

Spacer

$11.99

19

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

20

1-633097

PIN-HITCH (W/LANYARD)

$24.19

21

1-806005

Hairpin-Cotter

$2.98

22

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

23

98-5975

Washer-Spring Disc 3/8

$3.71

24

3290-357

Nut-Whizlock 3/8-16

$1.11

25

323-6

Screw-HH 3/8-16 x 1

$2.98

26

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

27

3256-29

Washer-7/8 SAE

$3.11

28

1-633096

ROD-LIFT, DECK

$24.19

29

3217-11

Nut-Hex 5/8-11

$3.95

30

1-633441

SWIVEL-DECK MOUNT, REAR

$27.49

31

3256-7

Washer-5/8 Std

$1.94

32

1-633064

SPRING-SUPPORT, DECK

$34.09

33

3218-6

Nut-Jam 5/8-11

$7.31

34

1-543513

CAP-GREASE

$8.75

35

1-543509

Cone-Bearing Tapered Roller

$14.29

36

1-543511

Seal-Grease

$12.09

37

116-8883

KIT-CASTER

$136.99

38

3296-51

Nut-Nyloc 3/4-10

$7.19

39

1-633508

Washer-Spring Disc

$3.83

40

325-36

Screw-HH 1/2-13 x 7 1/2

$12.09

41

1-811010

Plug

$5.75

42

1-634662

CASTER WHEEL ASM

$228.99

43

3296-45

NUT-HEX

$4.55

44

1-633579

SPACER-CASTER, FRONT

$14.29

45

1-633580

SEAL-BEARING

$9.59

46

1-633585

Bearing-Cone Tapered Roller

$21.99

47

1-633581

SPACER-BEARING

$5.03

48

1-633582

WHEEL and TIRE ASM

$140.99

49

1-633587

HANDLE,DECK

$8.03



103-3659

KIT,FRONT FRAME LZ 60

$2,679.99



1-642046-01

Frame wldmt, front 72"

product not available CALL FOR AVAILABILITY

$1.00



1-643015

SPRING-SUPPORT, DECK

$42.89



1-543508

Cup-Bearing Tapered Roller

$8.51



116-8887

CASTER-KIT

$130.99



325-24

SCREW-HH

$15.39



1-644251

CASTER WHEEL ASM

$217.99



1-633959

SPACER-CASTER, FRONT

$18.69



1-633002

TIRE

$91.99



1-633583

WHEEL

$89.99



1-523009

TIRE

$105.99



1-633987

WHEEL

$215.99



1-633584

BEARING-CUP

$9.59



1-850337

Exmark red touch up spray paint

$31.89
