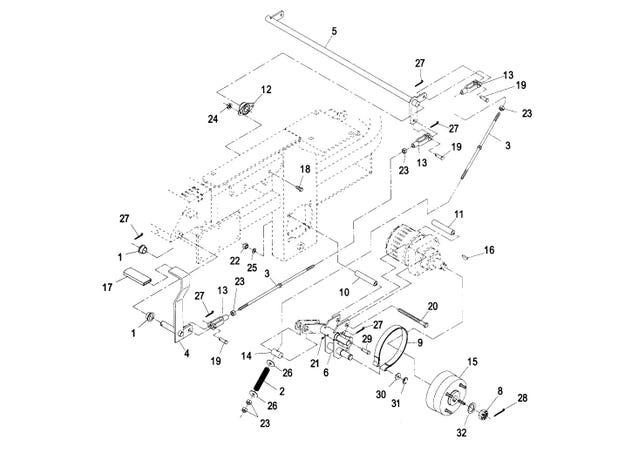

eXmark MN LZ25KC523 Park Brake Group

1

1-513140

Bearing

$7.07

2

1-633454

SPRING-BRAKE

$11.99

3

1-633477

ROD-BRAKE

$19.79

4

1-634500

BRAKE LEVER ASM

$75.89

5

1-632217-03

SHAFT-BRAKE

$156.99

6

1-632714-03

WLD,BRACKET LH 52

$187.99

7

1-632715-03

WLD,BRACKET RH 52

product not available CALL FOR AVAILABILITY

$0.01

8

1-809036

Nut-Slotted 1-20

$38.49

9

1-633693

BAND,BRAKE

$78.09

10

1-633380

SPACER-WHEEL, SHORT

$8.99

11

1-633382

SPACER-WHEEL, LONG

$9.59

12

1-633102

Bearing-Flanged

$18.69

13

1-633131

YOKE-LINKAGE, BRAKE

$16.49

14

1-633144

PIN-TRUNION

$14.29

15

103-0590

WHEEL HUB ASM

$169.99

16

3257-42

Key-Woodruff 5/16 x 1

$6.71

17

1-633268

GRIP-LEVER

$15.39

18

323-4

Screw-HH 3/8-16 x 3/4

$4.31

19

1-808285

Pin-Clevis 3/8 x 1 1/8

$3.47

20

325-17

Screw-HH 1/2-13 x 4

$6.83

21

1481

FITTING-GREASE

$7.07

22

3217-9

NUT-HH

$0.74

23

3219-3

Nut-Hex 3/8-24

$2.07

24

3290-357

Nut-Whizlock 3/8-16

$1.11

25

3253-7

WASHER-LOCK

$1.25

26

3256-4

Washer-3/8 Std

$1.94

27

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

28

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

29

1-808283

PIN,CLEVIS 3/8X2

product not available CALL FOR AVAILABILITY

$0.01

30

3256-28

Washer-3/4 SAE

$3.95

31

32151-48

E-Ring

$1.94

32

1-523157

Washer

$1.81



1-641337

KIT, WHEEL HUBW/STUD

$234.99



1-633926

STUD-WHEEL

$5.03



109-5012

SPACER-WHEEL, LONG

$28.59



1-633060

SPACER-WHEEL, SHORT

$15.39



1-632713-03

WLD,BRACKET RH 60

product not available CALL FOR AVAILABILITY

$0.01



1-632712-03

WLD,BRACKET LH 60

product not available CALL FOR AVAILABILITY

$0.01



325-20

Screw-HH 1/2-13 x 6

$8.51



302-19

Zerk-1/4-28 Str

$2.85
