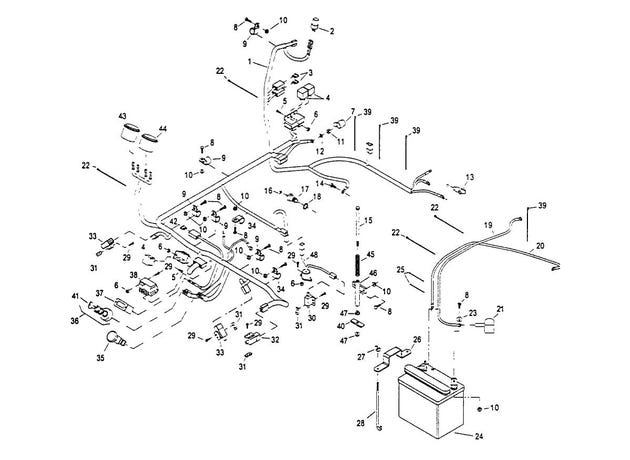

eXmark MN LZ23KC523 Kawasaki Liquid-Cooled Electrical Group

1

1-643095

Harness-wiring

product not available CALL FOR AVAILABILITY

$0.01

2

1-633833

SWITCH-THERMAL, FAN

$98.99

3

1-816003

FUSE-BLADE TYPE, 30 AMP

$5.75

4

1-643275

Relay-12VDC 40 Amp

$24.19

5

1-803071

SCREW

$1.55

6

3296-2

Nut-Nyloc #10-24

$2.46

7

1-543393

Insulator-Solenoid

$5.75

8

321-4

Screw-HH 1/4-20 x 3/4

$1.39

9

1-633396

Clip-Loom 5/8

$5.75

10

32128-33

Nut-Whizlock 1/4-20

$0.97

11

33014-00

Nut-Hex M8-1.25

$0.59

12

1-805005

Washer-Lock 5/16 Heavy

$1.55

13

1-643178

CAP-INSULATOR, RED

$5.75

14

1-809026

SCRW,HHCS M8-1.25X16

product not available CALL FOR AVAILABILITY

$1.00

15

1-800282

Screw-HH 5/16-18 x 7

$5.75

16

1-643145

TAB

$2.85

17

1-643036

SENDER UNIT-TEMPERATURE

$126.99

18

1-643153

WASHER-ALUMINUM

$5.75

19

109-7608

ASM,POSITIVE BATTERY CABLE

$45.09

20

1-633307

Cable-Ground (-)

$41.79

21

109-2407

INSULATOR-BATTERY

$5.75

22

3290-378

Tie-Cable

$1.11

23

3256-2

Washer-1/4 Std

$0.59

24

1-603479

BATTERY

product not available CALL FOR AVAILABILITY

$1.00

25

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

26

1-633652-03

STRAP-HOLDDOWN

$20.89

27

1-543792

Wingnut-Nyloc 1/4-20

$7.07

28

1-633651

BOLT-HOLDDOWN

$8.75

29

3290-500

Screw-PPH #10-24 x 5/8

$1.55

30

1-513152

Switch-N.C.

$14.29

31

1-633181

Plate-Tapped

$7.07

32

1-633110

Switch

$23.09

33

1-633111

Switch

$21.99

34

1-513762

Clip-Loom 1/2

$8.51

35

103-5221

Switch-PTO

$59.39

36

1-543070

SWITCH,IGNITION

$45.09

37

120-2244

HOURMETER

$71.49

38

1-633856

MODULE,IGNITION INTRLOCK

$177.99

39

1-643115

TIE-PLASTIC

$3.11

40

1-513180

PLATE-SWITCH, SEAT

$17.59

41

1-603511

Key-Ignition

$2.72

42

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

43

1-643037

GAUGE-VOLTMETER

$195.99

44

1-643021

GAUGE-TEMPERATURE

$131.99

45

1-523415

Spring

$34.09

46

1-522424-03

MOUNT-SPRING, SEAT

$35.19

47

32128-20

Nut-Whizlock 5/16-18

$1.39

48

109-4577

KIT,TILT SWITCH ELIMINATION

$5.75
