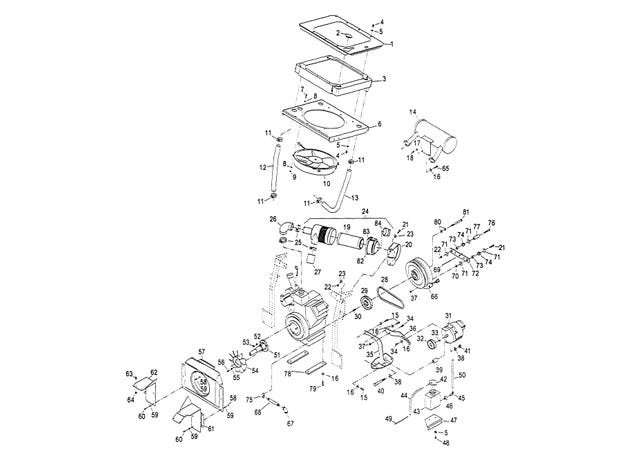

eXmark MN LZ23KC523 Kawasaki Liquid-Cooled Engine Deck Group (Part 1)

1

1-633902

Plate, Radiator Trim Face

product not available CALL FOR AVAILABILITY

$1.00

2

1-643161

CAP-RADIATOR

$77.99

3

1-641327

RADIATOR,HORIZ MOUNTSERV - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

4

322-1

SCREW-HH

$0.83

5

3256-23

Washer-5/16 SAE

$2.59

6

103-3343

Asm, Fan Mount Plate (1-633888-03) W/Decals

product not available CALL FOR AVAILABILITY

$0.01

7

1-803067

SCREW

$1.81

8

3256-16

Washer-#12 Std

$0.59

9

1-804254

NUT-LOCK, HH

$1.68

10

1-633831

FAN

$540.99

11

2412-34

CLAMP-HOSE

$2.33

12

1-633894

HOSE-INLET, RADIATOR

$78.99

13

1-633895

HOSE-RETURN, RADIATOR

$85.99

14

103-1553

Muffler, kit

$487.99

15

33114-025

Screw-HH M8-1.25 x 25mm

$1.94

16

1-303334

Washer-Spring Disc 5/16

$2.98

17

33013-00

Nut-Whizlock M8-1.25

$2.85

18

1-805004

Washer-Lock 1/4 Heavy

$1.55

19

1-932195

Element, filter Primary

product not available CALL FOR AVAILABILITY

$1.00

20

1-955806

Bracket, air cleaner mount

product not available CALL FOR AVAILABILITY

$1.00

21

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

22

3296-29

Nut-Nyloc 5/16-18

$2.72

24

1-955805

Cleaner, remote air w/filter

product not available CALL FOR AVAILABILITY

$1.00

25

1-643009

CLAMP-HOSE

$14.29

26

1-643083

HOSE-AIRCLEANER

$63.79

27

1-643084

HOSE-INLET, AIR

$24.19

28

1-633853

BELT,ALTERNATOR DRIVE

$20.89

29

1-633841

SHEAVE W/HUB

$75.99

30

1-807259

KEY

$2.46

31

1-633881

ALTERNATOR-37 AMP

$713.99

32

1-633882

SHEAVE-ALTERNATOR

$73.69

33

3257-24

KEY-WOODRUFF

$5.75

34

322-3

Screw-HH 5/16-18 x 3/4

$1.11

35

1-632835-03

BRACKET-ALTERNATOR

product not available CALL FOR AVAILABILITY

$0.01

36

1-633838-03

ARM-TENSION, ALTERNATOR

product not available CALL FOR AVAILABILITY

$0.01

37

32128-20

Nut-Whizlock 5/16-18

$1.39

38

3256-26

Washer-1/2 SAE

$0.59

39

1-633839

SPACER

product not available CALL FOR AVAILABILITY

$0.01

40

325-17

Screw-HH 1/2-13 x 4

$6.83

41

3296-23

Nut-Nyloc 1/2-13

$1.25

42

1-643164

CAP-TANK, OVERFLOW

$19.79

43

1-643163

TANK-OVERFLOW

$89.99

44

109-2669

Hose-.25 ID x 22"

$12.09

45

46-6550

FITTING-ELBOW, 90 DEG

$38.49

46

46-6560

BUSHING

$6.47

47

103-2603-03

BRACKET-BOTTLE

$21.99

48

321-2

Screw-HH 1/4-20 x 1/2

$3.71

49

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

50

1-643129

HOSE

product not available CALL FOR AVAILABILITY

$0.01

51

1-633851

EXTENSION-CRANKSHAFT

$259.99

52

1-805005

Washer-Lock 5/16 Heavy

$1.55

53

33014-00

Nut-Hex M8-1.25

$0.59

54

1-633869

FAN-PUMP, COOLING

$28.59

55

3256-22

Washer-1/4 SAE

$0.59

56

1-809095

SCREW-HSH

$2.85

57

103-0098

SHROUD-FAN, HYD

$178.99

58

3296-2

Nut-Nyloc #10-24

$2.46

59

3256-14

WASHER-FLAT

$0.59

60

3290-500

Screw-PPH #10-24 x 5/8

$1.55

61

1-643143-03

SHIELD-LH

product not available CALL FOR AVAILABILITY

$0.01

62

1-644316

RH SHIELD ASM

product not available CALL FOR AVAILABILITY

$0.01

63

321-4

Screw-HH 1/4-20 x 3/4

$1.39

64

32128-33

Nut-Whizlock 1/4-20

$0.97

65

1-809026

SCRW,HHCS M8-1.25X16

product not available CALL FOR AVAILABILITY

$1.00

66

103-0665

CLUTCH ASM

$453.99

67

1-303428

ELBOW-90 DEG

$13.19

68

1-643167

NIPPLE

$14.29

69

3290-378

Tie-Cable

$1.11

70

3256-3

Washer-5/16 Std

$0.74

71

1-613235

WASHER

$1.94

72

1-633543-03

STRAP-CLUTCH, BRAKE

$15.39

73

1-633545

SPACER

$3.11

74

1-633630

Grommet

$6.23

75

1-403124

ELBOW-90 DEG

$25.29

76

322-38

SCREW-HH

$7.31

77

1-643008

SPACER-ANCHOR, CLUTCH

$15.39

78

1-643007-03

SPACER-ENGINE

product not available CALL FOR AVAILABILITY

$0.01

79

33114-030

SCREW-HH

$1.81

80

1-603610

Washer-Spring Disc 7/16

$5.75

81

48-7570

SCREW-HH

$5.75

82

94-3652

COVER ASM

$83.99

83

1-643283

LATCH-CLEANER, AIR

$21.99

84

87-9400

VALVE-VACUATOR

$12.09



1-643158

REGULATOR,ALTERNATOR

$168.99



1-643159

BRUSHES,ALTERNATOR

$82.99



1-643160

Bearing, Alternator

product not available CALL FOR AVAILABILITY

$0.01
