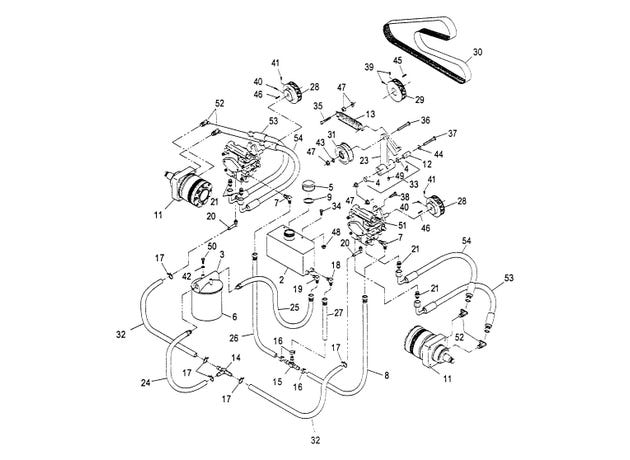

eXmark MN LZ22LKA523 Hydraulic Group

1

1-403102

HOSE-PRESSURE, HIGH

$106.99

2

1-512166-03

TANK,HYDRAULIC OIL

product not available CALL FOR AVAILABILITY

$0.01

3

1-513006

FILTER-HEAD

$78.99

4

1-513034

SLEEVE-BEARING

$8.15

5

1-513167

CAP

$27.49

6

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

7

1-513840

FITTING-90 DEG

$27.49

8

1-522217

LOW PRESSURE HOSE ASM*

$39.59

9

1-523103

GASKET-CAP, TANK

$7.07

10

1-523222

FITTING-HYD, 45 DEG

$64.89

11

1-523328

MOTOR-WHEEL

$1,207.99

12

1-603384

BUSHING-PIVOT, IDLER

$14.29

13

1-603413

SPRING-EXTENSION

$24.19

14

1-603721

FITTING-TEE, HOSE

$23.09

15

1-603722

FITTING-TEE, HOSE

$23.09

16

1-603826

CLAMP-HOSE

$1.55

17

1-603827

CLAMP-HOSE

$2.98

18

1-603987

FITTING-ELBOW

$19.79

19

1-603988

FITTING-ELBOW

$20.89

20

1-603989

FITTING

$37.39

21

1-603990

Adapter-Straight

$18.69

22

119-7827

HYD HOSE ASM

$80.29

24

1-632281

HOSE ASM*

$38.49

25

1-632282

HOSE ASM*

$67.09

26

1-632285

HOSE ASM

$43.99

27

1-632286

HOSE ASM

$27.49

28

1-633568

SHEAVE

$88.99

29

1-633567

SHEAVE

$104.99

30

1-633569-SL

BELT,POLY-V 5K WITH SLEEVE

$39.59

31

1-633167

SHEAVE-IDLER

$37.39

32

1-633335

HOSE-PRESSURE, LOW

$34.09

33

1-634277

BEARING ARM ASM

$153.99

34

321-4

Screw-HH 1/4-20 x 3/4

$1.39

35

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

36

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

37

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

38

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

39

1-803022

Setscrew-5/16-18 x 5/8

$2.98

40

30-1710

Setscrew-5/16-18 x 1

$12.09

41

1-803050

Setscrew-5/16-18 x 3/4

$2.98

42

1-805004

Washer-Lock 1/4 Heavy

$1.55

43

3256-3

Washer-5/16 Std

$0.74

44

3256-4

Washer-3/8 Std

$1.94

45

13-2840

Key-Machine 1/4 x 1/4 x 1 1/4

$1.94

46

1-807272

Key-5mm x 5mm x 25mm

$6.35

47

3290-357

Nut-Whizlock 3/8-16

$1.11

48

32128-33

Nut-Whizlock 1/4-20

$0.97

49

302-40

Zerk-90° 1/4-28

$3.59

50

321-3

Screw-HH 1/4-20 x 5/8

$1.55

51

103-2766

PUMP,HYDRO

$1,377.99

52

1-633786

FITTING-90 DEG

$52.79

53

1-633775

HOSE-LOWER*

$82.49

54

1-633774

HOSE-UPPER*

$82.49



1-000139

BEARING KIT

product not available CALL FOR AVAILABILITY

$1.00



1-523541

ELEMENT-FILTER, WINTER

$50.59



103-6994

SEAL KIT

$289.99



1-603992

O-Ring-37 Flare #8

$2.98



1-603919

O-Ring-SAE #10

$3.83



237-42

O-RING

$3.24



1-603923

O-RING

$2.98



1-603920

O-Ring-SAE #8

$3.95



80-6130

SEAL KIT

$75.99



1-633777

HOSE-LOWER*

$95.99



103-3734

HYD Hose ASM

$91.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
