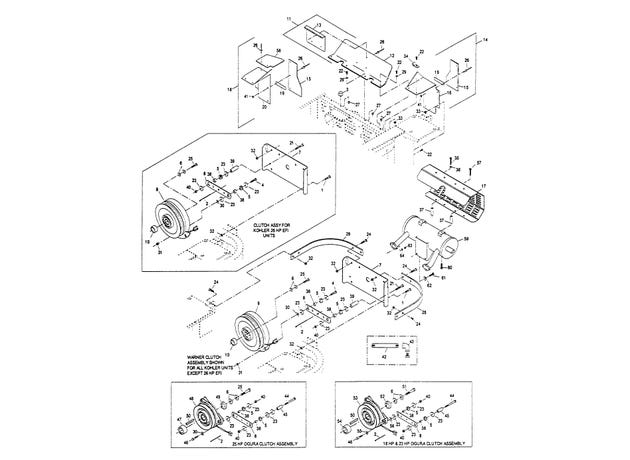

eXmark MN LZ22LKA523 Kohler Air-Cooled Engine Deck Group

2

3290-378

Tie-Cable

$1.11

3

1-523420

Bumper

$15.39

4

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

5

1-633630

Grommet

$6.23

6

1-603610

Washer-Spring Disc 7/16

$5.75

7

1-633615-03

GUARD-CLUTCH

$76.99

8

1-633543-03

STRAP-CLUTCH, BRAKE

$15.39

9

103-0662

CLUTCH ASM

$468.99

10

1-633453

SPACER-CLUTCH

$19.79

11

1-644276

SHIELD ASM

$98.99

12

103-1308

SHIELD-ENGINE

$31.89

13

1-633300

Shield, lift

product not available CALL FOR AVAILABILITY

$1.00

15

1-633301

SHIELD-ENGINE

$16.49

16

1-634796

LH SHIELD ASM

product not available CALL FOR AVAILABILITY

$0.01

17

1-643313-03

GUARD-MUFFLER

$95.99

19

1-523285

CLIP-BAFFLE, REAR

$12.09

20

1-644316

RH SHIELD ASM

product not available CALL FOR AVAILABILITY

$0.01

21

322-19

Screw-HH 5/16-18 x 4

$7.19

22

321-4

Screw-HH 1/4-20 x 3/4

$1.39

23

1-613235

WASHER

$1.94

24

323-6

Screw-HH 3/8-16 x 1

$2.98

25

3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07

26

1-803035

Rivet 3/16 x 1/4

$1.55

27

3296-42

Nut-Nyloc 1/4-20

$0.59

28

1-643264-03

BRACKET-GUARD, TOP

product not available CALL FOR AVAILABILITY

$0.01

29

3256-2

Washer-1/4 Std

$0.59

30

3256-3

Washer-5/16 Std

$0.74

31

32128-20

Nut-Whizlock 5/16-18

$1.39

32

3290-357

Nut-Whizlock 3/8-16

$1.11

33

32128-33

Nut-Whizlock 1/4-20

$0.97

34

1-633396

Clip-Loom 5/8

$5.75

35

1-809076

SCREW

$2.98

36

1-323235

WASHER-BELLVILLE

$5.75

37

1-323236

SPACER

$8.51

38

1-633545

SPACER

$3.11

39

1-633988

SPACER-ANCHOR, CLUTCH

$12.09

40

3296-29

Nut-Nyloc 5/16-18

$2.72

41

3256-63

Washer

$1.25

42

1-543232

NIPPLE

$19.79

43

1-303428

ELBOW-90 DEG

$13.19

44

322-14

Screw-HH 5/16-18 x 3

$3.11

45

1-633082

Bushing

$12.09

46

322-7

SCREW-HH

$1.25

47

1-643179

Spacer, clutch

$37.39

48

103-0663

KIT,CLUTCH OGURA-MS200

$593.99

49

1-643180

Keeper, clutch

$18.65

50

1-807261

Key, 1/4 x 1/4 x 2.0

$5.51

51

3212-12

Screw-HH 7/16-20 x 3

$3.47

52

1-643182

Keeper, Clutch

product not available CALL FOR AVAILABILITY

$0.01

54

1-643183

Spacer, clutch

$24.19

55

3256-23

Washer-5/16 SAE

$2.59

56

1-643181

Washer, Spacer

product not available CALL FOR AVAILABILITY

$0.01

57

1-809108

SCREW-HWH

$7.07

58

1-643315

BAFFLE-COOLER, ENGINE

$14.29

59

103-7483

Kit, Muffler Kohler (28HP EFI)

$279.99

60

9266934

Screw-HWH 5/16 x 1/2 TF

$9.95

61

324-2

Screw-HH 7/16-14 x 3/4

$5.27

62

3253-6

Washer-Lock 7/16

$0.59

63

33014-00

Nut-Hex M8-1.25

$0.59

64

1-805005

Washer-Lock 5/16 Heavy

$1.55



1-633179

Spacer

$19.79



103-0665

CLUTCH ASM

$453.99



103-0660

KIT,CLUTCH OGURA-MS200

$515.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
