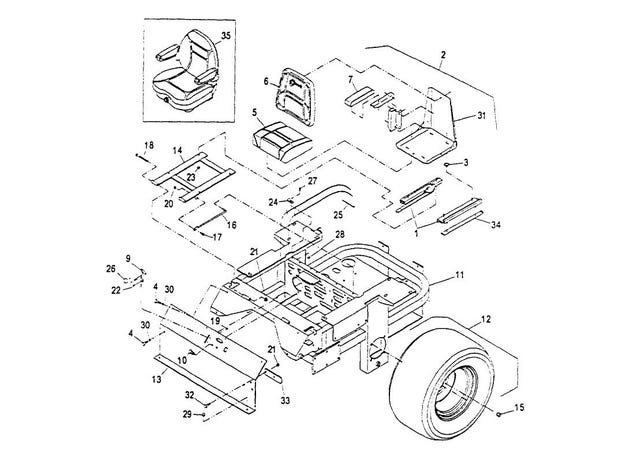

eXmark MN LZ22LKA523 Main Frame Group

1

1-643255

TRACK-SEAT

$190.99

2

103-3524

Seat

$602.99

3

1-543401

Spacer-Seat Track

$5.39

4

322-3

Screw-HH 5/16-18 x 3/4

$1.11

5

103-3521

CUSHION,SEAT BOTTOM

$227.99

6

103-3520

Seat, Back

$206.99

7

103-0292

Cushion, Armrest RH

$86.99

8

103-0291

Cushion, Armrest LH

$86.99

9

1-633696

THROTTLE CABLE ASM

$63.79

10

1-603336

CONTROL-CHOKE

$41.79

11

103-2175

KIT, MAIN FRAME

$1,716.99

12

109-8972

WHEEL AND TIRE ASM

$410.99

13

1-633965-03

Front, Console

product not available CALL FOR AVAILABILITY

$1.00

14

107-3052-03

SEAT SUPPORT FRAME ASM

$292.99

15

242-50

Nut-Lug 1/2-20

$2.11

16

1-633293

ROD-HOLDUP, SEAT

$15.39

17

322-5

Screw-HH 5/16-18 x 1

$0.74

18

323-39

Screw-HH 3/8-16 x 5

$12.09

19

3296-2

Nut-Nyloc #10-24

$2.46

20

3296-29

Nut-Nyloc 5/16-18

$2.72

21

3296-39

Nut-Nyloc 3/8-16

$2.98

22

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

23

32128-20

Nut-Whizlock 5/16-18

$1.39

24

1-513762

Clip-Loom 1/2

$8.51

25

3290-378

Tie-Cable

$1.11

26

1-513592

Knob-Ball Red

$7.07

27

321-4

Screw-HH 1/4-20 x 3/4

$1.39

28

32128-33

Nut-Whizlock 1/4-20

$0.97

29

1-513658

BUMPER

$7.07

30

3256-23

Washer-5/16 SAE

$2.59

31

1-633859

FRAME-SEAT

$168.99

32

323-6

Screw-HH 3/8-16 x 1

$2.98

33

1-633964-03

STOP-BRAKE, PARK

$13.19

34

1-633872-03

STOP-SEAT

$49.49

35

1-633821

SEAT, SUSPENSION

product not available CALL FOR AVAILABILITY

$0.01



1-653158

WHEEL

$159.99



116-5363

Tire (Multi-Trac 23 X 9.50-12)

$195.99



1-653010

WHEEL AND TIRE ASM

$443.99



109-3156

RIM

$213.99



1-633993

TIRE

$264.99



1-631845

PAN ASM

product not available CALL FOR AVAILABILITY

$0.01



1-631844

ARM KIT ASM

$449.99



1-631843

KIT-BOOT

$168.53



1-631842

KIT-PAD, ARMREST

$193.99



1-631846

KIT-DAMPER

product not available CALL FOR AVAILABILITY

$1.00



1-631847

KIT-ROLLER

product not available CALL FOR AVAILABILITY

$0.01



1-631848

KIT-SPRING & CABLE

$141.99



1-631849

KIT-KNOB & SHAFT

$166.41



1-643281

SWITCH-SEAT

$58.29
