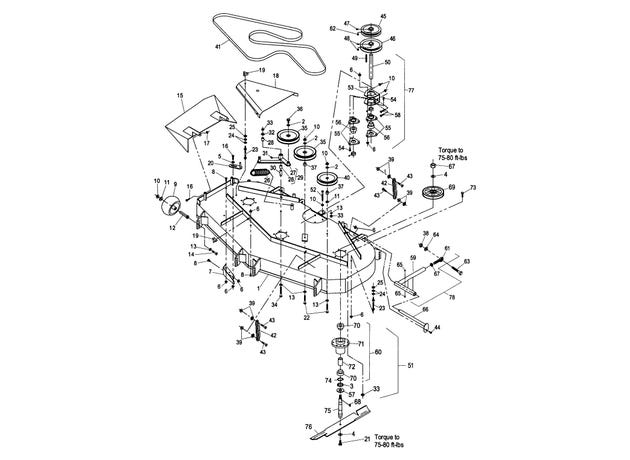

eXmark MN LZ25KC604 52" Deck Group

1

1-634536

Deck weldment w/decals

$2,143.68

2

3256-24

Washer-3/8 SAE

$0.83

3

1-323533

SPACER-PULLEY/BEARING

$5.75

4

1-513208

Washer-Spring Disc 5/8

$9.95

5

1-303334

Washer-Spring Disc 5/16

$2.98

6

32128-20

Nut-Whizlock 5/16-18

$1.39

7

1-602913-01

Baffle, Discharge

$47.29

8

322-2

Screw-HH 5/16-18 x 5/8

$2.98

9

1-603299

ROLLER-SCALP, ANTI

$23.09

10

3290-357

Nut-Whizlock 3/8-16

$1.11

11

1-373034

Washer

$3.83

12

1-603602

BUSHING,ROLLER

$24.19

13

98-5975

Washer-Spring Disc 3/8

$3.71

14

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

15

1-602571-01

Chute, discharge

$169.99

16

322-5

Screw-HH 5/16-18 x 1

$0.74

17

3296-29

Nut-Nyloc 5/16-18

$2.72

18

1-633357-01

Shield, Belt 52"

$87.99

19

1-323385

Knob-3 Prong

$5.75

20

1-322110

GUIDE-BELT

$13.19

21

103-1026

SCREW-CAP

$5.75

22

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

23

1-303537

STUD-SHIELD, BELT (SHORT)

$7.07

24

3256-3

Washer-5/16 Std

$0.74

25

1-323417

Washer-Belt Shield

$3.47

26

116-6317

SPRING-EXTENSION

$28.59

28

1-513034

SLEEVE-BEARING

$8.15

29

103-5693

Kit, Idler Arm (103-6528-01) W/Bearings

$128.99

30

1-603044

BUSHING

$15.39

31

302-40

Zerk-90° 1/4-28

$3.59

32

3256-4

Washer-3/8 Std

$1.94

33

3296-39

Nut-Nyloc 3/8-16

$2.98

34

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

35

126-7685

IDLER-PULLEY

$63.79

36

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

37

1-633456

BUSHING-IDLER

$5.39

38

3217-11

Nut-Hex 5/8-11

$3.95

39

32128-37

Nut-Whizlock 7/16-14

$4.67

40

1-603805

PULLEY-IDLER

$56.09

41

1-633366-SL

BELT,BLADE DRIVE 52 WITH SLEEVE

$107.99

42

1-633447

CHAIN-LIFT, DECK

$11.99

43

1-800811

SCREW-CAP, HH

$12.09

44

322-3

Screw-HH 5/16-18 x 3/4

$1.11

45

1-403160

SHEAVE

$82.49

46

1-633010

Pulley, split sheave 6.30 OD

$75.89

47

30-1710

Setscrew-5/16-18 x 1

$12.09

48

1-803022

Setscrew-5/16-18 x 5/8

$2.98

49

1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.75

50

1-633012

Jackshaft, deck drive

$75.89

51

1-634620

Cutter housing complete

$430.99

52

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

53

1-633014-01

Bracket, jackshaft

$52.79

54

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

55

1-513013

HOUSING-FLANGE

$5.75

56

1-513012

Bearing w/lock collar and ss

$111.99

57

1-633573

GUARD-BEARING, BOTTOM

$5.75

58

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

59

109-1181

STRUT-DECK

$95.99

61

1-633029

Balljoint

$63.79

62

1-803050

Setscrew-5/16-18 x 3/4

$2.98

63

327-11

Screw-HH 5/8-11 x 5

$12.09

64

3253-8

Washer-Lock 5/8

$0.83

65

302-19

Zerk-1/4-28 Str

$2.85

66

1-632199-01

PIN-STRUT

$36.29

67

3219-6

Nut-Hex 5/8-18

$4.43

68

3257-32

KEY-WOODRUFF

$2.98

69

1-633701

Sheave, blade drive

$75.99

70

1-513016

BEARING

$82.49

71

103-8280

Kit, Cutter Housing

$247.99

72

1-323528

SPACER-BEARING

$9.59

73

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

74

32120-8

RING-SNAP

$3.24

75

1-633574

Spindle

$93.99

76

103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99

77

1-634546

Jackshaft S/A

$472.99

78

103-1081

STRUT ASM

$245.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



1-850337

Exmark red touch up spray paint

$31.89



MK523

Mulch kit

product not available CALL FOR AVAILABILITY

$1.00
