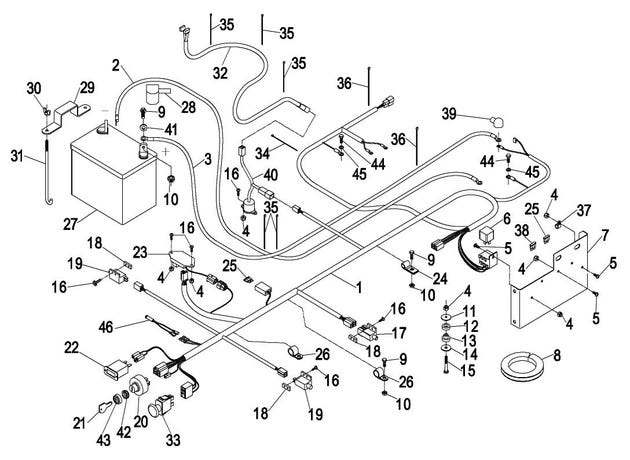

eXmark MN LZ23LKA604 Kohler 26 HP EFI Electrical Group

1

103-0263

Harness-wiring

product not available CALL FOR AVAILABILITY

$0.01

2

1-633307

Cable-Ground (-)

$41.79

3

109-7608

ASM,POSITIVE BATTERY CABLE

$45.09

4

3296-2

Nut-Nyloc #10-24

$2.46

5

1-803071

SCREW

$1.55

6

1-643275

Relay-12VDC 40 Amp

$24.19

7

1-643257-03

PANEL-FUSES & RELAYS

$35.19

8

1-643246

TRIMLOCK

$13.19

9

321-4

Screw-HH 1/4-20 x 3/4

$1.39

10

32128-33

Nut-Whizlock 1/4-20

$0.97

11

1-805518

WASHER

$1.42

12

1-643325

RINGMOUNT-VIBRATION

product not available CALL FOR AVAILABILITY

$0.01

13

1-643326

Mount-Bushing,Vibration

$6.71

14

1-805519

WASHER

$1.42

15

1-803074

SCREW

$6.71

16

3290-500

Screw-PPH #10-24 x 5/8

$1.55

17

1-633111

Switch

$21.99

18

1-633181

Plate-Tapped

$7.07

19

1-513051

Switch-N.O.

$19.79

20

109-4736

Asm, Switch W/Nut

$42.89

21

1-603511

Key-Ignition

$2.72

22

120-2244

HOURMETER

$71.49

23

100-6186

MODULE-DELAY, SEAT

$45.09

24

1-513762

Clip-Loom 1/2

$8.51

26

1-633396

Clip-Loom 5/8

$5.75

27

103-0293

Battery, 12 volt

product not available CALL FOR AVAILABILITY

$0.01

28

109-2407

INSULATOR-BATTERY

$5.75

29

1-633652-03

STRAP-HOLDDOWN

$20.89

30

1-543792

Wingnut-Nyloc 1/4-20

$7.07

31

1-633651

BOLT-HOLDDOWN

$8.75

32

103-1227

HARNESS-WIRING, SEAT

$24.19

33

103-5221

Switch-PTO

$59.39

34

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

35

3290-378

Tie-Cable

$1.11

36

1-643115

TIE-PLASTIC

$3.11

37

1-323229

CLIP-LOOM

$3.23

38

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

39

1-543393

Insulator-Solenoid

$5.75

40

109-4577

KIT,TILT SWITCH ELIMINATION

$5.75

41

3256-2

Washer-1/4 Std

$0.59

42

103-0498

Nut-Ignition

$3.59

43

103-0499

SEAL-SWITCH, IGNITION

$2.98

44

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

45

3256-23

Washer-5/16 SAE

$2.59

46

1-643267

Indicator-Red LED

$25.29
