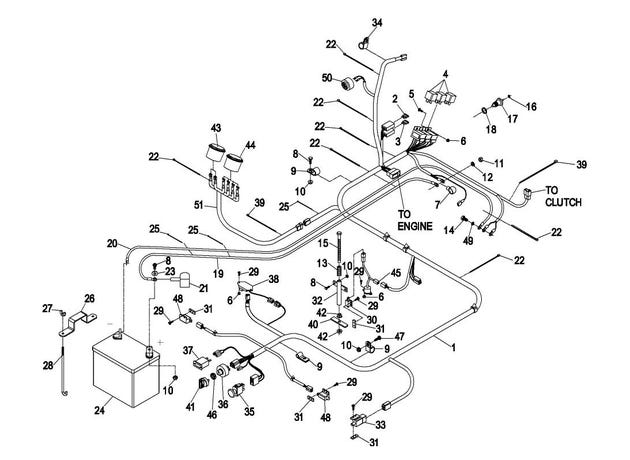

eXmark MN LZ27LKA604 Kawasaki 27 HP Liquid-Cooled Electrical Group

1

103-2869

Harness-wiring

$452.99

2

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

3

1-816003

FUSE-BLADE TYPE, 30 AMP

$5.75

4

1-643275

Relay-12VDC 40 Amp

$24.19

5

1-803071

SCREW

$1.55

6

3296-2

Nut-Nyloc #10-24

$2.46

7

1-543393

Insulator-Solenoid

$5.75

8

321-4

Screw-HH 1/4-20 x 3/4

$1.39

9

1-633396

Clip-Loom 5/8

$5.75

10

32128-33

Nut-Whizlock 1/4-20

$0.97

11

33014-00

Nut-Hex M8-1.25

$0.59

13

1-523415

Spring

$34.09

14

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

15

1-800282

Screw-HH 5/16-18 x 7

$5.75

16

1-643145

TAB

$2.85

17

103-0283

SENDER-TEMPERATURE

$82.49

18

1-643153

WASHER-ALUMINUM

$5.75

19

109-7608

ASM,POSITIVE BATTERY CABLE

$45.09

20

1-633307

Cable-Ground (-)

$41.79

21

109-2407

INSULATOR-BATTERY

$5.75

22

3290-378

Tie-Cable

$1.11

23

3256-2

Washer-1/4 Std

$0.59

24

103-0293

Battery, 12 volt

product not available CALL FOR AVAILABILITY

$0.01

25

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

26

1-633653-03

Hold down,battery

product not available CALL FOR AVAILABILITY

$1.00

27

1-543792

Wingnut-Nyloc 1/4-20

$7.07

28

1-633651

BOLT-HOLDDOWN

$8.75

29

3290-500

Screw-PPH #10-24 x 5/8

$1.55

30

1-513152

Switch-N.C.

$14.29

31

1-633181

Plate-Tapped

$7.07

32

1-522424-03

MOUNT-SPRING, SEAT

$35.19

33

1-633111

Switch

$21.99

34

1-603727

CLIP-LOOM

$3.11

35

103-5221

Switch-PTO

$59.39

36

109-4736

Asm, Switch W/Nut

$42.89

37

120-2244

HOURMETER

$71.49

38

100-6186

MODULE-DELAY, SEAT

$45.09

39

1-643115

TIE-PLASTIC

$3.11

40

1-513180

PLATE-SWITCH, SEAT

$17.59

41

103-2106

Key-Exmark Logo

$5.75

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

1-643037

GAUGE-VOLTMETER

$195.99

44

103-2426

Gauge, Temperature

$259.99

45

109-4577

KIT,TILT SWITCH ELIMINATION

$5.75

46

103-0498

Nut-Ignition

$3.59

47

321-2

Screw-HH 1/4-20 x 1/2

$3.71

48

1-513051

Switch-N.O.

$19.79

49

3256-23

Washer-5/16 SAE

$2.59

50

103-0205

ALARM-TONE, DUAL

$69.29

51

103-5379

Harness, gauge - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01



1-603511

Key-Ignition

$2.72
