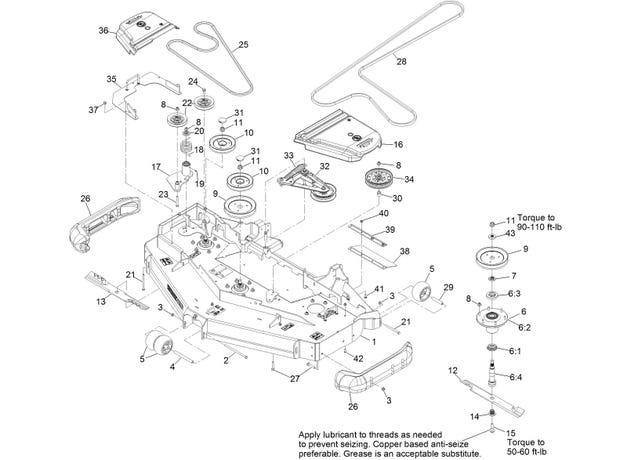

eXmark MN LZX940EKC60RT0 Deck Assembly

#
Part #
Item
Price
Qty
Add
1
116-9839
DECK-RD60 NLZ, W/DECALS
$2,886.99
2
108-5388
SCREW-HH
$16.49
3
104-8301
Nut-Nyloc 3/8-16 Flg
$1.55
4
98-5967
SPACER-WHEEL
$16.49
5
1-603299
ROLLER-SCALP, ANTI
$23.09
6
109-6917
ASM,SPINDLE HOUSING
$357.99
6:1
103-9504
GUARD,BOTTOM
$12.09
6:2
103-9539
ASM,CUTTER HOUSING
$343.99
6:3
109-0916
NUT, SPINDLE 7/8-14
$25.29
6:4
109-6881
SPINDLE,DOUBLE SPLINE
$127.99
7
103-9522
SPACER,SPLINED STEPPED
$7.55
8
109-6658
Nut-Nyloc 3/8-16 Flg
$1.55
9
109-9511
SHEAVE,BLADE DRIVE 7.25
$48.39
10
116-8193
SHEAVE-RD, REVERSE DRIVE
$176.99
11
109-7033
Nut-Flange 5/8-18 Centerlock
$2.98
12
116-5174
BLADE-EXTREME 2, 20.50"

product not available CALL FOR AVAILABILITY

$1.00
12
103-6403-S
SPK, BLADE NOTCHED 20.5 (.94 HOLE)
$32.99
12
103-6388-S
SPK, BLADE LOW LIFT 20.5 (.94 HOLE)
$38.49
13
116-8181
BLADE-EXTREME 2-20.50, RD60

product not available CALL FOR AVAILABILITY

$1.00
13
116-8196
BLADE-LOW LIFT 20.5, RD60

product not available CALL FOR AVAILABILITY

$1.00
14
103-3037
BUSHING,SPLINED
$23.09
15
109-9220
Screw-SEMS 1/2-20 x 2.19
$9.11
16
109-6938
COVER-BELT, LH
$89.99
17
126-0853
IDLER ASM
$226.99
18
108-1921
SPRING-TORSION
$28.59
19
302-19
Zerk-1/4-28 Str
$2.85
20
103-2916
Guard-Top
$2.98
21
323-23
SCREW-HH
$6.11
22
126-1478
SHEAVE
$51.69
23
323-13
Screw-HH 3/8-16 x 2 3/4
$4.19
24
3234-11
Screw-HH FLG 3/8-16 x 1
$4.55
25
116-8187-SL
BELT WITH SLEEVE
$105.99
26
112-1479
SKID-BUMPER, DECK
$87.99
27
3231-7
Bolt-Carriage 3/8-16 x 2 1/4
$7.79
28
125-9371-SL
BELT WITH SLEEVE
$150.99
29
98-7912
TUBE-SPANNER
$13.19
30
1-633456
BUSHING-IDLER
$5.39
31
116-2253
PLUG,BLACK NYLON 1.75
$3.11
32
126-1720
DECK IDLER ASM
$226.99
33
116-6317
SPRING-EXTENSION
$28.59
34
126-9189
IDLER-PULLEY, FLAT 6.00X1.00
$63.79
35
116-8195-01
COVER-DRIVE REVERSE
$159.99
36
116-8190
COVER-BELT, RH
$43.99
37
9266934
Screw-HWH 5/16 x 1/2 TF
$9.95
38
116-8191
GUARD-TIRE
$17.59
39
126-0413-01
SUPPORT-OUTER FLAP
$20.89
40
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
41
3230-16
Bolt-Carriage 5/16-18 x 7/8
$2.98
42
3274-55
Screw-Button Head 5/16-18 x 3/4
$5.75
43
103-9523
SPACER,SPLINED
$8.99
