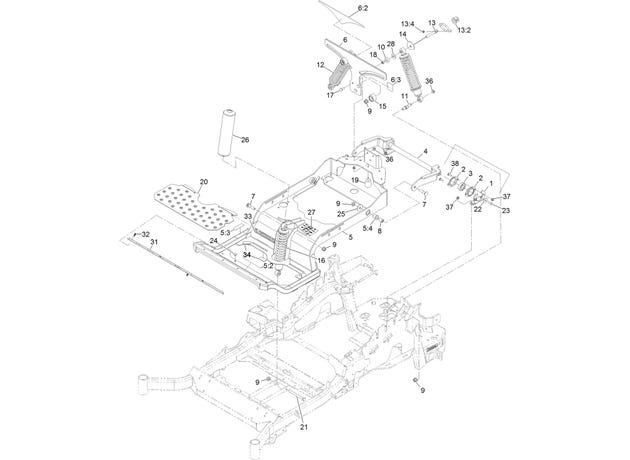

eXmark MN LZX801CKA726C1 Full Suspension Assembly

1

127-6759-03

BRACKET-BEARING

$24.19

2

127-6743

HOUSING-BEARING, FLANGE

$5.75

3

1-653346

Bearing

$72.59

4

127-6754-03

ARM-TRAILING

$226.99

5

132-5057

SUBFRAME ASM

$831.99

5:2

132-0871

DECAL-DANGER

$8.51

5:3

115-9625

DECAL-BRAKE, PARKING

$5.75

5:4

127-6745

BUSHING-FLANGE

$12.09

6

133-1809

BRACKET-MOUNTING

$211.99

6:2

132-5080

DECAL-ADJUSTMENT, RIDE

$52.79

6:3

132-5063

DECAL-LOCK, CAM

$6.23

7

127-6768

SCREW-CARR

$3.83

8

127-6751

SPACER-ALUMINUM

$10.07

9

99-5107

Nut-Lock 1/2-13

$2.20

10

131-8801

SPACER

$9.95

11

131-6348

BOLT-SHOULDER

$16.49

12

133-1815

SHOCK/SPRING ASM

$121.99

13

131-8843

CAM LOCK ASM

$35.19

13:2

107-1644

CAP-LOCK

$39.59

13:4

119-4038

NUT-HEX

$3.23

14

131-4646

PLATE-STOP

$5.75

15

131-4647

KNOB-FRONT

$18.69

16

136-8993

SHOCK/SPRING ASM

$161.99

16

136-1719

SHOCK ASM-FRONT

$121.99

17

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

18

47-7270

BEARING-NEEDLE

$31.89

19

132-5058

BUMPER-RUBBER

$13.19

20

132-5089-01

FLOORPAN

$97.99

21

325-19

Screw-HH 1/2-13 x 5

$9.35

22

105-3048

Washer-Flat

$1.25

23

116-0648

Screw-HH 5/16-18 x 1 W/Patch

$1.68

24

1-513658

BUMPER

$7.07

25

86-1990

Washer

$4.43

26

133-1803

COVER-SHOCK

$13.19

27

114-4465

DECAL-SERVICE AID

$24.19

28

3256-6

Washer

$0.83

31

133-1812

FLOOR MAT

$69.29

32

117-2382

PLUG-PLASTIC

$0.83

33

133-1804

DECAL-LAZER LOGO

$7.79

34

130-0733

PAD-RUBBER

$1.94

36

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

37

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

38

3230-10

Bolt-Carriage 5/16-18 x 7/8

$4.19
