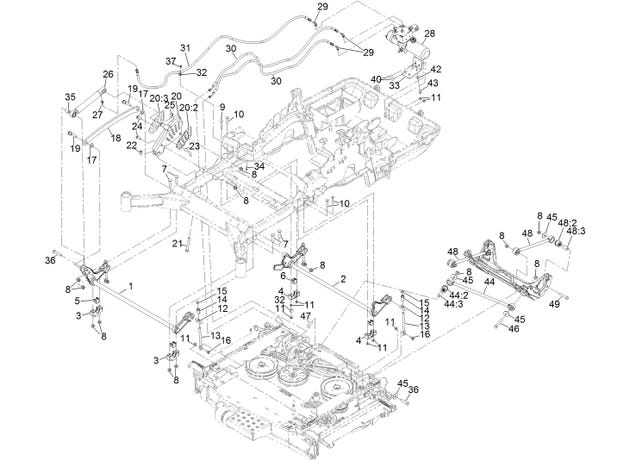

eXmark MN LZX980EKC96RW0 Deck Lift Assembly

1

135-1216-03

LIFT-DECK, FRONT

$363.99

2

116-2645-03

LIFT-DECK, REAR

$363.99

3

109-9409

SUPPORT-BEARING, CROSS SHAFT (FRONT)

$15.39

4

127-0553

SUPPORT-BEARING, CROSS SHAFT (REAR)

$15.39

5

109-9410

BEARING-CROSS SHAFT, FRONT

$5.75

6

109-7173

BEARING-CROSS SHAFT, REAR

$5.75

7

116-1700

Bolt-Carriage 1/2-13 x 2 1/2 spl neck

$5.75

8

99-5107

Nut-Lock 1/2-13

$2.20

9

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

10

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

11

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

12

109-8353

TRUNNION

$15.39

13

109-8007

LINK-ADJUSTER, DECK LIFT

$16.49

14

109-7840

ADJUSTER-LIFT, DECK

$8.51

15

3218-5

Nut-Jam 1/2-13

$1.25

16

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

17

3256-28

Washer-3/4 SAE

$3.95

18

116-0797-03

LINK-LIFT, DECK

$126.99

19

116-2022

Screw-Hex Flange 1/2-13 x 1.90

$9.95

20

126-7866

HOC ASM

$288.99

20:2

126-9275

DECAL-HOC

$14.29

20:3

135-1432

DECAL-HOC, OUTER

$14.29

21

116-0559

Bolt-HH 1/2-13 x 4 tap

$7.07

22

3296-23

Nut-Nyloc 1/2-13

$1.25

23

116-5584

PIN-HOC

$5.63

24

3233-26

SCREW-CARR,SHORTNECK

$2.07

25

32151-91

RING-RETAINING

$2.85

26

126-7841

LIFT CYLINDER ASM

$460.99

26:1

142-2767

KIT, CYL REPAIR

$99.99

27

109-2017

Adapter-Straight

$14.29

28

135-1582

POWER UNIT

$1,502.99

29

109-0760

Adapter-90°

$26.39

30

135-3330

HOSE-HYD, HP

$95.99

31

135-3331

HOSE-HYD, HP

$95.99

32

2412-138

R-CLAMP

product not available CALL FOR AVAILABILITY

$1.00

33

142-2158-03

MOUNT-POWER UNIT

$20.89

34

322-4

Screw-HH 5/16-18 x 7/8

$0.83

35

135-1215

SPACER-PIVOT

$14.29

36

325-11

Screw-HH 1/2-13 x 2 3/4

$3.47

37

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

40

3231-26

Bolt-Carriage 3/8-16 x 1 1/2

$5.87

42

3290-461

Washer-Spring Disc

$5.75

43

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

44

109-5013

PANHARD ROD ASM

$131.99

44:2

109-5009

BUSHING-SUSPENSION, RUBBER

$5.75

45

86-1990

Washer

$4.43

46

325-17

Screw-HH 1/2-13 x 4

$6.83

47

3233-34

Bolt-Carriage 1/2-13 x 2 1/2

$10.79

48

142-3269

ASM, DECK STRUT

$42.89

48:2

135-2466

BUSHING-RUBBER

$8.51

48:3

109-5010

SPACER

$13.19

49

325-12

Screw-HH 1/2-13 x 3

$6.83
