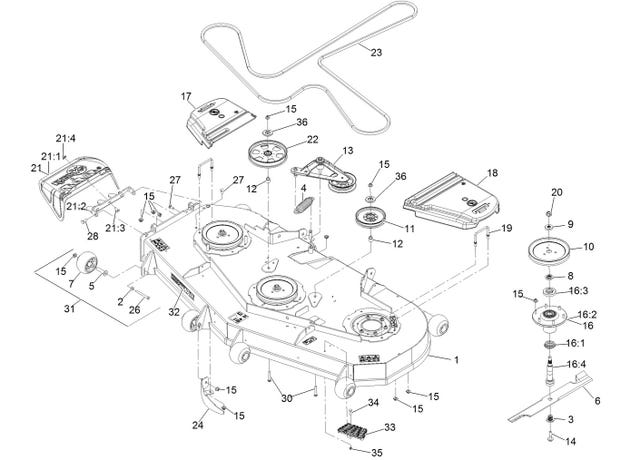

eXmark MN LZX801CKA726C1 Deck Assembly

1

116-1665

ASM,DECK W/DECALS 724

$3,497.99

2

98-5975

Washer-Spring Disc 3/8

$3.71

3

103-3037

BUSHING,SPLINED

$23.09

4

116-6317

SPRING-EXTENSION

$28.59

5

116-8131

AXLE, ROLLER

$13.19

6

116-5171-S

SPK,BLADE-EXTREME 2, 24.50"

$45.09

6

103-6404-S

SPK, BLADE NOTCHED 24.5 (.94 HOLE)

$45.09

6

103-6394-S

SPK, BLADE MULCH 24.5 (.94 HOLE)

$39.59

6

103-6389-S

SPK, BLADE LOW LIFT 24.5 (.94 HOLE)

$39.59

6

103-6384-S

SPK, BLADE SOLID 24.5 (.94 HOLE)

$45.09

7

103-8415

ROLLER-ANTI-SCALP

$24.19

8

103-9522

SPACER,SPLINED STEPPED

$7.55

9

103-9523

SPACER,SPLINED

$8.99

10

109-2180

SHEAVE,BLADE DRIVE 9.00

$54.99

11

126-7685

IDLER-PULLEY

$63.79

12

1-633456

BUSHING-IDLER

$5.39

13

116-3755

DECK IDLER ASM

$234.99

14

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

16

109-6917

ASM,SPINDLE HOUSING

$357.99

16:1

103-9504

GUARD,BOTTOM

$12.09

16:2

103-9539

ASM,CUTTER HOUSING

$343.99

16:3

109-0916

NUT, SPINDLE 7/8-14

$25.29

16:4

109-6881

SPINDLE,DOUBLE SPLINE

$127.99

17

116-0094

COVER-BELT, RH

$80.99

18

109-6938

COVER-BELT, LH

$89.99

19

109-6982

WIREFORM-COVER

$12.09

20

109-7033

Nut-Flange 5/8-18 Centerlock

$2.98

21

109-7188

ASM,DISCHARGE CHUTE

$97.99

21:1

109-2738

CHUTE,DISCHARGE

$75.89

21:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

21:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

22

116-9639

PULLEY-IDLER, FLAT

$88.99

23

135-5777-SL

BELT-V WITH SLEEVE

$153.99

24

116-5834-01

BAFFLE-DOGLEG, LZ72

$78.09

26

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

27

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

28

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

30

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

31

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

32

126-6593

DECAL, 726

$9.11

33

126-4781-03

STEP-DECK

$26.39

34

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

35

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

36

126-8043

SHIELD-DUST

$2.98
