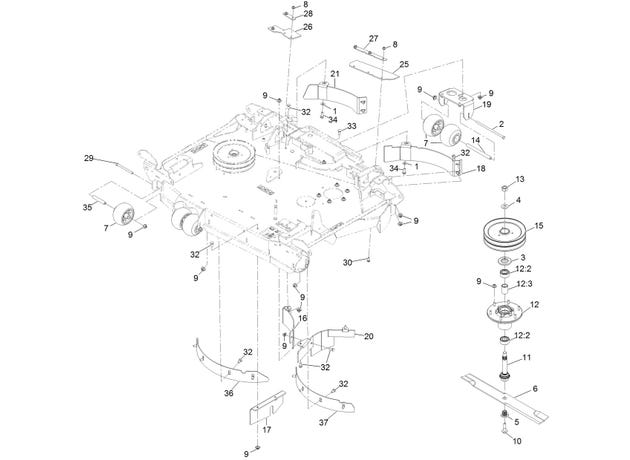

eXmark MN LZX980EKC96RW0 Center Deck Assembly

1

98-5975

Washer-Spring Disc 3/8

$3.71

2

99-7203

SCREW-HH

$11.99

3

103-1330

Guard-Bearing Top

$5.75

4

103-2802

Washer-Spring Disc 3/4

$5.75

5

103-3037

BUSHING,SPLINED

$23.09

6

103-6389

BLADE, LOW LIFT 24.5 (.94 HOLE)

product not available CALL FOR AVAILABILITY

$0.01

7

103-8415

ROLLER-ANTI-SCALP

$24.19

8

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

9

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

10

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

11

116-3341

ASM-SPINDLE AND SEAL

$77.99

12

135-3437

ASM-CUTTER HSG

$156.99

12:2

135-3144

BEARING-3205 TRASHGUARD

$32.99

12:3

135-3440

SPACER-BEARING

$8.99

13

116-7306

NUT-HEX

$3.11

14

126-6115

SPACER-WHEEL

$12.09

15

126-6634

SHEAVE-DOUBLE 96RD

$157.99

16

135-0601-01

BAFFLE-CENTER, REAR (RH)

$61.59

17

135-0603-01

PLATE-BLOCK, FRONT

$28.59

18

135-3462-01

BAFFLE-BLOCK, LH CTR

$78.09

19

135-1036-01

BRACKET-ANTISCALP, REAR

$49.49

20

135-1827-01

BAFFLE-CENTER

$53.89

21

135-3463-01

BAFFLE-BLOCK, RH CTR

$72.59

25

135-2658

FLAP-DISCHARGE

$12.09

26

135-2659

FLAP-DISCHARGE

$7.31

27

135-3760-03

SUPPORT-FLAP

$9.95

28

135-3761-03

SUPPORT-FLAP, RH

$7.07

29

323-38

Screw-HH 3/8-16 x 4 3/4

$12.09

30

3230-16

Bolt-Carriage 5/16-18 x 7/8

$2.98

32

3231-12

BOLT-CARR

$7.07

33

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

126-7140

SPACER-WHEEL, SHORT

$16.49

36

135-2459-01

BAFFLE-DEPTH, LH

$35.19

37

135-2460-01

BAFFLE-DEPTH, RH

$35.19
