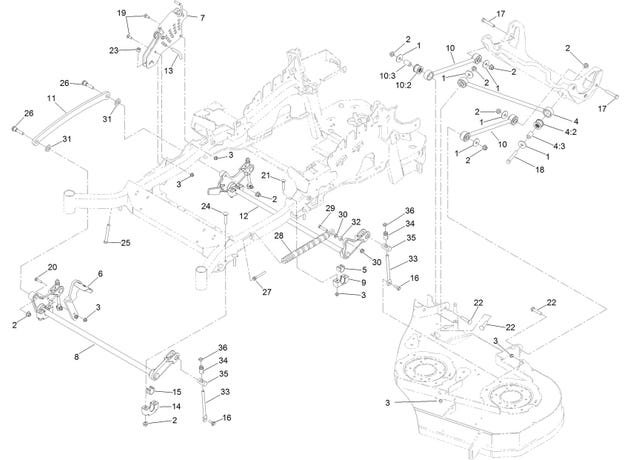

eXmark MN LZX801GKA606A1 Deck Lift Assembly

1

86-1990

Washer

$4.43

2

99-5107

Nut-Lock 1/2-13

$2.20

3

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

4

109-5013

PANHARD ROD ASM

$131.99

5

109-7173

BEARING-CROSS SHAFT, REAR

$5.75

6

116-1919-01

LEVER-FOOT

$91.99

7

109-7438

HOC ASM

$253.99

8

126-2477-03

DECKLIFT-FRONT

$201.99

9

127-0553

SUPPORT-BEARING, CROSS SHAFT (REAR)

$15.39

10

109-7952

DECK STRUT ASM

$134.99

10:2

109-5009

BUSHING-SUSPENSION, RUBBER

$5.75

10:3

109-5010

SPACER

$13.19

11

116-0797-03

LINK-LIFT, DECK

$126.99

12

116-2645-03

LIFT-DECK, REAR

$363.99

13

116-5584

PIN-HOC

$5.63

14

109-9409

SUPPORT-BEARING, CROSS SHAFT (FRONT)

$15.39

15

109-9410

BEARING-CROSS SHAFT, FRONT

$5.75

16

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

17

325-12

Screw-HH 1/2-13 x 3

$6.83

18

325-17

Screw-HH 1/2-13 x 4

$6.83

19

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

20

3231-4

Bolt-Carriage 3/8-16 x 1 1/2

$4.31

21

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

22

3233-34

Bolt-Carriage 1/2-13 x 2 1/2

$10.79

23

3296-23

Nut-Nyloc 1/2-13

$1.25

24

116-1700

Bolt-Carriage 1/2-13 x 2 1/2 spl neck

$5.75

25

116-0559

Bolt-HH 1/2-13 x 4 tap

$7.07

26

116-2022

Screw-Hex Flange 1/2-13 x 1.90

$9.95

27

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

28

116-0000

SPRING-EXTENSION

$126.99

29

109-9065

Screw-HH 7/16-14 x 2

$3.71

30

32128-37

Nut-Whizlock 7/16-14

$4.67

31

3256-28

Washer-3/4 SAE

$3.95

32

116-2695

SPACER

$19.79

33

109-8007

LINK-ADJUSTER, DECK LIFT

$16.49

34

109-7840

ADJUSTER-LIFT, DECK

$8.51

35

109-8353

TRUNNION

$15.39

36

3218-5

Nut-Jam 1/2-13

$1.25
