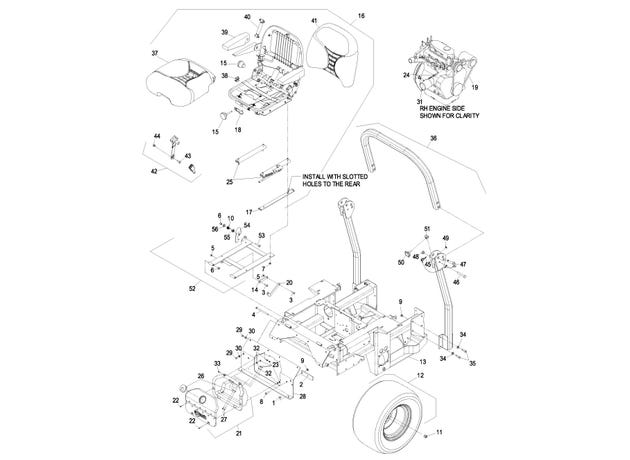

eXmark MN LZ27DD724 Main Frame Group

1

1-513658

BUMPER

$7.07

2

1-633964-03

STOP-BRAKE, PARK

$13.19

3

322-5

Screw-HH 5/16-18 x 1

$0.74

4

323-39

Screw-HH 3/8-16 x 5

$12.09

5

3296-29

Nut-Nyloc 5/16-18

$2.72

6

3296-39

Nut-Nyloc 3/8-16

$2.98

7

32128-20

Nut-Whizlock 5/16-18

$1.39

9

3290-357

Nut-Whizlock 3/8-16

$1.11

10

103-5519

SPRING-TORSION, LATCH

$8.99

11

242-50

Nut-Lug 1/2-20

$2.11

12

103-4962

WHEEL AND TIRE ASM

product not available CALL FOR AVAILABILITY

$0.01

13

103-5890

Asm, Engine Deck (103-4765-03) w/Decals

product not available CALL FOR AVAILABILITY

$0.01

14

103-5161

LINK-STOP, SEAT

$21.99

15

107-1881

Knob Kit

$192.99

16

~LSSEAT

Seat, Suspension

product not available CALL FOR AVAILABILITY

$1.00

17

1-633872-03

STOP-SEAT

$49.49

18

107-1885

Weight Indicator Kit

$56.09

20

103-5181

LINK-SEAT STOP, LOWER

$27.97

21

103-3666

ASM,CUBBY

$152.99

22

32122-28

Screw-Truss HD #10-24 X 1

$3.24

23

3296-2

Nut-Nyloc #10-24

$2.46

24

103-0949

SENDER-TEMPERATURE

$73.69

25

107-1880

Seat Track Kit

$337.99

26

103-3790

Latch, Cubby Door

$46.19

27

3290-500

Screw-PPH #10-24 x 5/8

$1.55

28

103-5254

Asm, Console (103-3665-03) W/Decals

product not available CALL FOR AVAILABILITY

$0.01

29

322-3

Screw-HH 5/16-18 x 3/4

$1.11

30

3256-23

Washer-5/16 SAE

$2.59

32

3256-14

WASHER-FLAT

$0.59

33

1-803075

Screw-Truss Head #10-24 X 3/4

$1.55

34

98-5975

Washer-Spring Disc 3/8

$3.71

35

323-6

Screw-HH 3/8-16 x 1

$2.98

36

103-5597

Kit, XP ROPS Service

product not available CALL FOR AVAILABILITY

$0.01

37

107-1883

Bottom Cushion Kit

$418.99

38

107-1886

Switch Kit

product not available CALL FOR AVAILABILITY

$0.01

39

107-1887

PAD-ARMREST

$105.99

40

107-1884

Shock Absorber Kit

$275.99

41

107-1882

Back Cushion Kit

$422.99

42

103-4469

SEATBELT KIT

$146.99

43

3212-4

Screw-HH 7/16-20 x 1

$3.59

44

3296-38

NUT-LOCK, NI

$2.98

45

107-3155

Hairpin

$7.19

46

325-13

Screw-HH 1/2-13 x 3 1/4

$8.15

47

103-4553

ROPS FOLD PIN ASM

$71.49

48

32128-23

Nut-Hex 1/2-13 Side Lock

$2.33

49

107-3154

Nut-Push 3/8-16

$1.55

50

106-0887

KNOB

$9.35

51

107-3124

CLIP

$5.75

52

103-5537

SEAT FRAME ASM

product not available CALL FOR AVAILABILITY

$0.01

53

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

54

103-5520

CATCH-LATCH, SINGLE

$158.99

55

107-0075

Bushing

$5.75

56

3256-4

Washer-3/8 Std

$1.94



1-633992

WHEEL RIM

product not available CALL FOR AVAILABILITY

$0.01



103-4963

TIRE

$342.99
