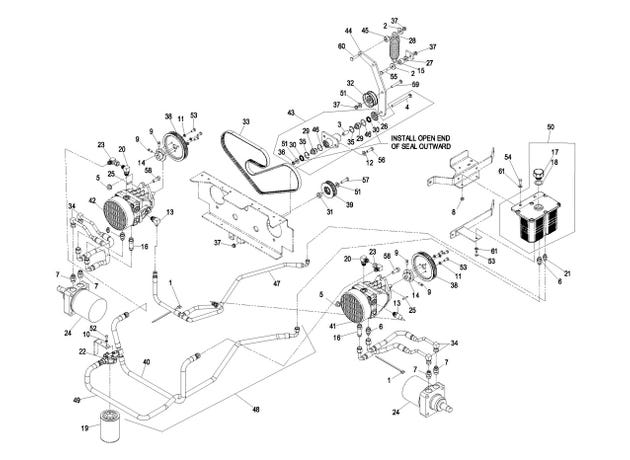

eXmark MN LXS25KD665 Hydraulic Group

1

3290-378

Tie-Cable

$1.11

2

1-373034

Washer

$3.83

3

1-603401

Spacer

$7.55

4

9000784

Bolt-Carriage 3/8-16 x 5

$2.98

5

32128-49

Nut-Whizlock 1/2-13

$2.33

6

1-603990

Adapter-Straight

$18.69

7

1-603991

Adapter-Straight

$21.99

8

32128-20

Nut-Whizlock 5/16-18

$1.39

9

1-803050

Setscrew-5/16-18 x 3/4

$2.98

10

1-805004

Washer-Lock 1/4 Heavy

$1.55

11

1-805005

Washer-Lock 5/16 Heavy

$1.55

12

98-5975

Washer-Spring Disc 3/8

$3.71

13

103-1014

Elbow-90°

$40.69

14

103-1471

HUB-PUMP

$78.99

15

103-1575

SPACER-SPRING, FAN PUMP

$14.29

16

103-1940

Adapter-Straight

$23.09

17

103-7615

Asm, Cap W/Gasket

$30.79

18

142-2792

O-RING

$1.68

19

103-2146

Element-Hydraulic Oil Filter

$64.89

20

103-2153

Elbow-90°

$50.59

21

103-2156

Adapter-Straight

$42.89

22

103-2259

HEAD-FILTER

$110.99

23

103-2315

Elbow-90°

$46.19

24

109-6553

MOTOR-WHEEL

$1,513.99

25

103-2739

Key-5mm x 5mm x 32mm

$2.98

26

103-2916

Guard-Top

$2.98

27

103-3186

SPACER-BRACKET, GUIDE

$23.09

28

116-6317

SPRING-EXTENSION

$28.59

29

103-3504

Bearing-Spherical

$24.19

30

103-3506

Seal-Single Lip

$5.75

31

103-4566

SPACER,LOWER FRAME IDLER

$16.49

32

103-4567

Sheave, Hydro Pump Idler

$56.09

33

103-4569-SL

BELT,PVK 5 X 70.5 WITH SLEEVE

$59.39

34

103-4680

HYD HOSE ASM

$142.99

35

32120-10

Ring-Retaining

$1.68

36

3296-39

Nut-Nyloc 3/8-16

$2.98

37

3290-357

Nut-Whizlock 3/8-16

$1.11

38

103-4712

Sheave, Hydro Pump

$126.99

39

103-4728

ASM,LOWER FRAME IDLER

$131.99

40

103-6498

Hose, Pump Inlet

$86.99

41

109-8909

KIT,LH PUMP-21CC W/.875 SHAFT

$1,582.99

42

109-8408

KIT,RH PUMP-21CC W/.875 SHAFT

$1,582.99

43

109-3250

KIT,PUMP IDLER

$214.99

44

103-7569-03

ARM,PUMP IDLER

$54.99

45

103-7693

Spacer

$15.39

46

106-7159

O-Ring

$1.25

47

109-0087

Asm-Case Drain Hose

$131.99

48

109-0088

Asm-Charge Hose

product not available CALL FOR AVAILABILITY

$0.01

49

109-6904

ASM, HOSE-FILTER INLET

$146.99

50

109-0582

HYDRAULIC TANK ASM

$350.99

51

3256-4

Washer-3/8 Std

$1.94

52

321-3

Screw-HH 1/4-20 x 5/8

$1.55

53

322-3

Screw-HH 5/16-18 x 3/4

$1.11

54

322-4

Screw-HH 5/16-18 x 7/8

$0.83

55

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

56

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

57

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

58

325-5

SCREW-HH

$1.55

59

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

60

3231-5

Bolt-Carriage 3/8-16 x 1 3/4

$1.81

61

3256-23

Washer-5/16 SAE

$2.59



103-1020

O-Ring-37 Flare #6

$1.55



237-42

O-RING

$3.24



1-603920

O-Ring-SAE #8

$3.95



1-603992

O-Ring-37 Flare #8

$2.98



1-603919

O-Ring-SAE #10

$3.83



103-6994

SEAL KIT

$289.99



103-4679

HYD HOSE ASM

$161.99



103-2670

THRUST BEARING KIT

$82.49



127-3867

CYLINDER BLOCK KIT

$190.99



100-6110

OVERHAUL SEAL KIT

$77.99



103-2669

INPUT SHAFT KIT

$592.99



100-6112

PLATE-VALVE

$230.99



103-7488

PUMP-COOLING

$75.89



103-7489

GUARD-PUMP

$82.99
