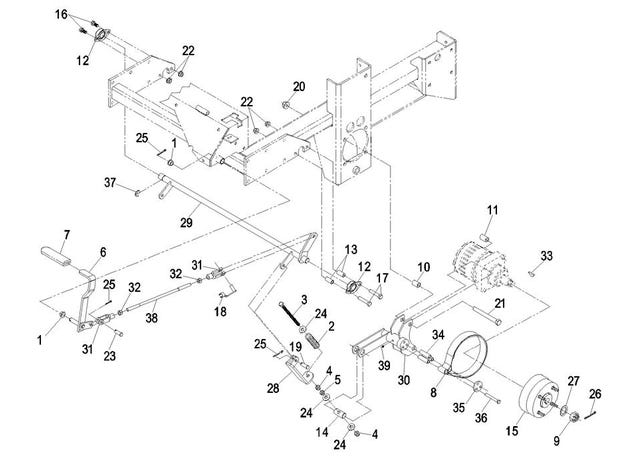

eXmark MN LXS25KD725 Park Brake Group

1

1-513140

Bearing

$7.07

2

109-2230

SPRING-COMPRESSION

$9.95

3

323-58

Bolt-HH 3/8-16 x 6 Tap

$5.99

4

3296-39

Nut-Nyloc 3/8-16

$2.98

5

3218-3

NUT-JAM

$0.74

6

103-0197

BRAKE LEVER AND GRIP ASM

$75.99

7

1-633268

GRIP-LEVER

$15.39

8

103-9761

BAND,BRAKE

$47.29

9

1-809036

Nut-Slotted 1-20

$38.49

10

1-633380

SPACER-WHEEL, SHORT

$8.99

11

1-633382

SPACER-WHEEL, LONG

$9.59

12

1-633102

Bearing-Flanged

$18.69

13

103-0051

SPACER-RETAINER, BRAKE

$7.07

14

1-633144

PIN-TRUNION

$14.29

15

103-0590

WHEEL HUB ASM

$169.99

16

323-4

Screw-HH 3/8-16 x 3/4

$4.31

17

323-10

Screw-HH 3/8-16 x 2

$0.97

18

103-2399

Pin-Clevis Spring 3/8

$7.07

19

1-808284

PIN-CLEVIS

$3.83

20

32128-49

Nut-Whizlock 1/2-13

$2.33

21

325-17

Screw-HH 1/2-13 x 4

$6.83

22

3290-357

Nut-Whizlock 3/8-16

$1.11

23

1-808285

Pin-Clevis 3/8 x 1 1/8

$3.47

24

3256-4

Washer-3/8 Std

$1.94

25

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

26

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

27

1-523157

Washer

$1.81

28

103-1117-03

LINKAGE-BRAKE, LOWER

$41.79

29

103-5243-03

SHAFT-BRAKE

$115.99

30

103-0844-03

BRAKE-NARROW

$169.99

31

1-633131

YOKE-LINKAGE, BRAKE

$16.49

32

3219-3

Nut-Hex 3/8-24

$2.07

33

3257-42

Key-Woodruff 5/16 x 1

$6.71

34

103-0384

SPACER

$2.33

35

103-0374

RETAINER-BAND, BRAKE

$5.75

36

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

37

32151-48

E-Ring

$1.94

38

103-1708

ROD-BRAKE

$8.51

39

1481

FITTING-GREASE

$7.07



1-633926

STUD-WHEEL

$5.03



109-5012

SPACER-WHEEL, LONG

$28.59



109-5011

SPACER-WHEEL, SHORT

$27.49



103-0810-03

BRAKE-WIDE

$227.99



325-22

Screw-HH 1/2-13 x 5 1/2

$9.11
