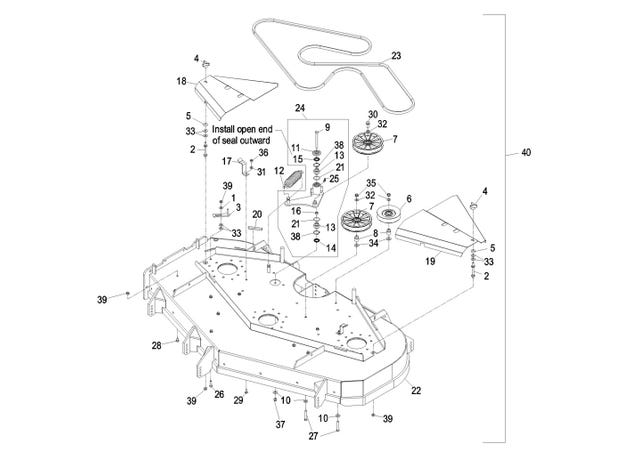

eXmark MN LXS25KD665 Deck Group

#
Part #
Item
Price
Qty
Add
1
1-303334
Washer-Spring Disc 5/16
$2.98
2
1-303537
STUD-SHIELD, BELT (SHORT)
$7.07
3
1-322110
GUIDE-BELT
$13.19
4
1-323385
Knob-3 Prong
$5.75
5
1-323417
Washer-Belt Shield
$3.47
6
1-603805
PULLEY-IDLER
$56.09
7
109-2796
PULLEY,IDLER 6"
$46.19
8
1-633456
BUSHING-IDLER
$5.39
9
98-5961
Screw-HH 3/8-16 x 4 Gr8
$5.75
10
98-5975
Washer-Spring Disc 3/8
$3.71
11
103-2916
Guard-Top
$2.98
12
116-6317
SPRING-EXTENSION
$28.59
13
103-3504
Bearing-Spherical
$24.19
14
103-3505
SEAL-LIP, DOUBLE
$5.75
15
103-3506
Seal-Single Lip
$5.75
16
103-5677
Spacer
$2.98
17
103-8103-01
LATCH,BELT SHIELD
$12.09
18
109-2097
SHIELD, BELT RH 605 W/DECAL
$126.99
19
109-2096
SHIELD, BELT LH 605 W/DECAL
$126.99
20
105-7699
STRIP-SEAL
$10.07
21
106-7159
O-Ring
$1.25
22
109-2100
ASM, DECK 605 W/DECALS
$4,086.99
23
1-633127-SL
BELT,BLADE DRIVE WITH SLEEVE
$116.99
24
109-2095
Kit, Idler Arm W/Bearings
$214.99
25
302-40
Zerk-90° 1/4-28
$3.59
26
322-6
Screw-HH 5/16-18 x 1 1/4
$4.55
27
323-11
Screw-HH 3/8-16 x 2 1/4
$2.59
28
3230-18
Bolt-Carriage 5/16-18 x 5/8
$5.75
29
3230-22
Bolt-Carriage 5/16-18 x 1 Sp
$2.59
30
3234-11
Screw-HH FLG 3/8-16 x 1
$4.55
31
3256-23
Washer-5/16 SAE
$2.59
32
3256-24
Washer-3/8 SAE
$0.83
33
3256-3
Washer-5/16 Std
$0.74
34
3256-4
Washer-3/8 Std
$1.94
35
3290-357
Nut-Whizlock 3/8-16
$1.11
36
3296-29
Nut-Nyloc 5/16-18
$2.72
37
3296-39
Nut-Nyloc 3/8-16
$2.98
38
32120-10
Ring-Retaining
$1.68
39
32128-20
Nut-Whizlock 5/16-18
$1.39
40
109-8525
Asm, Deck Complete 60"

product not available CALL FOR AVAILABILITY

$1.00

109-2103
Asm, Deck W/Decals 66"
$4,358.99

109-2134
SHIELD,BELT LH 725 W/DECAL
$174.99

109-2132
Asm, Shield W/Decal 66" LH
$98.57

109-2135
SHIELD, BELT RH 725 W/DECAL
$174.99

109-2133
Asm, Shield W/Decal 66" RH
$98.57

109-2105
ASM, DECK 725 W/DECALS
$4,904.99

109-5018-SL
BELT,B158.0 WITH SLEEVE
$115.99

1-643052-SL
BELT-V WITH SLEEVE
$205.99

109-8526
Asm, Deck Complete 66"

product not available CALL FOR AVAILABILITY

$1.00

109-8527
Asm, Deck Complete 72"

product not available CALL FOR AVAILABILITY

$1.00
