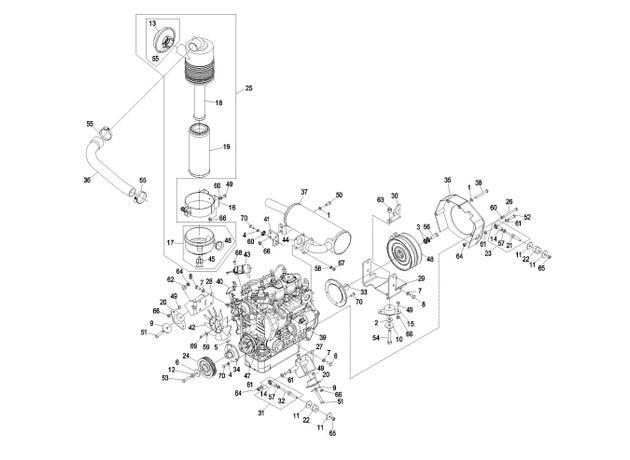

eXmark MN LXS25KD665 Engine Group

1

1-303334

Washer-Spring Disc 5/16

$2.98

2

109-1245

Washer

$24.19

3

1-603610

Washer-Spring Disc 7/16

$5.75

4

1-805005

Washer-Lock 5/16 Heavy

$1.55

5

1-807014

Key-Woodruff 1/4 x 7/8

$3.71

6

1-543610

Washer

$7.07

7

42-9600

Washer-Lock M10

product not available CALL FOR AVAILABILITY

$1.00

8

63-7790

Screw-HH M10-1.25 x 1.25mm

$4.07

9

83-1040

Washer

$4.55

10

86-1990

Washer

$4.43

11

93-6099

Washer

$4.43

12

98-5975

Washer-Spring Disc 3/8

$3.71

13

100-2436

Asm-Hood Air Intake W/Clamp

$71.49

14

103-0608

Balljoint

$34.09

15

103-1022

ISOLATOR-REAR

$83.99

16

103-1058

BRACKET-FILTER, AIR

$102.99

17

103-1060

COVER-FILTER, AIR

$212.99

18

103-1326

FILTER, SAFETY AIR

$37.39

19

103-1327

FILTER-AIR

$35.19

20

103-2613

ISOLATOR-SIDE

$82.49

21

103-3567

LINK,REAR A-T AXIAL

$25.29

22

103-3568

ISOLATOR-LINK

$54.99

23

103-3745

BALL JOINT LINK ASM

$94.99

24

103-4718

SHEAVE,5K 4"PD POLY-V

$130.99

25

103-5178

Asm-Canister Air Filter W/Hood

$253.99

26

33114-090

Screw-HH M8-1.25 x 90mm

$7.43

27

103-7530-03

Wld, Engine Mount

$112.99

28

103-7531-03

Wld, Engine Mount

$85.99

29

103-7541-03

Bracket, Engine Mount

$51.69

30

109-7678-03

Anchor, Clutch

$24.19

31

109-8528

Asm, A-T Link

$47.29

32

103-7544

Link, A-T Axial

$26.39

33

109-9873

SHAFT,KUBOTA 902 STUB

$335.99

34

103-7556

HUB,PUMP DRIVE

$114.99

35

103-7567-03

Wld, Flywheel Cover

$252.99

36

103-7597

HOSE,AIR INTAKE D902(801598)

$103.99

37

109-2855

Kit, Muffler

product not available CALL FOR AVAILABILITY

$0.01

38

33114-080

Screw-HH M8-1.25 x 80mm

$7.07

39

104-3082

Nut-Nyloc M8-1.25 Flg

$3.47

40

108-5922

BRACKET-SUPPORT, THROTTLE

$19.79

41

109-0787-03

Bracket, Muffler Mounting

product not available CALL FOR AVAILABILITY

$0.01

42

109-0789

FAN,COOLING 7"

$46.19

43

109-1211

SOLENOID,FUEL

$658.99

44

109-2783

Gasket, Exhaust

product not available CALL FOR AVAILABILITY

$0.01

45

99-3174

CLIP-CLEANER, AIR

$17.59

46

109-2820

Ejector-Air Cleaner

$59.39

47

109-2901

BELT,KUBOTA 902 ALT

$104.99

48

109-7668

Clutch

product not available CALL FOR AVAILABILITY

$0.01

49

322-3

Screw-HH 5/16-18 x 3/4

$1.11

50

322-5

Screw-HH 5/16-18 x 1

$0.74

51

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

52

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

53

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

54

325-11

Screw-HH 1/2-13 x 2 3/4

$3.47

55

2412-42

Clamp-Hose

$11.99

56

3212-8

Screw-HH 7/16-20 x 2

$7.07

57

3220-3

Nut-Jam 3/8-24

$0.44

58

3253-4

Washer-Lock 5/16

$0.97

59

3256-2

Washer-1/4 Std

$0.59

60

3256-23

Washer-5/16 SAE

$2.59

61

3256-24

Washer-3/8 SAE

$0.83

62

3256-4

Washer-3/8 Std

$1.94

63

3296-23

Nut-Nyloc 1/2-13

$1.25

64

3296-39

Nut-Nyloc 3/8-16

$2.98

65

3296-6

Nut-Nyloc 3/8-24

$1.94

66

32128-20

Nut-Whizlock 5/16-18

$1.39

67

33014-00

Nut-Hex M8-1.25

$0.59

68

33113-012

Screw-HH M6-1 x 12mm

$1.11

69

33113-020

Screw-HH M6-1 x 12mm

$0.59

70

33114-020

SCREW-HH

$0.83
