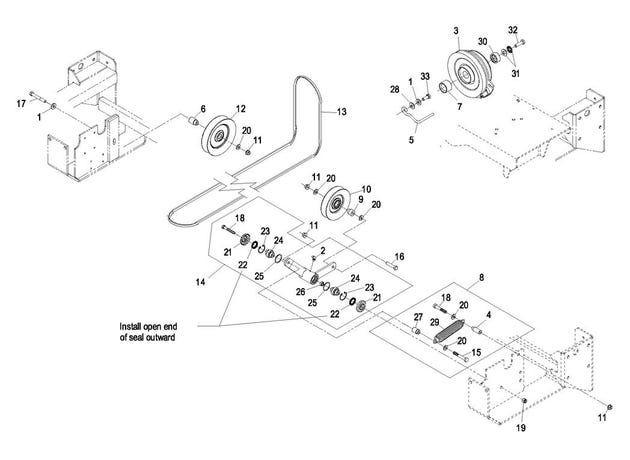

eXmark MN LXS29LKA725 Engine Deck Group

1

98-5975

Washer-Spring Disc 3/8

$3.71

2

302-40

Zerk-90° 1/4-28

$3.59

3

109-7666

SPOT BRAKE CLUTCH KIT

$653.99

4

109-3141

Spacer, Spring Mount

$13.19

5

52-4780

ROD-BELT

$15.39

6

103-2627

Bushing-Idler

$3.83

7

103-0114

SPACER-CLUTCH

$34.09

8

109-3766

Kit, Mule Idler Spring

$102.99

9

1-603496

BUSHING-IDLER

$7.91

10

1-603805

PULLEY-IDLER

$56.09

11

3290-357

Nut-Whizlock 3/8-16

$1.11

12

1-633166

PULLEY-IDLER

$58.29

13

103-6506-SL

BELT-V B 118.75 WITH SLEEVE

$102.99

14

103-5695

Kit, Idler Arm W/Bearings

$115.99

15

323-10

Screw-HH 3/8-16 x 2

$0.97

16

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

17

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

18

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

19

3296-39

Nut-Nyloc 3/8-16

$2.98

20

3256-24

Washer-3/8 SAE

$0.83

21

103-2916

Guard-Top

$2.98

22

103-3506

Seal-Single Lip

$5.75

23

32120-10

Ring-Retaining

$1.68

24

103-3504

Bearing-Spherical

$24.19

25

106-7159

O-Ring

$1.25

26

103-5677

Spacer

$2.98

27

1-633456

BUSHING-IDLER

$5.39

28

3256-4

Washer-3/8 Std

$1.94

29

116-6316

SPRING-EXTENSION

$23.09

30

103-0152

KEEPER-CLUTCH

$13.19

31

1-603610

Washer-Spring Disc 7/16

$5.75

32

33115-035

Screw-HH M10-1.5 x 25mm

$3.23

33

33115-025

Screw-HH M10-1.5 x 35mm

$2.07



103-3012

Kit, Brake Pole Module

$128.99
