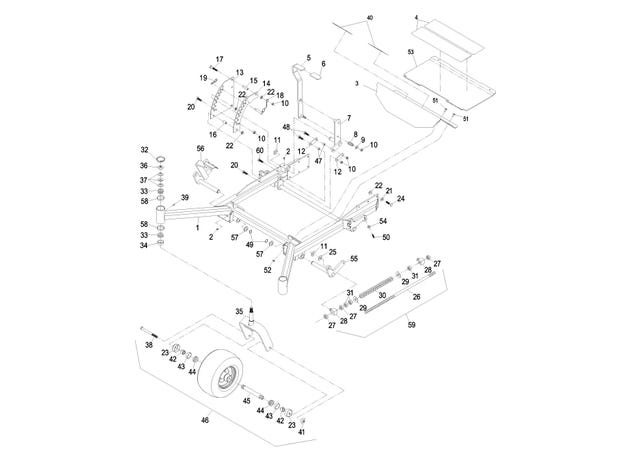

eXmark MN LZ31BV724 Front Frame Group

1

103-5839

Asm, Front Frame 60"

$1,801.99

2

302-19

Zerk-1/4-28 Str

$2.85

3

103-3527

Asm, Floorpan (103-3242-01) W/Pads and Decals

product not available CALL FOR AVAILABILITY

$0.01

4

1-633553

PAD-ANTISKID

$13.19

5

103-2084

LIFT LEVER/GRIP ASM

$79.19

6

1-633295

GRIP-LEVER, LIFT

$8.51

7

103-2064-03

ARM-LIFT, DECK

$78.09

8

1-633325

SPRING-COMPRESSION

$5.75

9

3256-24

Washer-3/8 SAE

$0.83

10

3296-39

Nut-Nyloc 3/8-16

$2.98

11

32151-103

E-Ring

$3.47

12

1-633068

ARM-LIFT, DECK

$12.09

13

1-633889-01

PLATE-LIFT, DECK

$73.69

14

1-632899-01

PLATE-LIFT, DECK

product not available CALL FOR AVAILABILITY

$0.01

15

1-633082

Bushing

$12.09

16

1-633080

Spacer

$11.99

17

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

18

1-633097

PIN-HITCH (W/LANYARD)

$24.19

19

1-806005

Hairpin-Cotter

$2.98

20

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

21

98-5975

Washer-Spring Disc 3/8

$3.71

22

3290-357

Nut-Whizlock 3/8-16

$1.11

23

103-2768

Guard-Seal

$3.95

24

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

25

3256-29

Washer-7/8 SAE

$3.11

26

1-633096

ROD-LIFT, DECK

$24.19

27

3217-11

Nut-Hex 5/8-11

$3.95

28

1-633441

SWIVEL-DECK MOUNT, REAR

$27.49

29

3256-7

Washer-5/8 Std

$1.94

30

1-643015

SPRING-SUPPORT, DECK

$42.89

31

3218-6

Nut-Jam 5/8-11

$7.31

32

103-4882

CAP-GREASE

$8.51

33

1-543509

Cone-Bearing Tapered Roller

$14.29

34

1-543511

Seal-Grease

$12.09

35

116-8888

CASTER-KIT

$172.99

36

3296-51

Nut-Nyloc 3/4-10

$7.19

37

1-633508

Washer-Spring Disc

$3.83

38

325-39

Screw-HH 1/2-13 x 9 1/2

$18.69

39

1-811010

Plug

$5.75

40

106-6572

Pad, Anti Skid

$12.09

41

3296-23

Nut-Nyloc 1/2-13

$1.25

42

103-3051

Spacer-Nut

$9.59

43

103-0063

Seal-Double Lip

$9.95

44

1-633585

Bearing-Cone Tapered Roller

$21.99

45

126-5361

AXLE CASTER ASM

$19.79

46

109-9127

WHEEL & TIRE ASM

$317.99

47

103-1918

Bushing

$8.87

48

323-29

Screw-HH 3/8-16 x 1 3/8

$0.74

49

32151-29

Ring-Retaining

$5.75

50

3274-18

Screw-SH 5/16-18 x 1 1/4

$9.59

51

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

52

32128-20

Nut-Whizlock 5/16-18

$1.39

53

103-3528

Asm, Floorpan (103-3241-01) W/Pads and Decals

$206.99

54

3218-2

Nut-Jam 5/16-18

$0.59

55

103-1955-01

Weldmt, Front Lift Shaft

$126.99

56

103-2013-01

Weldmt, Front Lift Shaft

$126.99

57

1-523157

Washer

$1.81

58

1-543508

Cup-Bearing Tapered Roller

$8.51

59

103-2047

FRONT FRAME SPRING ASM

$82.49

60

323-6

Screw-HH 3/8-16 x 1

$2.98



103-5475

Asm, Front Frame, 72"

$2,788.99



1-850337

Exmark red touch up spray paint

$31.89



103-9140

Exmark red touch up paint .6 oz liquid bottle

$20.89



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69
