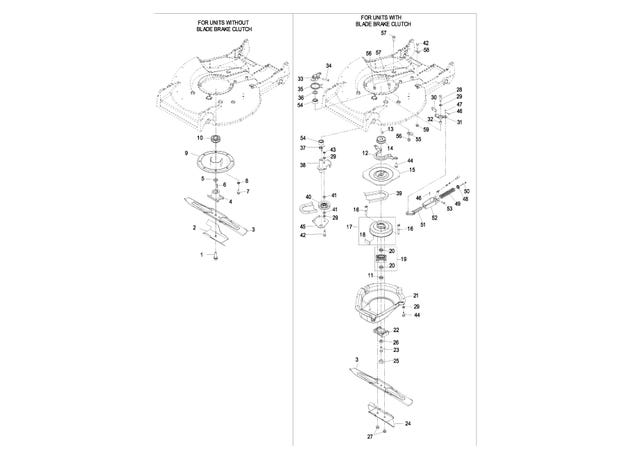

eXmark MN M216KA Blade Assembly

1

125-2466

BOLT-BLADE

$3.71

2

92-1599-03

STIFFENER-BLADE

$80.29

3

107-4276-03

BLADE-BAGGING, 21 INCH

$28.59

4

52-2170-03

RETAINER-BLADE

$76.99

5

103-3795

Spacer-Retainer, Blade

$8.51

6

7-0036

Key-Woodruff 1/8 x 1/2

product not available CALL FOR AVAILABILITY

$0.01

8

3254-6

Washer-Lock Internal

$0.14

9

48-2591

PROTECTOR-CRANKSHAFT

$132.99

10

46-7910

PULLEY-DRIVER

$37.39

11

107-4058

SPACER-SHAFT, OUTPUT

$28.59

12

66-0570-03

BRACKET-GUIDE, BELT

$13.19

13

3257-17

Key-Woodruff 5/32 X 21/32

$6.71

14

56-6180

PULLEY-DRIVER

$50.59

15

56-6160-03

FLYWHEEL-BBC

$90.99

16

42-3190

Bolt-Blade 3/8-24 x 2.33

$12.09

17

94-9431

BRAKE DRUM ASM

$46.19

18

52-3480

DAMPENER-VIBRATION

$1.55

19

42-6890

HUB ASM

$88.99

20

38-7820

BEARING-BALL

$14.29

21

46-5693

SHIELD

$34.09

22

107-4275

SPACER-BLADE

$24.19

23

3212-4

Screw-HH 7/16-20 x 1

$3.59

24

91-2255-03

STIFFENER-BLADE

$80.29

25

121-3611

NUT-HEX, FLEXTOP

$6.35

26

1-603610

Washer-Spring Disc 7/16

$5.75

27

54-9190

Nut-Hex 3/8-24 Lock

product not available CALL FOR AVAILABILITY

$1.00

28

32104-107

Screw-HH 5/16-18 x 1 1/2

$8.51

29

3256-23

Washer-5/16 SAE

$2.59

30

49-2810

LINK-CONTROL

$3.23

31

49-7960

BELLCRANK

$12.09

32

49-7950

SLEEVE-BELLCRANK

$5.75

33

49-2820

LEVER

$12.09

34

32104-96

Screw-HH 1/4-20 x 1 3/8 Tap

$7.07

35

49-7970

SPRING-TORSION

$15.39

36

70-1160

WASHER

$4.31

37

85-6880

SPRING-TORSION

$7.07

38

84-9130

ARM-IDLER

$41.79

39

100-6486-SL

V-BELTNSP WITH SLEEVE

$12.09

40

117-5299

PULLEY-IDLER

$42.89

41

46-5631

SPACER-PULLEY, IDLER

$3.11

42

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

43

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

44

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

45

125-1065

BRAKE PLATE ASM

$26.39

46

3272-1

Pin-Cotter 1/16 x 1/2

$0.44

47

84-9050

PIN-SPRING

$14.29

48

65-5280

RETAINER-SPRING

$3.59

49

84-9100

SPRING

$13.19

50

46-7040

Screw-HWH #8-16 x 1 1/2 TF

$3.11

51

106-0842

GUIDE-SPRING

$14.29

52

107-4087-03

BRACKET-SPRING

$11.99

53

84-9040

PIN-CABLE

$13.19

54

68-9780

BEARING

$24.19

55

84-8930

SHIELD-RETAINER

$3.47

56

3296-39

Nut-Nyloc 3/8-16

$2.98

57

323-6

Screw-HH 3/8-16 x 1

$2.98

58

62-3720

CLAMP-CABLE

$2.98

59

3296-58

NUT-LOCK, NI

$2.98



125-8370

PROTECTOR-CRANKSHAFT

$97.99



5-1077

Key-Machine 3/16 SQ x 1

$6.95



100-3288

HOUSING ASM

product not available CALL FOR AVAILABILITY

$0.01
