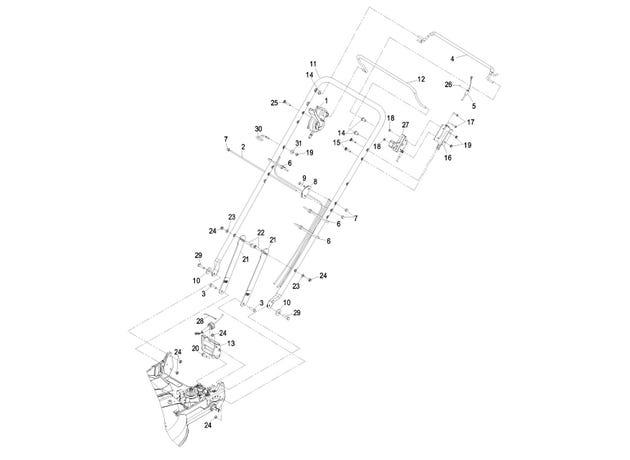

eXmark MN MSKA21 Handle Assembly for Self-Propelled Units With Blade Brake Clutch

1

109-3068

Control, BBC

$135.99

2

109-4982

Rod, Bag Support

$10.16

3

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

4

109-4606

Wld, Traction Bail

$62.69

5

109-4845

Cable, Traction

$75.89

6

3290-378

Tie-Cable

$1.11

7

32111-7

Nut-Cap 1/4-20

$8.51

8

104-1326

PLATE-ALIGNING, BAG

product not available CALL FOR AVAILABILITY

$0.01

9

3229-3

Bolt-Carriage 1/4-20 x 1 1/4

$5.75

10

3290-456

Washer-Spring Disc

$3.11

11

109-2676-03

Handle

product not available CALL FOR AVAILABILITY

$0.01

12

109-7584

Bail, Brake

$35.19

13

74-1741

BRACKET-ADJUSTMENT, TRACTION

$23.09

14

109-2713

Bushing

$7.07

15

109-8144

BOLT-HANDLE

product not available CALL FOR AVAILABILITY

$1.00

16

109-5574-03

Bracket, Throttle

product not available CALL FOR AVAILABILITY

$0.01

17

3250-27

Screw-PPH #10-24 x 7/8

$0.83

18

3296-2

Nut-Nyloc #10-24

$2.46

19

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

20

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

21

109-2677-03

Latch, Handle

$10.16

22

3230-4

Bolt-Carriage 5/16-18 x 1 1/2

$4.43

23

3256-23

Washer-5/16 SAE

$2.59

24

3296-29

Nut-Nyloc 5/16-18

$2.72

25

33113-045

Screw-HH M6-1 x 45mm

$3.47

26

32151-86

E-Ring

$2.98

27

103-4518

Cable, Throttle Kawasaki

$72.59

28

46-7030

RETAINER-CABLE

$6.35

29

322-17

Screw-HH 5/16-18 x 1 3/8

$4.07

30

114-2775

GUIDE-ROPE

$11.99

31

3-7501

Washer

$7.07



109-7876

Cable, Throttle Kawasaki

$72.59



109-3499

Cable, Throttle Honda

product not available CALL FOR AVAILABILITY

$0.01
