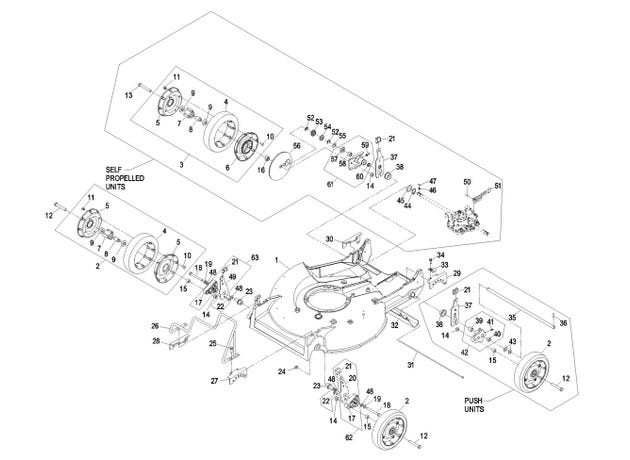

eXmark MN MSKA21B Deck and Wheel Assembly

1

98-8027

HOUSING ASM

product not available CALL FOR AVAILABILITY

$0.01

2

121-1380

WHEEL AND TIRE ASM

$92.99

3

121-1379

WHEEL AND TIRE ASM

$110.99

4

53-7740

TIRE

$35.19

5

121-1365-06

RIM-HALF, WHEEL

$18.69

6

121-1378-06

WHEEL HALF AND GEAR ASM

$28.59

7

52-2410

HUB-BEARING

$34.09

8

52-2440

SPACER-BEARING

$10.07

10

321-2

Screw-HH 1/4-20 x 1/2

$3.71

11

3296-42

Nut-Nyloc 1/4-20

$0.59

12

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

13

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

14

32152-2

Nut-Hex 3/8-16 Lock

$2.33

15

52-2480

SPACER-WHEEL

$7.07

16

74-1650

SPACER-COVER, WHEEL

$10.07

17

66-0580

ARM-PIVOT, FRONT

$18.69

18

322-20

Screw-HH 5/16-18 x 3 1/4

$2.33

19

98-3499

Washer

$2.98

20

103-5847

LH FRONT SPRING ARM ASM

$45.09

21

25-7740

KNOB-ARM

$5.39

23

109-6041

BUSHING-PIVOT, WHEEL

$20.89

24

3296-29

Nut-Nyloc 5/16-18

$2.72

25

32144-86

Screw-HWH 1/4-20 x 1 TF

$1.68

26

109-7638

GUARD-ENGINE

$57.19

27

103-7683

Bracket, Quadrant Front LH

$41.79

28

103-7684

Bracket, Quadrant Front RH

product not available CALL FOR AVAILABILITY

$0.01

29

103-7685

Bracket, Quadrant Rear LH

$17.59

30

103-7686

Bracket, Quadrant Rear RH

$16.49

31

33-3208

ROD-SHIELD

$15.39

32

112-9989

SHIELD-TRAILING

$28.59

33

1-323229

CLIP-LOOM

$3.23

34

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

35

49-8790

SHAFT-AXLE, REAR

$56.09

36

32121-108

Pin-Spirol 5/32 x 7/8

$7.31

37

66-7561

REAR SPRING ARM ASM

$19.79

38

48-2170

CAP-END

$11.99

39

47-2900

BUSHING

$7.07

40

47-2890

BUSHING

$4.19

41

302-56

Zerk-3/16 Str

$5.75

42

42-3510

PIVOT ARM ASM

$50.59

43

36-4780

Washer

$8.51

44

32151-36

Ring-Retaining

$5.15

45

74-1810

WASHER

$0.59

46

39-9650

Spring

$3.47

47

612066

Key

$2.85

48

77-0350

WASHER-THRUST, NYLON

$1.55

49

103-6246

Asm, Front Spring Arm RH

$40.69

50

32121-99

Pin-Coil

$1.55

51

74-1960

LEVER-SHIFT

$14.29

52

65-2720

RING-RETAINING, CLIP

$1.39

53

39-9160

GEAR-PINION

$14.29

54

62-3830

Washer

$4.07

55

49-7700

WASHER-THRUST, OUTER

$2.98

56

74-1640

COVER-WHEEL

$15.39

57

52-2450

Bearing-Ball

$18.69

58

117-3500

BEARING-CAGED NEEDLE ROLLER

$5.63

59

92-6316

ZERK

$2.07

60

47-6730

Seal-Oil

$13.19

61

74-1851

PIVOT ARM ASM

$88.99

62

109-6676

Asm, Arm Front Wheel LH

$50.59

63

109-6677

Asm, Arm Front Wheel RH

$50.59



100-3288

HOUSING ASM

product not available CALL FOR AVAILABILITY

$0.01
