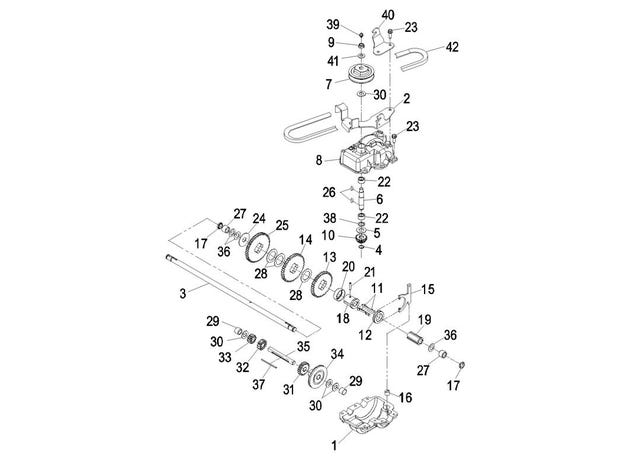

eXmark MN MSHN21B Gear Case Assembly for Self-Propelled Units

1

119-7863

GEARCASE-LOWER

$45.09

2

49-8461-03

BRACKET-GUIDE, BELT

$31.89

3

74-1890

SHAFT-OUTPUT

$117.99

4

32151-57

Ring-Retaining

$5.75

5

47-2910

Washer-Thrust

$14.29

6

13-5149

INPUT SHAFT ASM

$86.99

7

39-6740

PULLEY

$54.99

8

13-9739

UPPER GEARCASE ASM

$76.99

9

3296-5

Nut-Nyloc 3/8-24 Thin

$3.71

10

39-6660

Pinion-Bevel 16T

$40.69

11

29-9330

Key-Shift

$27.49

12

29-9340

Collar-Shift

$40.69

13

42-4740

Gear-38T

$77.99

14

29-9271

Gear-42T

$82.99

15

60-8870

Yoke-Shift

$24.19

16

29-9570

Bushing-Yoke

$12.09

17

47-6730

Seal-Oil

$13.19

18

55-8010

Sleeve-Gear

$19.79

19

39-6720

Sleeve

$16.49

20

55-8020

Retainer-Key

$9.95

21

3285-19

Pin-Groove

$2.98

22

47-7270

BEARING-NEEDLE

$31.89

23

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

24

29-9690

Washer

$13.19

25

46-3560

Gear-52T

$76.99

26

3257-1

Key-Woodruff 1/8 x 1/2

$2.98

27

117-3500

BEARING-CAGED NEEDLE ROLLER

$5.63

28

36-4770

Washer

$7.07

29

252-103

Bearing-Needle

$24.19

30

36-4792

Washer-Thrust

$1.55

31

39-6650

Gear-18T

$14.29

32

46-3550

Gear-14T

$21.99

33

46-3540

Gear-12T

$14.29

34

74-1760

Gear-Bevel 40T

$40.69

35

53-7950

Shaft-Intermediate

$53.89

36

36-4780

Washer

$8.51

37

39-7842

Key-Machine 3/32 SQ x 2 1/8

$2.98

38

47-7260

Seal

$9.11

39

302-63

Zerk

$3.23

40

74-1750-03

BRACKET-ENGAGE, TRACTION

$13.19

41

3256-45

Washer-Flat

$0.74

42

1-213237-SL

V-BELT WITH SLEEVE

$18.69

43

74-1860

GEAR CASE ASM

$689.99
