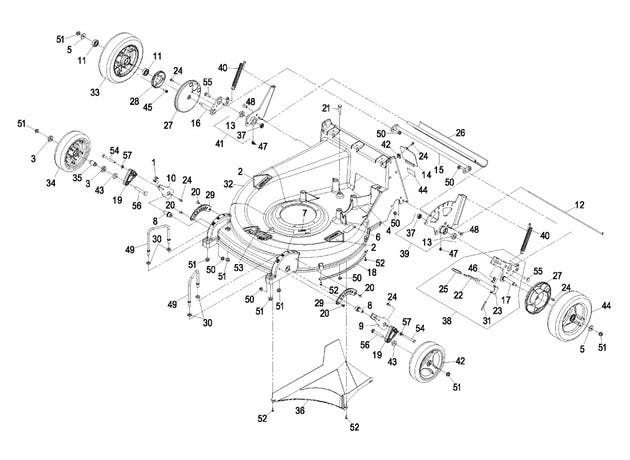

eXmark MN M266KASPC Deck And Wheel Assembly

1

25-7740

KNOB-ARM

$5.39

2

43-8480

DECAL-DANGER

$7.07

3

52-2450

Bearing-Ball

$18.69

4

52-2620

LABEL-GREASE

product not available CALL FOR AVAILABILITY

$1.00

5

52-2860

Washer

$1.25

6

68-7410

DECAL-BLADE

$11.99

7

98-5954

DECAL-COVER, MISSING

$8.51

8

103-5538

Bushing

$23.09

9

103-5847

LH FRONT SPRING ARM ASM

$45.09

10

103-6246

Asm, Front Spring Arm RH

$40.69

11

103-6103

BEARING-BALL

$24.19

12

109-2458

ROD-SHIELD

$14.29

13

103-6110

BEARING-AXLE, REAR

$56.09

14

103-6116

COVER

$13.98

15

109-2456-03

ROD-TORQUE

$80.29

16

103-6128

Wld, Axle Arm RH

product not available CALL FOR AVAILABILITY

$1.00

17

103-8227

ARM-AXLE, LH

$118.99

18

103-6131

GUARD-EDGE

$35.19

19

109-4683

KIT,PIVOT ARM REPLACEMENT M26

$47.29

20

103-6145

Screw-Flat HD 1/4-20 x 1/2 TR

$5.75

21

7-0030

SCREW-SHOULDER, HH

$9.59

22

103-6157

Lever, Lift

product not available CALL FOR AVAILABILITY

$1.00

23

103-6158

BRACKET-PIVOT, LIFT

$18.69

24

103-6159

Screw-TPH 1/4-20 x 1/2

$7.07

25

103-6165

COVER-HANDLE

$5.39

26

109-5974

SHIELD-REAR

$13.19

27

103-6441

COVER-GEAR

$17.59

28

103-6445

GEAR-DRIVEN

$43.99

29

103-6460

QUADRANT-FRONT

$26.39

30

3256-24

Washer-3/8 SAE

$0.83

31

32121-32

PIN-ROLL

$1.68

32

109-5476

Asm, Deck W/Decals

$750.99

33

103-9975

Asm, Rear Wheel & Tire

$87.99

34

103-9976

Asm, Wheel and Tire

$80.29

35

103-7649

SPACER-WHEEL, FRONT

$17.59

36

103-7650-01

Wld, Chute Metro 26

product not available CALL FOR AVAILABILITY

$0.01

37

103-7654

Seal

$16.49

38

103-7657

Asm, Rear Adjuster

$215.99

39

103-7658

Asm, Rear Quadrant

$214.11

40

103-7659

Spring

$21.99

41

103-7661

Asm, Brg Support

product not available CALL FOR AVAILABILITY

$0.01

42

107069

Nut-Retainer-Panel 1/4-20

$2.98

43

62-6660

Spacer

$1.11

44

52-2610

LABEL-GREASE, HP

product not available CALL FOR AVAILABILITY

$0.01

45

49-2040

Screw-HWH 1/4-20 x 3/4 TF

$2.59

46

103-7897

Spring

$18.69

47

103-8864

Zerk 65° 3/16

$9.95

48

103-8873

Screw, Flat HD 5/16-18 x 3/7

$8.27

49

116-6944

HANDLE-DECK

$25.29

50

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

51

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

52

105-6849

Screw-TPH #10-24 x 1/2 TF

$1.55

53

109-0046

Decal, Metro 26

$15.39

54

322-14

Screw-HH 5/16-18 x 3

$3.11

55

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

56

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

57

3256-23

Washer-5/16 SAE

$2.59
