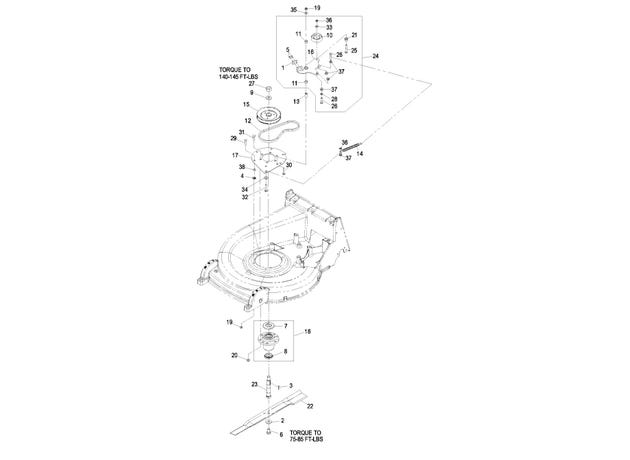

eXmark MN MS6KA26B Blade & Spindle Assembly

1

1-323709

PAD-BRAKE

$28.59

2

1-513208

Washer-Spring Disc 5/8

$9.95

3

1-807268

KEY-RECTANGLE

$2.98

4

78-7170

Nut-Push 5/16

$1.68

5

103-0138

Rivet 3/16 x 1/2

$1.55

6

103-1026

SCREW-CAP

$5.75

7

103-1330

Guard-Bearing Top

$5.75

8

103-2535

Spacer-Guard Bottom

$13.19

9

103-2802

Washer-Spring Disc 3/4

$5.75

10

109-3546

PULLEY-IDLER

$68.19

11

103-6111

Bearing

$8.51

12

116-0861-SL

BELT,A X 30.1 KEVLAR WITH SLEEVE

$40.69

13

103-7108

BUSHING-ARM, IDLER

$26.39

14

103-7896

SPRING-BRAKE

$21.99

15

103-7907

SHEAVE-SPINDLE

$48.39

16

103-8217-03

ARM-IDLER

$89.99

17

103-8219-03

PLATE-ADAPTER, HOUSING

$43.99

18

103-8280

Kit, Cutter Housing

$247.99

19

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

20

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

21

107-0075

Bushing

$5.75

22

109-0343

BLADE

$53.89

23

109-2650

SHAFT-SPINDLE

$92.99

24

109-2836

Asm, Idler Arm

$259.99

25

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

26

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

27

3217-46

Nut-Hex 3/4-16 Heavy

$13.19

28

3218-3

NUT-JAM

$0.74

29

3230-4

Bolt-Carriage 5/16-18 x 1 1/2

$4.43

30

3230-5

Bolt-Carriage 5/16-18 x 1 3/4

$1.11

31

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

32

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23

33

3256-24

Washer-3/8 SAE

$0.83

34

3256-26

Washer-1/2 SAE

$0.59

35

3256-71

WASHER-FLAT

$1.81

36

121-4600

NUT-HEX

$1.25

37

3290-357

Nut-Whizlock 3/8-16

$1.11

38

111044

Bushing

$1.55

39

109-3559

Asm, Cutter Housing Complete

$409.99



103-6422

Blade, Mulching

$34.09
