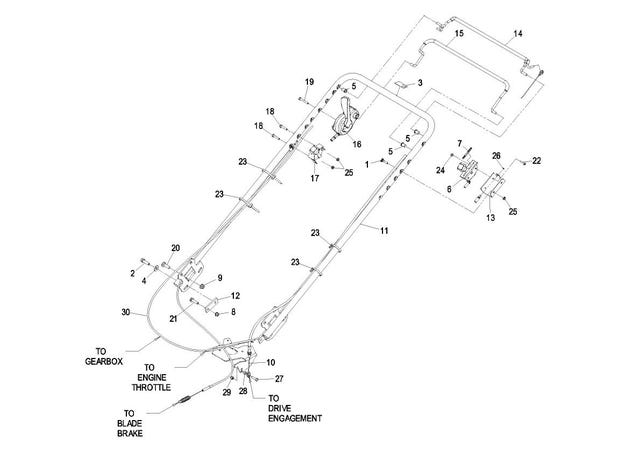

eXmark MN MS6KA26B Handle Assembly

1

92-2268

Screw-Handle 1/4-20 x 1 1/4

$3.24

2

95-1727

Screw-HWH 3/8-16 x 1 1/4 Taptite

$2.98

3

98-4387

DECAL-PROTECTION, EAR

$8.03

4

98-5975

Washer-Spring Disc 3/8

$3.71

5

109-2713

Bushing

$7.07

6

103-6123

CONTROL-THROTTLE

$81.39

7

103-6328

DECAL-THROTTLE / CHOKE

$14.29

8

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

9

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

10

109-2212

CABLE-TRACTION

$59.39

11

109-0472

Asm, Handle W/Decal

$144.99

12

109-2643-03

NUT-HANDLE

$7.07

13

109-2821-03

BRACKET-CONTROL

$36.29

14

116-0389

BAIL-TRACTION

$61.59

15

109-2826

BAIL-BBC (WITH GRIP)

$45.09

16

109-2827

CONTROL-BBC

$141.99

17

116-0504

CONTROL-SHIFT

$85.99

18

321-8

Screw-HH 1/4-20 x 1 1/4

$4.43

19

33113-045

Screw-HH M6-1 x 45mm

$3.47

20

119-4162

SCREW-CARR

$2.07

21

3234-36

Screw-HH FLG 5/16-18 x 1 1/4

$2.33

22

3250-27

Screw-PPH #10-24 x 7/8

$0.83

23

3290-378

Tie-Cable

$1.11

24

3296-2

Nut-Nyloc #10-24

$2.46

25

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

26

32151-86

E-Ring

$2.98

27

321-6

Screw-HH 1/4-20 x 1

$0.74

28

3217-5

Nut-Hex 1/4-20

$0.83

29

3296-42

Nut-Nyloc 1/4-20

$0.59

30

109-4115

CABLE-SHIFTER

$62.69
