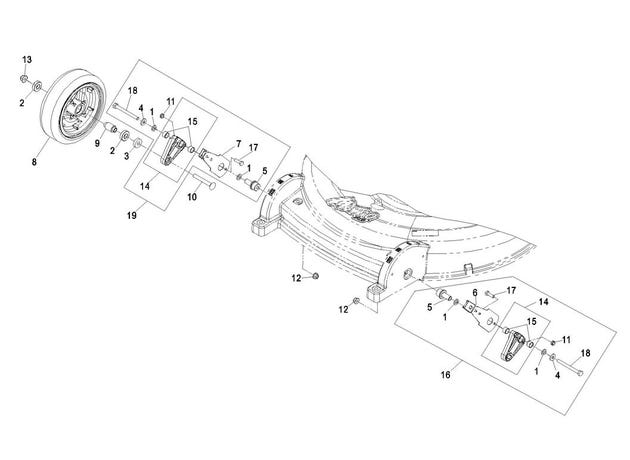

eXmark MN MS6KA26BCA Deck and Wheel Assembly

1

77-0350

WASHER-THRUST, NYLON

$1.55

2

52-2450

Bearing-Ball

$18.69

3

62-6660

Spacer

$1.11

4

98-3499

Washer

$2.98

5

109-6041

BUSHING-PIVOT, WHEEL

$20.89

6

103-6245

Asm, Front Spring Arm LH

$40.69

7

103-6246

Asm, Front Spring Arm RH

$40.69

8

103-9976

Asm, Wheel and Tire

$80.29

9

103-7649

SPACER-WHEEL, FRONT

$17.59

10

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

11

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

12

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

13

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

14

109-2843

FRONT PIVOT ARM ASM

product not available CALL FOR AVAILABILITY

$0.01

15

109-2844

Bearing, Sleeve

$3.11

16

109-6882

Asm, LH Pivot

product not available CALL FOR AVAILABILITY

$0.01

17

321-5

Screw-HH 1/4-20 x 7/8

$0.59

18

322-20

Screw-HH 5/16-18 x 3 1/4

$2.33

19

109-6883

Asm, RH Pivot

product not available CALL FOR AVAILABILITY

$0.01



25-7740

KNOB-ARM

$5.39
