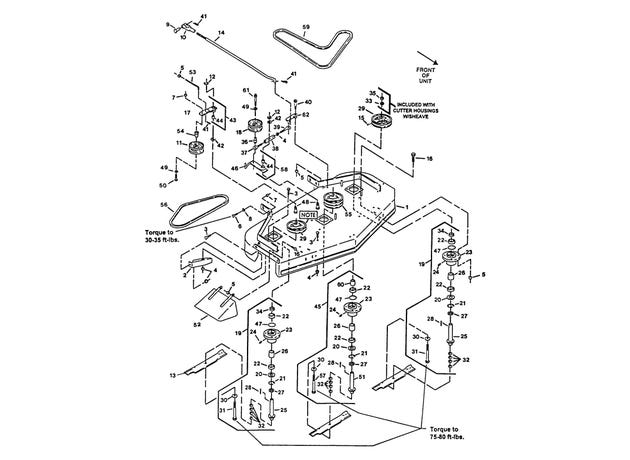

eXmark MN M3615KC 48" Mower Deck I

1

1-402096

Front Deck w/decals and dogleg

product not available CALL FOR AVAILABILITY

$0.01

2

1-302189-01

BAFFLE-DOGLEG

$50.59

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

3296-29

Nut-Nyloc 5/16-18

$2.72

6

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

7

3290-357

Nut-Whizlock 3/8-16

$1.11

8

98-5975

Washer-Spring Disc 3/8

$3.71

9

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

10

1-303105

Yoke-Adjustable

$13.19

11

1-403119

IDLER,PULLEY

$45.09

12

32151-103

E-Ring

$3.47

13

103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99

14

1-323303

ARM-ASSIST, LINKAGE

$25.29

15

1-803310

SCREW-SET

$2.98

16

322-5

Screw-HH 5/16-18 x 1

$0.74

17

1-402052

Arm weldmt

product not available CALL FOR AVAILABILITY

$1.00

18

132-4718

PULLEY-IDLER, FLAT

$34.09

19

1-322166

Cutter housing w/sheave

$602.99

20

1-323408

Dust shield

$17.59

21

1-808506

Retaining ring

$7.55

22

1-303543

Cutter housing bearing

$43.99

23

1-323315

Cutter housing

$102.99

24

302-52

FITTING-GREASE

$7.31

25

103-1871

KIT,SHORT SPINDLE ASM

$108.99

26

1-323400

Spacer

$9.59

27

1-323399

SPACER,BEARING &SPINDLE

$9.95

28

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

29

1-403183

SHEAVE

$71.49

30

1-513208

Washer-Spring Disc 5/8

$9.95

31

1-800861

SCREW-CAP, HH

$19.79

32

1-323539

SPACER

$2.72

33

1-323339

Washer

$5.75

34

1-323402

Spacer, bearing sheave

$3.31

35

3219-6

Nut-Hex 5/8-18

$4.43

36

1-303434

BUSHING-ENGAGEMENT

$15.39

37

1-303348

EYEBOLT-THREAD, LH

$7.07

38

1-303236

BODY-TURNBUCKLE

$21.99

39

1-303238

EYEBOLT-THREAD, RH

$7.07

40

1-809011

3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01

41

1-806003

PIN-COTTER

$1.81

42

1-303352

WASHER-SPINDLE

$2.98

43

1-402053

ARM WLDMNT W/BUSHING

$89.99

44

1-303144

BEARING,POWDERED METAL

$5.75

45

1-402077

Cutter housing w/sheave (center)

product not available CALL FOR AVAILABILITY

$0.01

47

1-303542

O-Ring

$3.11

48

302-19

Zerk-1/4-28 Str

$2.85

49

3256-24

Washer-3/8 SAE

$0.83

50

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

51

103-1869

KIT,LONG SPINDLE ASM

$110.99

52

1-302054

Chute

product not available CALL FOR AVAILABILITY

$1.00

53

1-403107

LINKAGE

$41.79

54

1-603496

BUSHING-IDLER

$7.91

55

1-403167

SHEAVE,DOUBLE GROOVE

product not available CALL FOR AVAILABILITY

$0.01

56

1-403025-SL

BELT,FRONT DECK WITH SLEEVE

$45.09

57

1-800862

SCRW,CAP HH 5/8-18X8.5

$28.59

58

1-402109

ENGAGE ARM ASM W/ BUSHINGS

$110.99

59

1-323300-SL

BELT,BLADE DRIVE WITH SLEEVE

$95.99

60

1-323404

Spacer, bearing (center sheave)

$23.09

61

1-803003

BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01

62

1-321021

KIT,ASSIST ARM S/N 219,999 AND

$75.99



103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



MK482

Mulch kit

product not available CALL FOR AVAILABILITY

$1.00



1-850337

Exmark red touch up spray paint

$31.89



1-401002

Flow control baffle kit

product not available CALL FOR AVAILABILITY

$0.01
