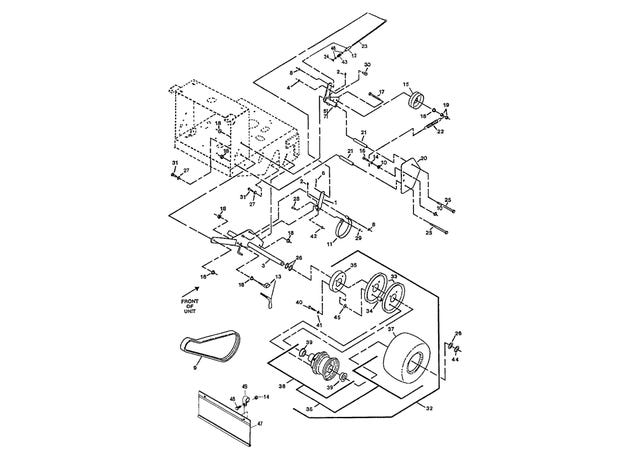

eXmark MN M3615KA Engine Deck Group (Part 3)

1

103-0417-03

Brake arm wldmnt

product not available CALL FOR AVAILABILITY

$0.01

2

302-19

Zerk-1/4-28 Str

$2.85

3

1-322117-03

Axle

$335.99

4

32151-73

RING-CLIP

$3.11

5

1-322119-03

Idler arm wldmnt (LH)

product not available CALL FOR AVAILABILITY

$0.01

6

1-806003

PIN-COTTER

$1.81

7

1-322121-03

Idler arm wldmnt (RH)

product not available CALL FOR AVAILABILITY

$0.01

8

32151-47

RING-RETAINING

$3.24

9

1-323288

Belt, wheel drive

$76.56

10

32128-20

Nut-Whizlock 5/16-18

$1.39

11

1-323262

BAND-BRAKE

$81.99

12

1-322125

SWIVEL-BRAKE

product not available CALL FOR AVAILABILITY

$0.01

13

1-412358

SCRAPER

$32.99

14

3296-29

Nut-Nyloc 5/16-18

$2.72

15

1-323277

IDLER-WHEEL, DRIVE

$32.99

16

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

17

99-8664

SCREW-HH

$1.94

18

3290-357

Nut-Whizlock 3/8-16

$1.11

19

3296-39

Nut-Nyloc 3/8-16

$2.98

20

1-323287-01

Shield-Wheel, Drive

$49.49

21

1-323283

SPACER-SHIELD

$9.59

22

1-603402

SPRING-EXTENSION

$8.87

23

1-323548

Linkage-Brake

$27.49

24

1-513959

WINGNUT-NYLOCK

$7.07

25

323-39

Screw-HH 3/8-16 x 5

$12.09

26

1-523157

Washer

$1.81

27

98-5975

Washer-Spring Disc 3/8

$3.71

28

1-323307

PIN-CLEVIS

$5.75

29

1-803051

RING-RETAIN

$2.98

30

1-323368

Swivel, Short

product not available CALL FOR AVAILABILITY

$0.01

31

323-6

Screw-HH 3/8-16 x 1

$2.98

32

1-324367

Drive wheel

product not available CALL FOR AVAILABILITY

$0.01

33

1-323253

SHEAVE-WHEEL, DRIVE

$52.79

34

1-323260

SPACER-SHEAVE, WHEEL

$11.99

35

1-323261

DRUM-BRAKE

$19.79

36

1-323719

Wheel and Tire ASM

$207.99

37

1-323720

Tire-Turfmaster

$102.99

38

1-323328

WHEEL AND HUB ASM

$154.99

39

1-323329

BEARING-FLANGED

$63.79

40

322-5

Screw-HH 5/16-18 x 1

$0.74

41

1-805005

Washer-Lock 5/16 Heavy

$1.55

42

32120-47

RING-RETAINING, EXTERNAL

$1.55

43

1-323245

Spring-Compression

$7.07

44

1-808519

RING-SNAP

$2.98

45

1-373034

Washer

$3.83

46

3256-23

Washer-5/16 SAE

$2.59

47

98-3259

SHIELD-TRAILING

$72.59

48

322-3

Screw-HH 5/16-18 x 3/4

$1.11

49

2412-104

CLAMP-R

$7.91



1-323352

IDLER-WHEEL, DRIVE

$27.49



1-603430

Scraper

$19.79



1-323344

Belt-Wheel, Drive

$71.49



1-322141-03

Axle

$441.99



1-543436

WASHER-SPACER

$1.55



1-324193

Drive wheel

$226.99



1-323349

SHEAVE-WHEEL, DRIVE

$63.79



1-323346

Wheel AND Tire ASM

$147.25



1-323361

TIRE

$81.39



1-323360

WHEEL AND HUB ASM

$121.99
