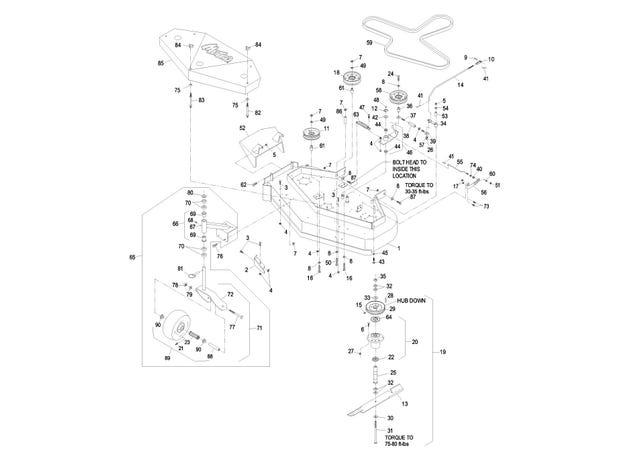

eXmark MN M4815KA 48" Mower Deck

1

1-404257

Deck w/decals and dogleg

$2,303.99

2

1-402107-01

BAFFLE-DOGLEG

product not available CALL FOR AVAILABILITY

$0.01

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

3296-29

Nut-Nyloc 5/16-18

$2.72

6

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

7

3290-357

Nut-Whizlock 3/8-16

$1.11

8

98-5975

Washer-Spring Disc 3/8

$3.71

9

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

10

1-303105

Yoke-Adjustable

$13.19

11

1-613098

PULLEY-IDLER

$48.39

12

32151-103

E-Ring

$3.47

13

103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99

14

1-323303

ARM-ASSIST, LINKAGE

$25.29

15

1-803310

SCREW-SET

$2.98

16

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

17

3296-42

Nut-Nyloc 1/4-20

$0.59

18

126-9187

PULLEY-IDLER, FLAT

$61.59

19

103-8387

Asm, Cutter Housing Complete

$507.99

20

103-8280

Kit, Cutter Housing

$247.99

21

302-61

FITTING-GREASE

$12.09

22

103-2535

Spacer-Guard Bottom

$13.19

23

1-513809

BEARING

$36.29

24

702809

SCREW-HH

$5.75

25

1-323529

TUBE-SPINDLE, SHORT

$82.99

26

32120-35

E-Ring

$4.55

27

3296-39

Nut-Nyloc 3/8-16

$2.98

28

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

29

1-403183

SHEAVE

$71.49

30

1-513208

Washer-Spring Disc 5/8

$9.95

31

1-800861

SCREW-CAP, HH

$19.79

32

1-323539

SPACER

$2.72

33

1-323339

Washer

$5.75

34

1-322235

ARM-ASSIST, 32/36

$56.09

35

3219-6

Nut-Hex 5/8-18

$4.43

36

1-303434

BUSHING-ENGAGEMENT

$15.39

37

1-303348

EYEBOLT-THREAD, LH

$7.07

38

1-303236

BODY-TURNBUCKLE

$21.99

39

1-303238

EYEBOLT-THREAD, RH

$7.07

40

1-323747

SPRING-COMPRESSION

$3.47

41

1-806003

PIN-COTTER

$1.81

42

1-303352

WASHER-SPINDLE

$2.98

43

322-10

SCREW-HH

$1.11

44

1-323729

SLEEVE-BEARING

$5.75

45

1-303334

Washer-Spring Disc 5/16

$2.98

46

103-3600

Idler Arm ASM

$123.99

47

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

48

302-19

Zerk-1/4-28 Str

$2.85

49

3256-24

Washer-3/8 SAE

$0.83

50

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

51

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

52

1-402106-01

Chute wldmt, discharge (44")(48")

$148.99

53

1-403179

TUBE-PIVOT

$18.69

54

3256-3

Washer-5/16 Std

$0.74

55

1-323714

ROD-BRAKE

$28.59

56

1-324372

PAD AND SPRING ASM

$70.39

57

3256-23

Washer-5/16 SAE

$2.59

58

132-4718

PULLEY-IDLER, FLAT

$34.09

59

1-403174-SL

BELT,BLADE 48 WITH SLEEVE

$87.99

60

1-323746

SPACER-FLANGED

$1.68

61

1-413113

BUSHING-IDLER

$6.35

62

322-5

Screw-HH 5/16-18 x 1

$0.74

63

1-323071

SPRING-EXTENSION

$16.49

64

103-1330

Guard-Bearing Top

$5.75

65

103-1238

ASM,CASTER/MOUNT

$302.99

67

1-302203

SUPPORT ASM

$249.99

68

302-52

FITTING-GREASE

$7.31

69

1-303514

BEARING-FLANGED

$13.19

70

1-303314

SPACER-CASTER

$7.07

71

103-1236

Caster wheel assembly

$192.99

72

116-7942-01

FORK-CASTER

$88.99

73

321-4

Screw-HH 1/4-20 x 3/4

$1.39

74

1-323748

RING-PUSH ON

$1.94

75

1-323417

Washer-Belt Shield

$3.47

76

323-4

Screw-HH 3/8-16 x 3/4

$4.31

77

325-20

Screw-HH 1/2-13 x 6

$8.51

78

3217-9

NUT-HH

$0.74

79

3253-7

WASHER-LOCK

$1.25

80

1-513338

WASHER-FLAT

$4.55

81

1-809020

PIN

$12.09

82

1-303537

STUD-SHIELD, BELT (SHORT)

$7.07

83

1-303536

STUD-SHIELD, BELT (LONG)

$8.51

84

1-323385

Knob-3 Prong

$5.75

85

116-2707

ASM,SHIELD W/DECALS 48 METRO

$465.99

86

1-403188

SPACER

$15.39

87

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

88

1-513547

SPACER

$13.19

89

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

90

1-513810

BUSHING

$6.59



116-5178-S

SPK,BLADE-EXTREME 2, 16.25"

$37.39



103-1577-S

SPK, BLADE SOLID 16.25

$38.49



103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



116-8245

ASM-CASTER MNT W/WEIGHT

$677.99



103-2296

Caster whl support w/bearings, weighted

$275.99
