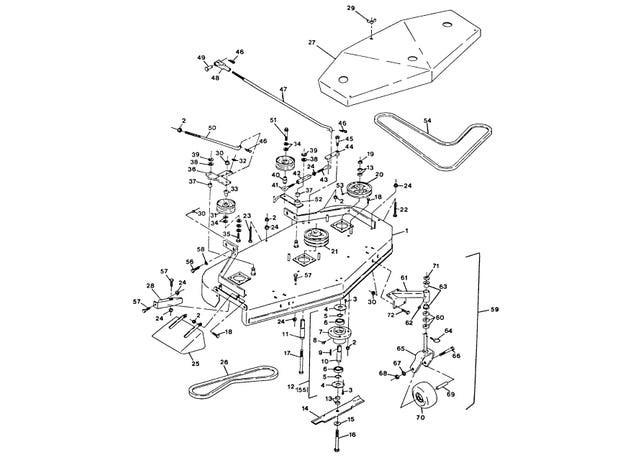

eXmark MN M52-14K-5 48" Mower Deck

1

1-402084

Front Deck

product not available CALL FOR AVAILABILITY

$0.01

2

3296-29

Nut-Nyloc 5/16-18

$2.72

3

1-801035

No.10-24 x 3/8" Machine Screw

$1.42

4

1-303523

Cutter Housing Cap

$8.27

5

1-808521

Ring retaining

$1.55

6

1-303543

Cutter housing bearing

$43.99

7

1-303189

Cutter Housing

product not available CALL FOR AVAILABILITY

$0.01

9

13-2840

Key-Machine 1/4 x 1/4 x 1 1/4

$1.94

10

1-303187

Cutter Spindle 5 1/8"

$50.59

11

1-403033

Cutter Spindle 5.795 Long

product not available CALL FOR AVAILABILITY

$0.01

12

1-302030

Cutter Housing Complete

$151.13

13

1-323539

SPACER

$2.72

14

103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99

15

3256-7

Washer-5/8 Std

$1.94

16

1-800860

5/8"-18 x 7 1/4" Grade 5 Hex Hd. Capscrew

product not available CALL FOR AVAILABILITY

$0.01

17

1-800861

SCREW-CAP, HH

$19.79

18

322-5

Screw-HH 5/16-18 x 1

$0.74

19

3219-6

Nut-Hex 5/8-18

$4.43

20

1-303073

Pulley

$138.99

21

1-403032

Double Pulley

product not available CALL FOR AVAILABILITY

$0.01

22

1-800021

5/16-18 x 3" Tap Bolt

$3.24

23

1-800020

Tapbolt -.31-18 x 3.5 HH

$8.27

24

32128-20

Nut-Whizlock 5/16-18

$1.39

25

1-302054

Chute

product not available CALL FOR AVAILABILITY

$1.00

26

1-403025-SL

BELT,FRONT DECK WITH SLEEVE

$45.09

27

1-404135

Shield Weldment - 48" (Metro)

product not available CALL FOR AVAILABILITY

$0.01

28

1-302189-01

BAFFLE-DOGLEG

$50.59

29

1-803014

5/16" - 18 Wingnut

product not available CALL FOR AVAILABILITY

$0.01

30

3290-357

Nut-Whizlock 3/8-16

$1.11

31

132-4718

PULLEY-IDLER, FLAT

$34.09

32

3256-3

Washer-5/16 Std

$0.74

33

1-603496

BUSHING-IDLER

$7.91

34

3256-24

Washer-3/8 SAE

$0.83

35

323-10

Screw-HH 3/8-16 x 2

$0.97

36

1-402017

Idler Arm - Right w/Bushing

$145.99

37

1-303144

BEARING,POWDERED METAL

$5.75

38

1-303352

WASHER-SPINDLE

$2.98

39

32151-103

E-Ring

$3.47

40

1-303434

BUSHING-ENGAGEMENT

$15.39

41

1-303348

EYEBOLT-THREAD, LH

$7.07

42

1-303236

BODY-TURNBUCKLE

$21.99

43

1-303238

EYEBOLT-THREAD, RH

$7.07

44

1-321021

KIT,ASSIST ARM S/N 219,999 AND

$75.99

45

1-809011

3/8 x 3/4 Shoulder bolt

product not available CALL FOR AVAILABILITY

$0.01

46

1-806003

PIN-COTTER

$1.81

47

1-323303

ARM-ASSIST, LINKAGE

$25.29

48

1-303105

Yoke-Adjustable

$13.19

49

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

50

1-403015

Belt Tension Rod

$15.39

51

1-803003

BOLT,WHIZLCK3/8-16X13/4

product not available CALL FOR AVAILABILITY

$0.01

52

1-402109

ENGAGE ARM ASM W/ BUSHINGS

$110.99

53

1-803310

SCREW-SET

$2.98

54

1-323300-SL

BELT,BLADE DRIVE WITH SLEEVE

$95.99

55

1-402006

Center Cutter Housing Complete

$251.99

56

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

57

322-2

Screw-HH 5/16-18 x 5/8

$2.98

58

98-5975

Washer-Spring Disc 3/8

$3.71

59

1-302201

Caster, 9" Smooth - Complete

product not available CALL FOR AVAILABILITY

$0.01

60

1-303314

SPACER-CASTER

$7.07

61

1-302203

SUPPORT ASM

$249.99

62

302-52

FITTING-GREASE

$7.31

63

1-303514

BEARING-FLANGED

$13.19

64

1-809020

PIN

$12.09

65

1-302200-01

Caster Weldment - Mid-Size

product not available CALL FOR AVAILABILITY

$0.01

66

325-20

Screw-HH 1/2-13 x 6

$8.51

67

3253-7

WASHER-LOCK

$1.25

68

3217-9

NUT-HH

$0.74

69

1-513547

SPACER

$13.19

70

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

71

1-513338

WASHER-FLAT

$4.55

72

323-4

Screw-HH 3/8-16 x 3/4

$4.31



1-840023

Prolock, retaining type

$19.79



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



1-513808

TIRE

$43.99



1-513809

BEARING

$36.29



1-513810

BUSHING

$6.59
