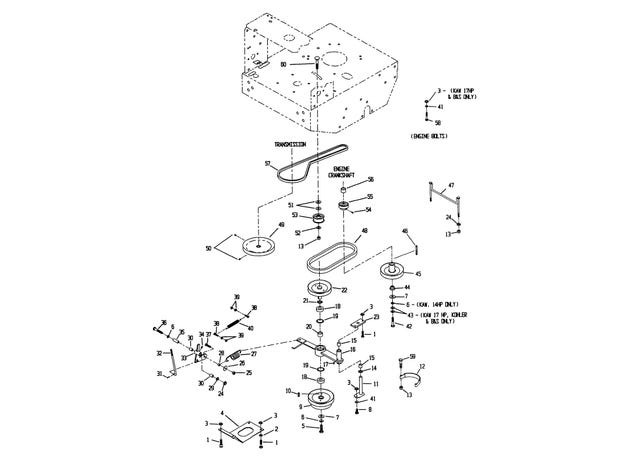

eXmark MN MHP4815KC Engine Deck Group (Part 2)

1

322-5

Screw-HH 5/16-18 x 1

$0.74

2

3256-3

Washer-5/16 Std

$0.74

3

32128-20

Nut-Whizlock 5/16-18

$1.39

4

1-413009-01

Plate, Guard

$62.69

5

1-800521

Screw, Hex Cap 3/8-24 x 1 G8

$1.55

6

98-5975

Washer-Spring Disc 3/8

$3.71

7

1-373034

Washer

$3.83

8

322-3

Screw-HH 5/16-18 x 3/4

$1.11

9

1-412031

Sheave, w/drum (36")

$143.99

10

1-807259

KEY

$2.46

11

1-412138-03

Pivot Pin weldment

$40.69

12

1-413062

Band, Brake Clutch

$57.19

13

3296-39

Nut-Nyloc 3/8-16

$2.98

14

1-413235

Washer, Spacer

$2.98

15

1-413207

Pivot, Bearing

$14.29

16

1-414418

Clutch Arm w/Bearings

$364.99

17

1481

FITTING-GREASE

$7.07

18

1-413111

Bearing, Clutch Shaft

$43.99

19

32120-8

RING-SNAP

$3.24

20

1-413012

Spacer, Bearing Clutch

$7.55

21

1-523157

Washer

$1.81

22

1-412011

Sheave w/shaft

$160.99

23

1-413049-01

Plate, Clutch Pivot

$41.79

24

3290-357

Nut-Whizlock 3/8-16

$1.11

25

3296-29

Nut-Nyloc 5/16-18

$2.72

26

1-213069

WASHER

$2.98

27

1-513113

Sheave, w/drum (48")

$20.89

28

1-543007

Spacer

$8.99

29

3256-4

Washer-3/8 Std

$1.94

30

1-513034

SLEEVE-BEARING

$8.15

31

1-806003

PIN-COTTER

$1.81

32

1-413282

Linkage, Lower

$19.79

33

1-414143

Link Pivot w/Bearing

$117.99

34

302-19

Zerk-1/4-28 Str

$2.85

35

1-603044

BUSHING

$15.39

36

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

37

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

38

321-6

Screw-HH 1/4-20 x 1

$0.74

39

32128-33

Nut-Whizlock 1/4-20

$0.97

40

1-523498

Spring, Motion Control

$11.99

41

1-303334

Washer-Spring Disc 5/16

$2.98

42

1-809080

Screw, m10 x 1.5 x 55

$5.63

43

1-603610

Washer-Spring Disc 7/16

$5.75

44

1-603609

Bushing, clutch keeper

$30.79

45

1-413339

Sheave, Engine

$78.99

46

1-807264

KEY,MACH 1/4X1/4X2-5/8

$5.75

47

1-412325

Guide, Belt weldment

product not available CALL FOR AVAILABILITY

$0.01

48

1-413096-SL

BELT,BLADE CLUTCH WITH SLEEVE

$50.59

49

1-323278

SHEAVE-TRANSMISSION

$82.49

50

3245-41

Setscrew-1/4-20 x 3/8

$2.98

51

3256-5

Washer-7/16 Std

$0.44

52

3256-24

Washer-3/8 SAE

$0.83

53

130-8362

PULLEY-IDLER, FLAT

$38.49

54

1-803310

SCREW-SET

$2.98

55

1-323256

SHEAVE-TRANSMISSION

$79.19

56

1-413340

Spacer, Crankshaft

$10.79

57

1-323280-SL

BELT,TRANS DRIVE WITH SLEEVE

$47.29

58

322-7

SCREW-HH

$1.25

59

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

60

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23



1-412028

Sheave w/drum (48")

$148.99



3212-10

Screw-HH 7/16-20 x 2 1/2

$7.07



1-850337

Exmark red touch up spray paint

$31.89



33114-025

Screw-HH M8-1.25 x 25mm

$1.94
