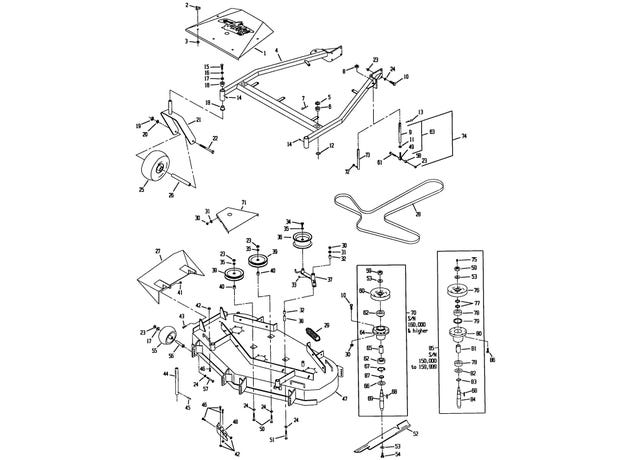

eXmark MN MHP4816BV 52" Mower Deck

1

1-414437

Shield, belt w/decals

product not available CALL FOR AVAILABILITY

$0.01

2

1-323385

Knob-3 Prong

$5.75

3

1-323417

Washer-Belt Shield

$3.47

4

1-414311

Support wld w/bushings and decals

$1,090.99

5

1-413425

SPACER-DECK SUPPORT

$7.07

6

1-513336

BUSHING-DECK

$25.29

7

1-806009

Hairpin, .177

$3.24

8

1-323539

SPACER

$2.72

9

1-613203

Link, Deck Support

$127.99

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3219-3

Nut-Hex 3/8-24

$2.07

12

32120-33

RING-RETAINING

$8.15

13

1-806006

Hairpin, cotter

$1.55

14

302-52

FITTING-GREASE

$7.31

15

323-6

Screw-HH 3/8-16 x 1

$2.98

16

3253-5

WASHER-LOCK

$0.44

17

1-373034

Washer

$3.83

18

1-303514

BEARING-FLANGED

$13.19

19

3217-9

NUT-HH

$0.74

20

3253-7

WASHER-LOCK

$1.25

21

116-7941-01

FORK, CASTER

$83.99

22

325-20

Screw-HH 1/2-13 x 6

$8.51

23

3290-357

Nut-Whizlock 3/8-16

$1.11

24

98-5975

Washer-Spring Disc 3/8

$3.71

25

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

26

1-513547

SPACER

$13.19

27

1-602571-01

Chute, discharge

$169.99

28

1-413308

Belt, deck drive

$139.99

29

116-6317

SPRING-EXTENSION

$28.59

30

3296-39

Nut-Nyloc 3/8-16

$2.98

31

3256-4

Washer-3/8 Std

$1.94

32

1-513034

SLEEVE-BEARING

$8.15

33

302-40

Zerk-90° 1/4-28

$3.59

34

3234-11

Screw-HH FLG 3/8-16 x 1

$4.55

35

3256-24

Washer-3/8 SAE

$0.83

36

116-4666

IDLER-PULLEY, FLAT

$69.29

37

1-414398

Arm, weldmt w/bushings

product not available CALL FOR AVAILABILITY

$0.01

38

1-603384

BUSHING-PIVOT, IDLER

$14.29

39

1-613098

PULLEY-IDLER

$48.39

40

1-413113

BUSHING-IDLER

$6.35

41

3296-29

Nut-Nyloc 5/16-18

$2.72

42

32128-20

Nut-Whizlock 5/16-18

$1.39

43

322-5

Screw-HH 5/16-18 x 1

$0.74

44

1-603001

Rod, deck support

$46.19

45

1-606332

Rollpin, 1/4 x 1-1/2 - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

46

322-2

Screw-HH 5/16-18 x 5/8

$2.98

47

1-414385

Deck weldmt w/decals, discharge Baffle and support rods

$2,886.99

48

1-602913-01

Baffle, Discharge

$47.29

49

1-613204

BALLJOINT

$32.99

50

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

51

1-800805

Screw-HH 3/8-16 x 3-1/2 Gr8

$5.75

52

103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99

53

1-513208

Washer-Spring Disc 5/8

$9.95

54

103-1026

SCREW-CAP

$5.75

55

1-603299

ROLLER-SCALP, ANTI

$23.09

56

1-603602

BUSHING,ROLLER

$24.19

57

98-5961

Screw-HH 3/8-16 x 4 Gr8

$5.75

58

1-603050

Spacer

$7.91

59

3219-6

Nut-Hex 5/8-18

$4.43

60

1-413424

Sheave, w/hub 6 5/16" O.D.

$70.39

61

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

62

1-513016

BEARING

$82.49

64

103-8280

Kit, Cutter Housing

$247.99

65

1-323528

SPACER-BEARING

$9.59

66

1-633573

GUARD-BEARING, BOTTOM

$5.75

67

32120-8

RING-SNAP

$3.24

68

1-807268

KEY-RECTANGLE

$2.98

69

1-413330

Shaft, Spindle

$82.99

70

1-414335

Housing, Cutter assembly

$479.99

71

103-2971-01

Shield, Belt

$72.59

72

1-803031

Nut, 3/8-24 torque

product not available CALL FOR AVAILABILITY

$0.01

74

1-411532

KIT,SUPPORT LINK W/PIN

$135.99

75

302-19

Zerk-1/4-28 Str

$2.85

76

1-413029

Pulley, w/hub

$75.89

77

1-543436

WASHER-SPACER

$1.55

78

1-303543

Cutter housing bearing

$43.99

79

1-303542

O-Ring

$3.11

80

1-413314

Housing, bearing

$158.99

81

1-513188

Spacer, bearing

$23.09

82

1-513193

Seal, mech dust

$7.67

83

1-808506

Retaining ring

$7.55

84

1-413035

Spindle

product not available CALL FOR AVAILABILITY

$0.01

86

1-809035

Screw, 3/8-16 x 1 taptite

$5.63

87

1-323533

SPACER-PULLEY/BEARING

$5.75



1-513808

TIRE

$43.99



1-513809

BEARING

$36.29



1-513810

BUSHING

$6.59



1-412317

Support weldment

product not available CALL FOR AVAILABILITY

$1.00



116-2712

Shield, Belt (1-413303-01) W/Decals

$315.99



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



1-850337

Exmark red touch up spray paint

$31.89



MK523

Mulch kit

product not available CALL FOR AVAILABILITY

$1.00
