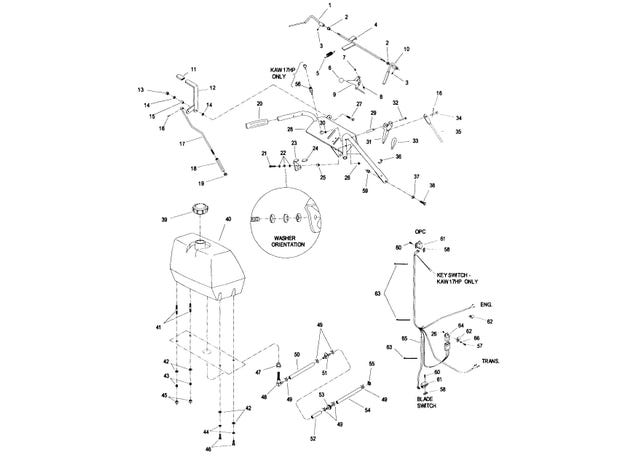

eXmark MN MHP3614KA Upper Handles & Controls

1

1-412183-03

LEVER-LH

$80.29

2

1-303365

BUSHING-NYLON

$5.75

3

1-803322

SCREW-SET

$1.55

4

1-322192-03

WLD,ROD OPC

$43.99

5

1-303363

SPRING-EXTENSION

$7.07

6

1-513592

Knob-Ball Red

$7.07

7

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

8

3296-2

Nut-Nyloc #10-24

$2.46

9

1-323129

Cable, control (throttle)

$34.23

10

1-412185-03

LEVER-RH

$75.89

11

1-303020

GRIP-LEVER

$2.98

12

116-6334

Asm, Lever (116-1736-03) W/Grip

$60.49

13

3296-39

Nut-Nyloc 3/8-16

$2.98

14

3256-4

Washer-3/8 Std

$1.94

15

1-413088

Spacer

$11.99

16

1-806003

PIN-COTTER

$1.81

17

1-413293

Rod, blade engagement

$72.59

18

1-413279

Turnbuckle, 3/8-16 SS

$46.19

19

3217-7

NUT-HEX

$0.44

20

104-9838

GRIP-FOAM

$6.35

21

321-18

SCREW-HH

$2.46

22

1-303435

Washer-Spring Disc 1/4

$1.81

23

137-9508

LATCH-LH THUMB,W/GRIP

$27.49

24

1-303019

GRIP-LATCH

$2.98

25

1-323549

SPACER

$14.29

26

3296-42

Nut-Nyloc 1/4-20

$0.59

27

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

28

103-0214

Handle weldment

$609.99

29

1-806340

PIN-ROLL

$5.75

30

1-803001

NUT-PUSH

$1.55

31

1-302006

DRIVE LEVER ASM

$57.19

32

1-808250

PIN-LEVER, DRIVE

$2.98

33

1-303021

GRIP-LEVER, DRIVE

$1.81

34

1-808286

PIN-CLEVIS

$5.75

35

1-413338

Linkage, Drive Wheel

$18.69

36

1-303088

Clip-Cable

$2.98

37

98-5975

Washer-Spring Disc 3/8

$3.71

38

323-6

Screw-HH 3/8-16 x 1

$2.98

39

1-513508

CAP-FUEL

$27.49

40

109-6930

Tank, Fuel Intermediate - DISCONTINUED

$227.89

41

1-633023

Stud-Fuel Tank

$7.07

42

3256-23

Washer-5/16 SAE

$2.59

43

1-633349

Spring-Compression

$5.75

44

1-805005

Washer-Lock 5/16 Heavy

$1.55

45

3296-29

Nut-Nyloc 5/16-18

$2.72

46

322-3

Screw-HH 5/16-18 x 3/4

$1.11

47

46-6560

BUSHING

$6.47

48

1-543277

ELBOW-TANK, FUEL

$12.09

49

1-303077

Clamp-Fuel Line

$1.55

50

1-603955

HOSE-FUEL

$5.75

51

1-603770

Valve-Fuel

$9.11

52

1-603776

HOSE-LINE, FUEL

$5.39

53

139-5916

FILTER-FUEL

$9.59

54

1-303471

LINE-FUEL

$8.51

55

1-303308

CLAMP-HOSE

$5.39

56

1-403121

SWITCH & KEY (INCLUDES NUT & WASHER)

$23.09

57

321-4

Screw-HH 1/4-20 x 3/4

$1.39

58

1-633181

Plate-Tapped

$7.07

59

3290-357

Nut-Whizlock 3/8-16

$1.11

60

3290-500

Screw-PPH #10-24 x 5/8

$1.55

61

1-513051

Switch-N.O.

$19.79

62

1-323229

CLIP-LOOM

$3.23

63

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

64

1-323430

SWITCH-MODULE-INTERLOCK

$129.99

65

1-413360

Harness, Wiring

product not available CALL FOR AVAILABILITY

$0.01

66

3256-2

Washer-1/4 Std

$0.59



137-9507

LATCH-RH THUMB,W/GRIP

$27.49



1-413428

Cable, throttle (15hp Kaw)

$67.09



1-303022

HOSE-FUEL

$5.39



1-603954

HOSE-LINE, FUEL

$9.95



1-603511

Key-Ignition

$2.72



1-413357

Harness, Wiring

product not available CALL FOR AVAILABILITY

$0.01



103-1710

Harness, Wiring - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



1-840023

Prolock, retaining type

$19.79
