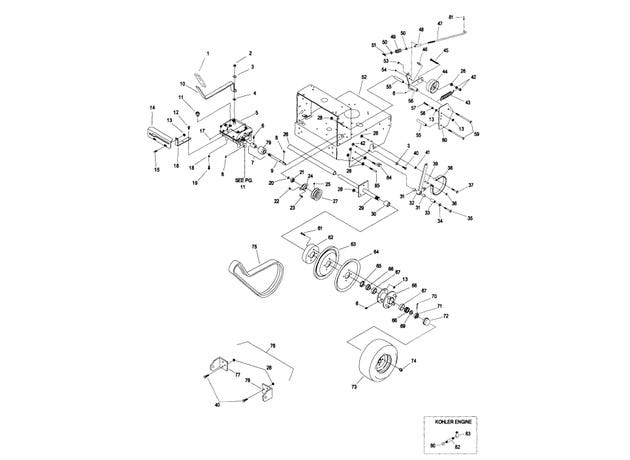

eXmark MN MHP4814KA Engine Deck Group

1

1-323250

Grip Foam

product not available CALL FOR AVAILABILITY

$0.01

2

3296-6

Nut-Nyloc 3/8-24

$1.94

3

98-5975

Washer-Spring Disc 3/8

$3.71

4

1-323379

WASHER

$3.47

5

137-4105

TRANSMISSION-5 SPEED

$522.99

6

302-19

Zerk-1/4-28 Str

$2.85

7

1-324340

Coupling, w/guard and zerk

$59.39

8

3257-5

Key-Woodruff #9 3/4 x 3/16

$5.87

9

1-323502

SHAFT-TRANSMISSION

$30.79

10

103-1606

Lever, Shift w/grip

$56.09

11

1-303282

Switch-Start, Neutral

$51.69

12

9264964

Bolt-HWH 5/16-18 x 3/4 Tap

$1.81

13

32128-20

Nut-Whizlock 5/16-18

$1.39

14

103-3498

Asm, Shifter Plate W/ Decals

$60.49

15

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

16

1-323389-03

BRACKET-PLATE, SHIFT

$31.89

17

1-323526

Ball, Stainless Steel

$2.98

18

1-805005

Washer-Lock 5/16 Heavy

$1.55

19

322-3

Screw-HH 5/16-18 x 3/4

$1.11

20

32151-62

Ring-Retaining

$1.94

21

1-323252

BEARING-SHAFT

$18.69

22

3296-42

Nut-Nyloc 1/4-20

$0.59

23

321-3

Screw-HH 1/4-20 x 5/8

$1.55

24

1-323254

FLANGE-OUTPUT

$11.99

25

1-803310

SCREW-SET

$2.98

26

1-413355-03

Sleeve, Axle

$57.19

27

103-6513

SHEAVE,TRANS OUTPUT

$137.99

28

3290-357

Nut-Whizlock 3/8-16

$1.11

29

1-412376-03

Axle Weldment

$83.99

30

1-543556

Spacer, wheel (short)

$11.99

31

1-413347

SLEEVE-BUSHING

$2.98

32

1-414375

LEVER ASM-RH

product not available CALL FOR AVAILABILITY

$0.01

33

1-413344

Bushing-Pivot

$19.79

34

3256-4

Washer-3/8 Std

$1.94

35

323-10

Screw-HH 3/8-16 x 2

$0.97

36

1-803051

RING-RETAIN

$2.98

37

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

38

1-323262

BAND-BRAKE

$81.99

39

1-323307

PIN-CLEVIS

$5.75

40

323-6

Screw-HH 3/8-16 x 1

$2.98

41

3218-3

NUT-JAM

$0.74

42

3296-39

Nut-Nyloc 3/8-16

$2.98

43

1-603402

SPRING-EXTENSION

$8.87

44

1-323277

IDLER-WHEEL, DRIVE

$32.99

45

99-8664

SCREW-HH

$1.94

46

1-323368

Swivel, Short

product not available CALL FOR AVAILABILITY

$0.01

47

1-323548

Linkage-Brake

$27.49

48

110-5866

SWIVEL-BRAKE

$25.29

49

1-323245

Spring-Compression

$7.07

50

3256-23

Washer-5/16 SAE

$2.59

51

1-513959

WINGNUT-NYLOCK

$7.07

52

1-412373

Deck, Weldmt Engine

product not available CALL FOR AVAILABILITY

$1.00

53

32151-47

RING-RETAINING

$3.24

54

32151-73

RING-CLIP

$3.11

55

1-323283

SPACER-SHIELD

$9.59

56

1-412379-03

WLD,ARM RH

product not available CALL FOR AVAILABILITY

$0.01

57

322-7

SCREW-HH

$1.25

58

3296-29

Nut-Nyloc 5/16-18

$2.72

59

323-39

Screw-HH 3/8-16 x 5

$12.09

60

1-413359-01

SHIELD,WHEEL DRIVE

product not available CALL FOR AVAILABILITY

$0.01

61

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

62

1-323261

DRUM-BRAKE

$19.79

63

1-413331

Sheave, Wheel Drive w/offset

$310.99

64

1-413332

Sheave, Wheel Drive

$88.99

65

1-543511

Seal-Grease

$12.09

66

1-543509

Cone-Bearing Tapered Roller

$14.29

67

1-543508

Cup-Bearing Tapered Roller

$8.51

68

1-413333

HUB/WHEEL ASM

$177.99

69

1-523157

Washer

$1.81

70

1-806800

Pin-Cotter 9/64 x 1 1/2

$2.98

71

1-809082

NUT-SHH

$15.39

72

1-543513

CAP-GREASE

$8.75

73

1-413473

Wheel And Tire ASM

$189.99

74

242-50

Nut-Lug 1/2-20

$2.11

75

1-413341-SL

BELT,WHEEL DRIVE BANDED WITH SLEEVE

$116.99

76

1-411255

Kit, Sulky Hitch

product not available CALL FOR AVAILABILITY

$1.00

77

1-413252-01

Bracket, sulky LH

product not available CALL FOR AVAILABILITY

$0.01

78

1-413254-01

Bracket, sulky RH

$64.89

79

51-4220

GUARD-COUPLER

$19.79

80

1-543233

CAP,3/8NPT HEX

$16.49

81

1-806003

PIN-COTTER

$1.81

82

1-323326

NIPPLE,3/8 NPT SCH40

$13.19

83

1-303431

FITTING-90 DEG

$32.99

84

1-412358

SCRAPER

$32.99

85

1-413353

Pin, Threaded

product not available CALL FOR AVAILABILITY

$0.01



1-414374

LEVER ASM-LH

$83.99



103-2140

KIT,LH ARM WLD

$114.99



107-2475

WHEEL

$74.79



1-413474

Tire-Turfmaster

$124.99



1-840022

Pro-Lock,Nut Type (.5cc Tube)

$18.69



1-850337

Exmark red touch up spray paint

$31.89
