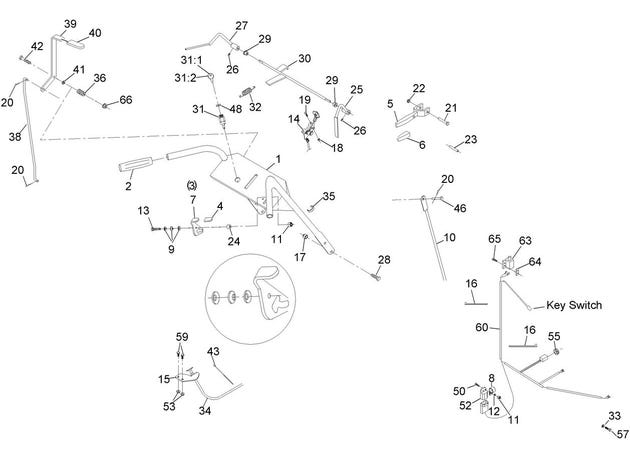

eXmark MN MG481KA322P Pistol Grip Upper Handle and Controls

1

109-4695

KIT,HANDLE W/DECALS METRO

$491.99

2

104-9838

GRIP-FOAM

$6.35

3

137-9508

LATCH-LH THUMB,W/GRIP

$27.49

4

1-303019

GRIP-LATCH

$2.98

5

1-302006

DRIVE LEVER ASM

$57.19

6

1-303021

GRIP-LEVER, DRIVE

$1.81

7

137-9507

LATCH-RH THUMB,W/GRIP

$27.49

8

1-323229

CLIP-LOOM

$3.23

9

1-303435

Washer-Spring Disc 1/4

$1.81

10

1-323359

Linkage-Wheel, Drive

$21.99

11

3296-42

Nut-Nyloc 1/4-20

$0.59

12

3256-22

Washer-1/4 SAE

$0.59

13

321-18

SCREW-HH

$2.46

14

116-2426

CONTROL, THROTTLE

$47.29

15

103-1797-01

Bracket-Cable, Choke

$9.95

16

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

17

3296-39

Nut-Nyloc 3/8-16

$2.98

18

3296-2

Nut-Nyloc #10-24

$2.46

19

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

20

1-806003

PIN-COTTER

$1.81

21

1-808250

PIN-LEVER, DRIVE

$2.98

22

1-803001

NUT-PUSH

$1.55

23

1-806340

PIN-ROLL

$5.75

24

1-323549

SPACER

$14.29

25

1-412185-03

LEVER-RH

$75.89

26

1-803322

SCREW-SET

$1.55

27

1-412183-03

LEVER-LH

$80.29

28

323-6

Screw-HH 3/8-16 x 1

$2.98

29

1-303365

BUSHING-NYLON

$5.75

30

1-322192-03

WLD,ROD OPC

$43.99

31

1-403121

SWITCH & KEY (INCLUDES NUT & WASHER)

$23.09

31:1

1-603511

Key-Ignition

$2.72

31:2

103-2106

Key-Exmark Logo

$5.75

32

1-303363

SPRING-EXTENSION

$7.07

33

33094-00

Washer

$0.14

34

103-1796

Cable-Choke

$45.09

35

1-303088

Clip-Cable

$2.98

36

1-303160

SPRING-COMPRESSION

$7.07

38

1-323298

Linkage-Blade, Upper

$83.99

39

116-6331

LEVER ASM

$56.09

40

1-303020

GRIP-LEVER

$2.98

41

3256-4

Washer-3/8 Std

$1.94

42

323-10

Screw-HH 3/8-16 x 2

$0.97

43

3290-378

Tie-Cable

$1.11

46

1-808286

PIN-CLEVIS

$5.75

48

103-0498

Nut-Ignition

$3.59

50

321-4

Screw-HH 1/4-20 x 3/4

$1.39

52

1-323430

SWITCH-MODULE-INTERLOCK

$129.99

53

32128-33

Nut-Whizlock 1/4-20

$0.97

55

1-543296

GROMMET

$9.35

57

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

59

321-3

Screw-HH 1/4-20 x 5/8

$1.55

60

116-2661

HARNESS-WIRE

$88.99

63

1-513051

Switch-N.O.

$19.79

64

1-633181

Plate-Tapped

$7.07

65

3290-500

Screw-PPH #10-24 x 5/8

$1.55

66

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55
