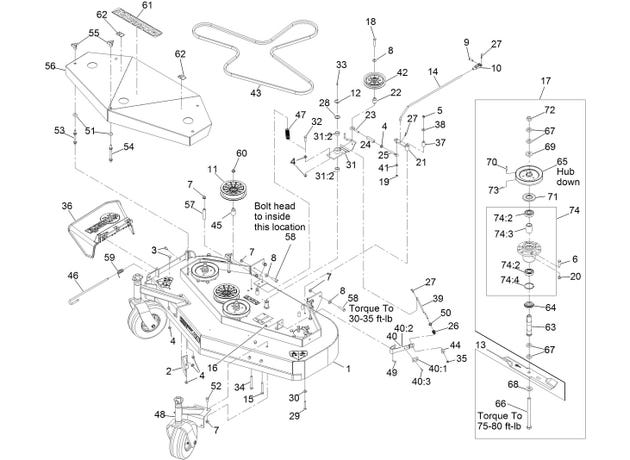

eXmark MN MGS481CKA48300 Deck Assembly

1

1-404257

Deck w/decals and dogleg

$2,303.99

2

116-1729-01

BAFFLE-DOGLEG

$26.39

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

3296-29

Nut-Nyloc 5/16-18

$2.72

6

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

7

3290-357

Nut-Whizlock 3/8-16

$1.11

8

98-5975

Washer-Spring Disc 3/8

$3.71

9

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

10

1-303105

Yoke-Adjustable

$13.19

11

109-0977

PULLEY,IDLER 5"

$75.89

12

32151-103

E-Ring

$3.47

13

103-1577-S

SPK, BLADE SOLID 16.25

$38.49

13

116-5178-S

SPK,BLADE-EXTREME 2, 16.25"

$37.39

13

103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99

13

103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99

13

103-6581-S

SPK, BLADE MULCH 16.25

$35.19

14

1-323303

ARM-ASSIST, LINKAGE

$25.29

15

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

16

3296-42

Nut-Nyloc 1/4-20

$0.59

17

103-8387

Asm, Cutter Housing Complete

$507.99

18

702809

SCREW-HH

$5.75

19

32120-35

E-Ring

$4.55

20

3296-39

Nut-Nyloc 3/8-16

$2.98

21

1-322235

ARM-ASSIST, 32/36

$56.09

22

1-303434

BUSHING-ENGAGEMENT

$15.39

23

1-303348

EYEBOLT-THREAD, LH

$7.07

24

1-303236

BODY-TURNBUCKLE

$21.99

25

1-303238

EYEBOLT-THREAD, RH

$7.07

26

1-323747

SPRING-COMPRESSION

$3.47

27

1-806003

PIN-COTTER

$1.81

28

1-303352

WASHER-SPINDLE

$2.98

29

322-10

SCREW-HH

$1.11

30

1-303334

Washer-Spring Disc 5/16

$2.98

31

103-3600

Idler Arm ASM

$123.99

31:2

1-323729

SLEEVE-BEARING

$5.75

32

116-3515

SCREW-HH, SPECIAL

$1.42

33

302-19

Zerk-1/4-28 Str

$2.85

34

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

35

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

36

109-5151

Deflector-Discharge

$54.99

37

1-403179

TUBE-PIVOT

$18.69

38

3256-3

Washer-5/16 Std

$0.74

39

1-323714

ROD-BRAKE

$28.59

40:1

1-323709

PAD-BRAKE

$28.59

40:2

1-324372

PAD AND SPRING ASM

$70.39

40:3

103-0138

Rivet 3/16 x 1/2

$1.55

41

3256-23

Washer-5/16 SAE

$2.59

42

132-4718

PULLEY-IDLER, FLAT

$34.09

43

1-403174-SL

BELT,BLADE 48 WITH SLEEVE

$87.99

44

1-323746

SPACER-FLANGED

$1.68

45

1-413113

BUSHING-IDLER

$6.35

46

109-8854

PIN-CHUTE

$16.49

47

1-323071

SPRING-EXTENSION

$16.49

48

116-8245

ASM-CASTER MNT W/WEIGHT

$677.99

49

321-4

Screw-HH 1/4-20 x 3/4

$1.39

50

1-323748

RING-PUSH ON

$1.94

51

1-323417

Washer-Belt Shield

$3.47

52

323-4

Screw-HH 3/8-16 x 3/4

$4.31

53

1-303537

STUD-SHIELD, BELT (SHORT)

$7.07

54

1-303536

STUD-SHIELD, BELT (LONG)

$8.51

55

1-323385

Knob-3 Prong

$5.75

56

116-2707

ASM,SHIELD W/DECALS 48 METRO

$465.99

57

1-403188

SPACER

$15.39

58

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

59

116-0962

Spring, Torsion

$9.59

60

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

61

126-6890

DECAL-METRO

$23.09

62

106-5517

DECAL-WARNING

$5.75

63

1-323529

TUBE-SPINDLE, SHORT

$82.99

64

103-2535

Spacer-Guard Bottom

$13.19

65

1-403183

SHEAVE

$71.49

66

1-800861

SCREW-CAP, HH

$19.79

67

1-323539

SPACER

$2.72

68

1-513208

Washer-Spring Disc 5/8

$9.95

69

1-323339

Washer

$5.75

70

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

71

103-1330

Guard-Bearing Top

$5.75

72

3219-6

Nut-Hex 5/8-18

$4.43

73

3246-18

Setscrew-5/16-18 x 3/8

$5.75

74

103-8280

Kit, Cutter Housing

$247.99

74:2

103-2477

BEARING-JACKSHAFT

$60.49

74:3

103-2534

Spacer-Bearing

$9.59

74:4

32120-8

RING-SNAP

$3.24
