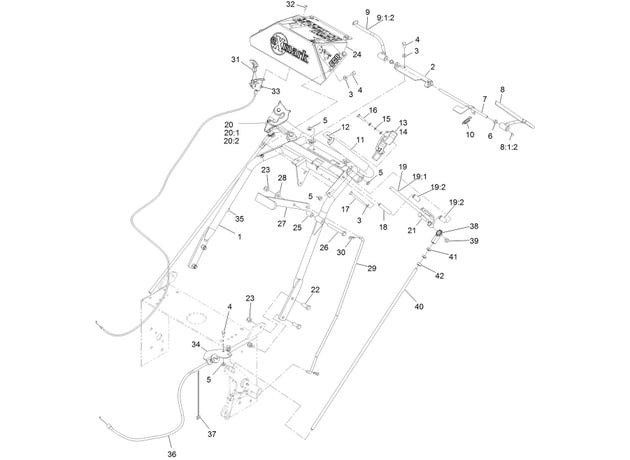

eXmark MN MGS481CKA36200 ECS Upper Handle and Controls

1

103-0770-03

Handle weldment

$592.99

2

103-0489-03

Bracket, opc axle

$24.19

3

3256-22

Washer-1/4 SAE

$0.59

4

321-3

Screw-HH 1/4-20 x 5/8

$1.55

5

32128-33

Nut-Whizlock 1/4-20

$0.97

6

1-303365

BUSHING-NYLON

$5.75

7

103-0769-03

Rod weldment, OPC

$43.99

8

116-4079

WLD,LH OPC LEVER

$35.19

9

116-4080

WLD,RH OPC LEVER

$35.19

9:1:2

1-803322

SCREW-SET

$1.55

10

1-303363

SPRING-EXTENSION

$7.07

11

103-0815

GRIP-BAR, HANDLE

$12.09

12

126-2925

PIN-SPRING

$1.55

13

103-1631

Latch, thumb LH

$35.19

14

103-1630

Latch, thumb RH

$35.19

15

1-303435

Washer-Spring Disc 1/4

$1.81

16

103-0235

SCREW-HH

$1.55

17

321-14

SCREW-HH

$5.39

18

103-0027

BUSHING-LEVER, DRIVE

$20.89

19

103-2514

Asm, Drive Lever LH

$118.99

19:1

116-4081

WLD,LH DRIVE LEVER

$52.79

20

103-2513

Asm, Drive Lever RH

$118.99

20:1

116-4082

WLD,RH DRIVE LEVER

$52.79

20:2

126-9366

BUSHING, SLEEVE

$3.24

21

322-9

Screw-HH 5/16-18 x 1 3/4

$3.71

22

323-6

Screw-HH 3/8-16 x 1

$2.98

23

3296-39

Nut-Nyloc 3/8-16

$2.98

24

109-4934

Asm, Console (109-4649-03) W/Decals

$237.99

25

1-633080

Spacer

$11.99

26

323-14

Screw-HH 3/8-16 x 3

$4.31

27

103-1629

Clutch Lever w/Grip

$20.89

28

3256-4

Washer-3/8 Std

$1.94

29

103-1627

Linkage, Upper

$18.69

30

1-806003

PIN-COTTER

$1.81

31

116-2426

CONTROL, THROTTLE

$47.29

31

116-2426RT02

CONTROL, THROTTLE

product not available CALL FOR AVAILABILITY

$1.00

32

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

33

3296-2

Nut-Nyloc #10-24

$2.46

34

103-1797-01

Bracket-Cable, Choke

$9.95

35

1-303088

Clip-Cable

$2.98

36

103-1796

Cable-Choke

$45.09

36

103-1796RT01

CABLE-CHOKE

product not available CALL FOR AVAILABILITY

$1.00

37

3290-378

Tie-Cable

$1.11

38

103-2463

JOINT-BALL, END

$28.59

39

3296-29

Nut-Nyloc 5/16-18

$2.72

40

103-1604

Linkage, Wheel Drive

$24.19

41

3220-3

Nut-Jam 3/8-24

$0.44

42

3219-3

Nut-Hex 3/8-24

$2.07
