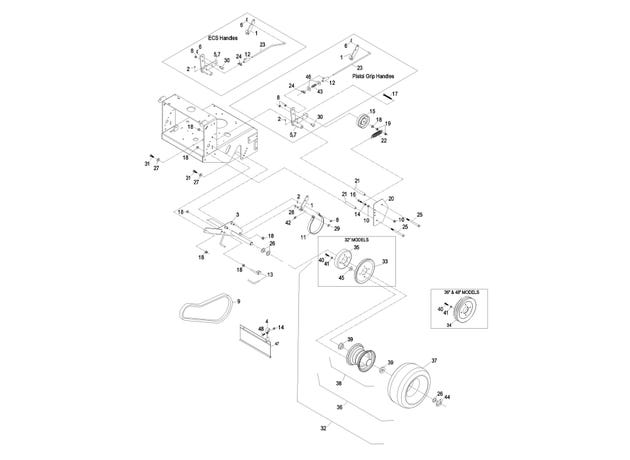

eXmark MN M17KA483CA Engine Deck Group (Cont.)

1

103-1611-03

ARM-BRAKE

$67.09

2

302-19

Zerk-1/4-28 Str

$2.85

3

1-322117-03

Axle

$335.99

4

2412-104

CLAMP-R

$7.91

5

116-7542-03

ARM-IDLER, LH

$77.99

6

1-806003

PIN-COTTER

$1.81

7

116-7543-03

ARM-IDLER, RH

$77.99

8

32151-47

RING-RETAINING

$3.24

9

1-323288-SL

BELT,WHEEL DRIVE WITH SLEEVE

$115.99

10

32128-20

Nut-Whizlock 5/16-18

$1.39

11

1-323262

BAND-BRAKE

$81.99

12

110-5866

SWIVEL-BRAKE

$25.29

13

1-412358

SCRAPER

$32.99

14

3296-29

Nut-Nyloc 5/16-18

$2.72

15

1-323277

IDLER-WHEEL, DRIVE

$32.99

16

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

17

99-8664

SCREW-HH

$1.94

18

3290-357

Nut-Whizlock 3/8-16

$1.11

19

3296-39

Nut-Nyloc 3/8-16

$2.98

20

1-323287-01

Shield-Wheel, Drive

$49.49

21

1-323283

SPACER-SHIELD

$9.59

22

1-603402

SPRING-EXTENSION

$8.87

23

1-323548

Linkage-Brake

$27.49

24

1-513959

WINGNUT-NYLOCK

$7.07

25

323-39

Screw-HH 3/8-16 x 5

$12.09

26

1-523157

Washer

$1.81

27

98-5975

Washer-Spring Disc 3/8

$3.71

28

1-323307

PIN-CLEVIS

$5.75

29

1-803051

RING-RETAIN

$2.98

30

103-1864

Swivel-Lever, Drive

$12.09

31

323-6

Screw-HH 3/8-16 x 1

$2.98

32

109-4721

Asm, Wheel Drive (36"&48" Models)

$263.99

33

1-323349

SHEAVE-WHEEL, DRIVE

$63.79

34

109-4359

DRUM AND SHEAVE ASM

$75.99

35

1-323261

DRUM-BRAKE

$19.79

36

1-323719

Wheel and Tire ASM

$207.99

37

1-323720

Tire-Turfmaster

$102.99

38

1-323328

WHEEL AND HUB ASM

$154.99

39

1-323329

BEARING-FLANGED

$63.79

40

322-5

Screw-HH 5/16-18 x 1

$0.74

41

1-805005

Washer-Lock 5/16 Heavy

$1.55

42

32120-47

RING-RETAINING, EXTERNAL

$1.55

43

1-323245

Spring-Compression

$7.07

44

1-808519

RING-SNAP

$2.98

45

1-373034

Washer

$3.83

46

3256-23

Washer-5/16 SAE

$2.59

47

98-3259

SHIELD-TRAILING

$72.59

48

322-3

Screw-HH 5/16-18 x 3/4

$1.11



1-323352

IDLER-WHEEL, DRIVE

$27.49



1-603430

Scraper

$19.79



1-323344

Belt-Wheel, Drive

$71.49



1-322141-03

Axle

$441.99



103-1619

Linkage,LH Brake

$18.69



103-1620

Linkage,RH Brake

$18.69



1-543436

WASHER-SPACER

$1.55



103-1618

Swivel, Short

$18.69



126-4481

DRIVE WHEEL ASM

$247.99



130-8366

WHEEL AND TIRE ASM

$166.99



1-323361

TIRE

$81.39



1-323360

WHEEL AND HUB ASM

$121.99
