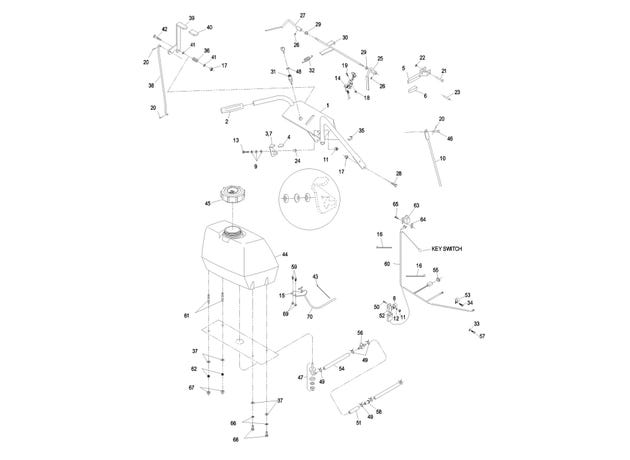

eXmark MN M17KA483CA Pistol Grip Upper Handles and Controls

1

109-4695

KIT,HANDLE W/DECALS METRO

$491.99

2

104-9838

GRIP-FOAM

$6.35

3

137-9508

LATCH-LH THUMB,W/GRIP

$27.49

4

1-303019

GRIP-LATCH

$2.98

5

1-302006

DRIVE LEVER ASM

$57.19

6

1-303021

GRIP-LEVER, DRIVE

$1.81

7

137-9507

LATCH-RH THUMB,W/GRIP

$27.49

8

1-323229

CLIP-LOOM

$3.23

9

1-303435

Washer-Spring Disc 1/4

$1.81

10

1-323359

Linkage-Wheel, Drive

$21.99

11

3296-42

Nut-Nyloc 1/4-20

$0.59

12

3256-22

Washer-1/4 SAE

$0.59

13

321-18

SCREW-HH

$2.46

14

109-3958

CONTROL-THROTTLE

$41.79

15

103-1797-01

Bracket-Cable, Choke

$9.95

16

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

17

3296-39

Nut-Nyloc 3/8-16

$2.98

18

3296-2

Nut-Nyloc #10-24

$2.46

19

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

20

1-806003

PIN-COTTER

$1.81

21

1-808250

PIN-LEVER, DRIVE

$2.98

22

1-803001

NUT-PUSH

$1.55

23

1-806340

PIN-ROLL

$5.75

24

1-323549

SPACER

$14.29

25

1-412185-03

LEVER-RH

$75.89

26

1-803322

SCREW-SET

$1.55

27

1-412183-03

LEVER-LH

$80.29

28

323-6

Screw-HH 3/8-16 x 1

$2.98

29

1-303365

BUSHING-NYLON

$5.75

30

1-322192-03

WLD,ROD OPC

$43.99

31

1-403121

SWITCH & KEY (INCLUDES NUT & WASHER)

$23.09

32

1-303363

SPRING-EXTENSION

$7.07

33

1-805004

Washer-Lock 1/4 Heavy

$1.55

34

33114-016

Screw-HH M8-1.25 x 16mm

$0.74

35

1-303088

Clip-Cable

$2.98

36

1-303160

SPRING-COMPRESSION

$7.07

37

3256-23

Washer-5/16 SAE

$2.59

38

1-323298

Linkage-Blade, Upper

$83.99

39

116-6331

LEVER ASM

$56.09

40

1-303020

GRIP-LEVER

$2.98

41

3256-4

Washer-3/8 Std

$1.94

42

323-10

Screw-HH 3/8-16 x 2

$0.97

43

3290-378

Tie-Cable

$1.11

44

103-2893

Asm, Fuel Tank W/Fitting

$258.99

45

109-0346

CAP-FUEL, GAS

$21.99

46

1-808286

PIN-CLEVIS

$5.75

47

103-2605

Fitting-Fuel Bulkhead W/Strainer

$37.39

48

103-0498

Nut-Ignition

$3.59

49

1-303077

Clamp-Fuel Line

$1.55

50

321-4

Screw-HH 1/4-20 x 3/4

$1.39

51

109-0306

HOSE-FUEL

$5.75

52

1-323430

SWITCH-MODULE-INTERLOCK

$129.99

53

1-413510

Clip-Loom

$2.98

54

109-0293

Hose-Fuel Line 8 1/2"

$7.07

55

1-543296

GROMMET

$9.35

56

1-603770

Valve-Fuel

$9.11

57

33113-016

SCREW-HH

$0.59

59

321-3

Screw-HH 1/4-20 x 5/8

$1.55

60

103-1610

HARNESS-WIRING

$100.99

61

1-633023

Stud-Fuel Tank

$7.07

62

1-633349

Spring-Compression

$5.75

63

1-513051

Switch-N.O.

$19.79

64

1-633181

Plate-Tapped

$7.07

65

3290-500

Screw-PPH #10-24 x 5/8

$1.55

66

1-805005

Washer-Lock 5/16 Heavy

$1.55

67

3296-47

Nut-Nyloc 5/16-18 Thin

$4.31

68

322-3

Screw-HH 5/16-18 x 3/4

$1.11

69

32128-33

Nut-Whizlock 1/4-20

$0.97

70

103-1796

Cable-Choke

$45.09



1-603511

Key-Ignition

$2.72



103-2106

Key-Exmark Logo

$5.75
