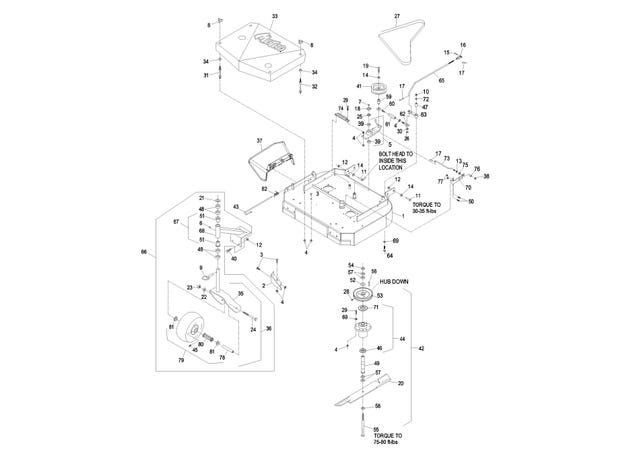

eXmark MN M17KA362CA 32in and 36in Mower Deck

1

103-2312

Deck w/decals and dogleg

$2,310.99

2

1-302189-01

BAFFLE-DOGLEG

$50.59

3

322-2

Screw-HH 5/16-18 x 5/8

$2.98

4

32128-20

Nut-Whizlock 5/16-18

$1.39

5

103-3600

Idler Arm ASM

$123.99

6

302-52

FITTING-GREASE

$7.31

7

302-19

Zerk-1/4-28 Str

$2.85

8

1-323385

Knob-3 Prong

$5.75

9

1-809020

PIN

$12.09

10

3296-29

Nut-Nyloc 5/16-18

$2.72

11

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

12

3290-357

Nut-Whizlock 3/8-16

$1.11

13

1-323748

RING-PUSH ON

$1.94

14

98-5975

Washer-Spring Disc 3/8

$3.71

15

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

16

1-303105

Yoke-Adjustable

$13.19

17

1-806003

PIN-COTTER

$1.81

18

32151-103

E-Ring

$3.47

19

702809

SCREW-HH

$5.75

20

103-6584-S

SPK, BLADE NOTCHED 18.00

$32.99

21

1-513338

WASHER-FLAT

$4.55

22

3253-7

WASHER-LOCK

$1.25

23

3217-9

NUT-HH

$0.74

24

325-20

Screw-HH 1/2-13 x 6

$8.51

25

1-303352

WASHER-SPINDLE

$2.98

26

32120-35

E-Ring

$4.55

27

1-323733-SL

BELT,BLADE METRO 36 WITH SLEEVE

$80.29

28

1-803310

SCREW-SET

$2.98

29

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

30

3256-23

Washer-5/16 SAE

$2.59

31

1-303537

STUD-SHIELD, BELT (SHORT)

$7.07

32

1-303536

STUD-SHIELD, BELT (LONG)

$8.51

33

116-2706

ASM,SHIELD W/DECALS 36 METRO

$416.99

34

1-323417

Washer-Belt Shield

$3.47

35

116-7942-01

FORK-CASTER

$88.99

36

103-1236

Caster wheel assembly

$192.99

37

109-5151

Deflector-Discharge

$54.99

38

3296-56

Nut-Nyloc 1/4-20 Thin

$2.72

39

1-323729

SLEEVE-BEARING

$5.75

40

323-4

Screw-HH 3/8-16 x 3/4

$4.31

41

132-4718

PULLEY-IDLER, FLAT

$34.09

42

103-8387

Asm, Cutter Housing Complete

$507.99

43

109-8854

PIN-CHUTE

$16.49

44

103-8280

Kit, Cutter Housing

$247.99

45

302-61

FITTING-GREASE

$12.09

46

103-2535

Spacer-Guard Bottom

$13.19

47

1-403179

TUBE-PIVOT

$18.69

48

1-303314

SPACER-CASTER

$7.07

49

1-323529

TUBE-SPINDLE, SHORT

$82.99

50

321-4

Screw-HH 1/4-20 x 3/4

$1.39

51

1-303514

BEARING-FLANGED

$13.19

52

1-323339

Washer

$5.75

53

1-403183

SHEAVE

$71.49

54

3219-6

Nut-Hex 5/8-18

$4.43

55

1-800861

SCREW-CAP, HH

$19.79

56

1-807267

Key-Machine 1/4 x 3/16 x 1 1/4

$2.98

57

1-323539

SPACER

$2.72

58

1-513208

Washer-Spring Disc 5/8

$9.95

59

1-303434

BUSHING-ENGAGEMENT

$15.39

60

1-303348

EYEBOLT-THREAD, LH

$7.07

61

1-303236

BODY-TURNBUCKLE

$21.99

62

1-303238

EYEBOLT-THREAD, RH

$7.07

63

1-322235

ARM-ASSIST, 32/36

$56.09

64

322-10

SCREW-HH

$1.11

65

1-323303

ARM-ASSIST, LINKAGE

$25.29

66

103-1238

ASM,CASTER/MOUNT

$302.99

68

1-302203

SUPPORT ASM

$249.99

69

1-303334

Washer-Spring Disc 5/16

$2.98

70

1-324372

PAD AND SPRING ASM

$70.39

71

103-1330

Guard-Bearing Top

$5.75

72

3256-3

Washer-5/16 Std

$0.74

73

1-323715

ROD-BRAKE

$26.39

74

1-323071

SPRING-EXTENSION

$16.49

75

1-323747

SPRING-COMPRESSION

$3.47

76

1-323746

SPACER-FLANGED

$1.68

77

3296-42

Nut-Nyloc 1/4-20

$0.59

78

1-513547

SPACER

$13.19

79

103-2171

Kit,semi-pneumatic wheel replacement

$120.99

80

1-513809

BEARING

$36.29

81

1-513810

BUSHING

$6.59

82

116-0962

Spring, Torsion

$9.59



116-0799

Deck (116-0618-01) W/Decals & Dogleg & Discharge Deflector (32)

product not available CALL FOR AVAILABILITY

$1.00



103-6738-S

SPK, BLADE LOW LIFT 16.25

$32.99



103-1577-S

SPK, BLADE SOLID 16.25

$38.49



116-5178-S

SPK,BLADE-EXTREME 2, 16.25"

$37.39



103-6581-S

SPK, BLADE MULCH 16.25

$35.19



103-6583-S

SPK, BLADE NOTCHED 16.25

$32.99



116-5176-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89



103-1578-S

SPK, BLADE SOLID 18.0

$38.49



103-6580-S

SPK, BLADE LOW LIFT 18.0

$35.19



103-6582-S

SPK, BLADE MULCH 18.0

$32.99



1-323734-SL

BELT,BLADE METRO 32 WITH SLEEVE

$83.99



1-324194

Shield w/decals

product not available CALL FOR AVAILABILITY

$0.01



103-2296

Caster whl support w/bearings, weighted

$275.99



116-8245

ASM-CASTER MNT W/WEIGHT

$677.99



1-323718

Rod-Brake

$26.39
