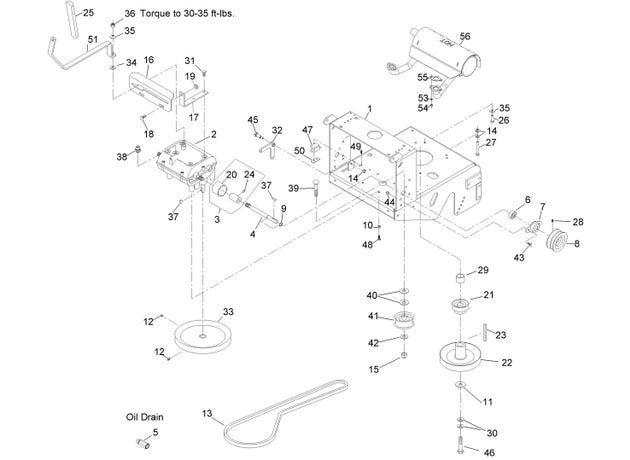

eXmark MN MG16KA483CA Engine Deck Assembly

1

116-6131

ASM, METRO ENGINE DECK W/DECALS

$830.99

2

137-4105

TRANSMISSION-5 SPEED

$522.99

3

1-324340

Coupling, w/guard and zerk

$59.39

4

1-323502

SHAFT-TRANSMISSION

$30.79

5

103-2587

Adapter

$26.39

6

1-323252

BEARING-SHAFT

$18.69

7

1-323254

FLANGE-OUTPUT

$11.99

8

103-6511

SHEAVE-TRANSMISSION

$110.99

9

32151-62

Ring-Retaining

$1.94

10

1-805005

Washer-Lock 5/16 Heavy

$1.55

11

1-373034

Washer

$3.83

12

3245-41

Setscrew-1/4-20 x 3/8

$2.98

13

1-323280-SL

BELT,TRANS DRIVE WITH SLEEVE

$47.29

14

3290-357

Nut-Whizlock 3/8-16

$1.11

15

3296-39

Nut-Nyloc 3/8-16

$2.98

16

103-3498

Asm, Shifter Plate W/ Decals

$60.49

17

1-323389-03

BRACKET-PLATE, SHIFT

$31.89

18

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

19

32128-20

Nut-Whizlock 5/16-18

$1.39

20

51-4220

GUARD-COUPLER

$19.79

21

103-1666

Sheave-Transmission

$42.89

22

1-403160

SHEAVE

$82.49

23

103-4177

KEY

$5.75

24

302-19

Zerk-1/4-28 Str

$2.85

25

103-1733

Grip Foam

$15.39

26

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

27

323-13

Screw-HH 3/8-16 x 2 3/4

$4.19

28

1-803310

SCREW-SET

$2.98

29

1-633453

SPACER-CLUTCH

$19.79

30

1-603610

Washer-Spring Disc 7/16

$5.75

31

9264964

Bolt-HWH 5/16-18 x 3/4 Tap

$1.81

32

1-303186

BELLCRANK

$59.39

33

1-323278

SHEAVE-TRANSMISSION

$82.49

34

1-323379

WASHER

$3.47

35

98-5975

Washer-Spring Disc 3/8

$3.71

36

3296-6

Nut-Nyloc 3/8-24

$1.94

37

3257-5

Key-Woodruff #9 3/4 x 3/16

$5.87

38

1-303282

Switch-Start, Neutral

$51.69

39

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23

40

3256-5

Washer-7/16 Std

$0.44

41

130-8362

PULLEY-IDLER, FLAT

$38.49

42

3256-24

Washer-3/8 SAE

$0.83

43

321-3

Screw-HH 1/4-20 x 5/8

$1.55

44

3296-42

Nut-Nyloc 1/4-20

$0.59

45

1-603403

BOLT-SHOULDER

$17.59

46

116-3702

SCREW-HH

$5.75

47

1-513051

Switch-N.O.

$19.79

48

322-3

Screw-HH 5/16-18 x 3/4

$1.11

49

3290-500

Screw-PPH #10-24 x 5/8

$1.55

50

1-633181

Plate-Tapped

$7.07

51

103-1606

Lever, Shift w/grip

$56.09

53

114-3550

WASHER-LOCK

$1.55

54

114-3549

Nut-M8

$3.23

55

1-653313

GASKET-EXHAUST

$5.03

56

116-4397

Muffler

$398.99
