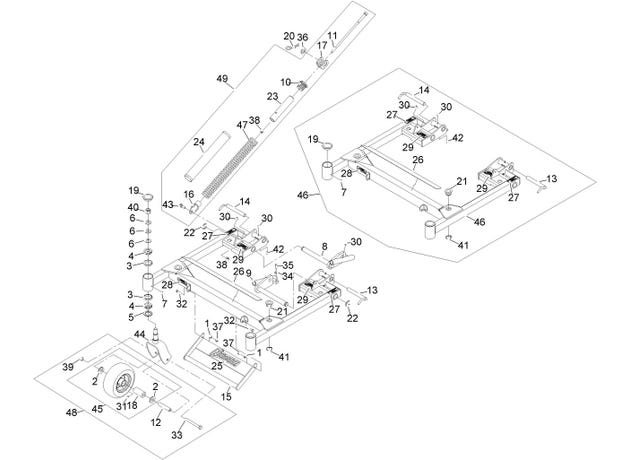

eXmark MN CD48CD Front Frame Assembly

1

1-303334

Washer-Spring Disc 5/16

$2.98

2

1-513810

BUSHING

$6.59

3

1-543508

Cup-Bearing Tapered Roller

$8.51

4

1-543509

Cone-Bearing Tapered Roller

$14.29

5

1-543511

Seal-Grease

$12.09

6

1-633508

Washer-Spring Disc

$3.83

7

1-811010

Plug

$5.75

8

103-3729-01

PIVOT-DECK, RH

$252.99

9

103-3732-01

PIVOT-DECK, LH

$252.99

10

103-3772

PLUG-ADJUSTER, SPRING

$81.99

11

103-3773

SHAFT-ADJUSTMENT, SPRING

$134.99

12

109-2094

SPACER-CASTER, FRONT

$17.59

13

103-4118

LOCK-DECK, LH

$53.89

14

103-4119

LOCK-DECK, RH

$53.89

15

103-9482

ASM,DECK LIFT HANDLE W/DECAL

$145.99

16

103-4284

TENSIONER-SPRING

$62.69

17

103-4285

MOUNT-LIFT ASSIST, DECK

$17.59

18

103-4588

BEARING-ROLLER, STRAIGHT

$36.29

19

103-4882

CAP-GREASE

$8.51

20

103-7353

PIN-CUT HEIGHT

$12.09

21

103-7436

BUSHING-SUPPORT, DECK

$23.09

22

1-808519

RING-SNAP

$2.98

23

103-7865

SPRING-TUBE

$95.99

24

103-7971

COVER-SPRING, DECK

$46.19

25

103-8504

DECAL,NAVIGATOR MODEL

$26.39

26

103-8630

PAD-ANTI SKID

$19.79

27

103-8797

DECAL-FOLDING DECK

$16.49

28

103-8798

DECAL-DANGER

$16.49

29

103-8799

DECAL-SPRING

$9.35

30

302-19

Zerk-1/4-28 Str

$2.85

31

302-61

FITTING-GREASE

$12.09

32

322-4

Screw-HH 5/16-18 x 7/8

$0.83

33

325-19

Screw-HH 1/2-13 x 5

$9.35

34

3218-3

NUT-JAM

$0.74

35

3243-5

Setscrew-SQH 3/8-16 x 1

$2.98

36

3256-28

Washer-3/4 SAE

$3.95

37

3296-29

Nut-Nyloc 5/16-18

$2.72

38

3296-39

Nut-Nyloc 3/8-16

$2.98

39

3296-45

NUT-HEX

$4.55

40

3296-51

Nut-Nyloc 3/4-10

$7.19

41

32120-33

RING-RETAINING

$8.15

42

32121-3

Rollpin 3/16 x 3/4

$0.97

43

614672

Screw-Shoulder 3/8-16 x 1.295

$3.11

44

109-1933-01

FORK-CASTER

$166.99

45

135-5962

ASM,WHEEL AND TIRE

$80.99

46

142-2914

FRAME-DECK SUPPORT W/DECALS

$855.99

47

103-4281

SPRING-EXTENSION

$85.99

48

135-5966

ASM,FF CASTER WHEEL W/AXLE

$131.99

49

103-4280

Asm, Spring Lift Assist (48")

$619.99
