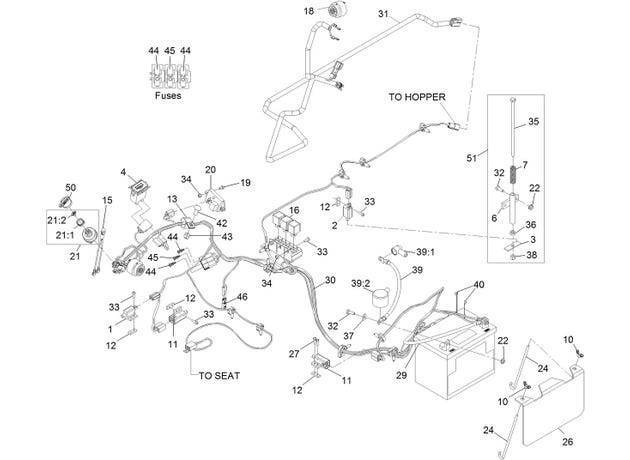

eXmark MN NV740KC Electrical Assembly

1

1-513051

Switch-N.O.

$19.79

2

1-513152

Switch-N.C.

$14.29

3

1-513180

PLATE-SWITCH, SEAT

$17.59

4

1-513374

Meter-Engine Hours

$76.60

6

1-522424-03

MOUNT-SPRING, SEAT

$35.19

7

1-523415

Spring

$34.09

10

1-543792

Wingnut-Nyloc 1/4-20

$7.07

11

1-633111

Switch

$21.99

12

1-633181

Plate-Tapped

$7.07

13

1-643312

Clip-Loom

$7.07

15

1-643267

Indicator-Red LED

$25.29

16

1-643275

Relay-12VDC 40 Amp

$24.19

18

103-0205

ALARM-TONE, DUAL

$69.29

19

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

20

100-6186

MODULE-DELAY, SEAT

$45.09

21

109-4736

Asm, Switch W/Nut

$42.89

21:1

103-0498

Nut-Ignition

$3.59

21:2

1-603511

Key-Ignition

$2.72

22

32128-33

Nut-Whizlock 1/4-20

$0.97

24

1-633651

BOLT-HOLDDOWN

$8.75

26

103-4161-03

HOLD DOWN-BATTERY

$40.69

27

3290-134

Screw-HH Machine 10-24 x 5/8

$0.59

29

103-8355

Cable-Ground(-)

$17.59

30

116-5491

Harness, Wiring

$495.99

31

103-8800

HARNESS-WIRE, HOPPER

$79.19

32

321-4

Screw-HH 1/4-20 x 3/4

$1.39

33

3290-500

Screw-PPH #10-24 x 5/8

$1.55

34

3296-2

Nut-Nyloc #10-24

$2.46

35

322-50

Screw-HH 5/16-18 x 7 1/2

$7.07

36

3217-6

Nut-Hex 5/16-18

$1.55

37

3256-2

Washer-1/4 Std

$0.59

38

3296-29

Nut-Nyloc 5/16-18

$2.72

39

116-4730

CABLE-BATTERY, POSITIVE

$19.79

39:1

1-543393

Insulator-Solenoid

$5.75

39:2

109-2407

INSULATOR-BATTERY

$5.75

40

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

42

3231-27

Bolt-Carriage 3/8-16 x 7/8

$4.91

43

3296-39

Nut-Nyloc 3/8-16

$2.98

44

1-816001

FUSE-BLADE TYPE, 20 AMP

$7.07

45

1-816003

FUSE-BLADE TYPE, 30 AMP

$5.75

46

116-0053

CAP-PLUG

$40.69

50

103-2106

Key-Exmark Logo

$5.75

51

103-8528

HOPPER SWITCH ACTUATOR ASM

$93.99
