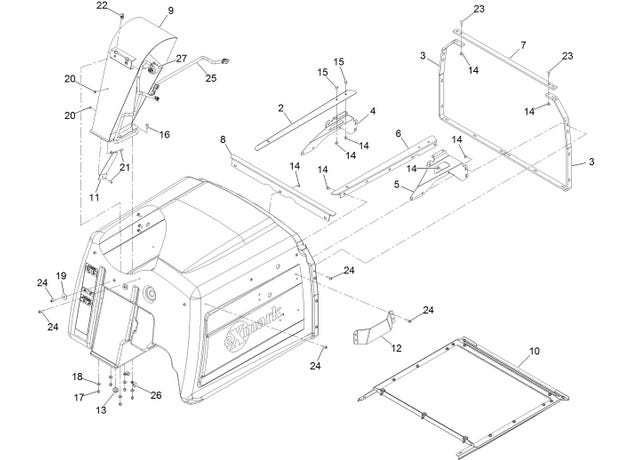

eXmark MN NV640KC48 Hopper Assembly No. 103-9457

2

103-5736-03

ANGLE-SCREEN TRACK, RH

$41.79

3

103-5045-03

REINFORCEMENT-HOPPER

$76.99

4

103-5751-03

BRACE-DOOR PIVOT, RH

$67.09

5

103-5749-03

BRACE-DOOR PIVOT, LH

$67.09

6

103-5774-03

ANGLE-SCREEN TRACK, LH

$41.79

7

103-5772-03

BRACKET-FRAME CONNECT

$59.39

8

103-7035-03

CHANNEL-SCREEN, FRONT

$30.79

9

109-3650-03

DIFFUSER

$355.99

10

109-0717

HOPPER SCREEN ASM

$409.99

11

103-8680

DEFLECTOR-DISCHARGE CHUTE

$21.99

12

109-4019

PLATE-GUARD

$49.49

13

1-543296

GROMMET

$9.35

14

32128-33

Nut-Whizlock 1/4-20

$0.97

15

321-2

Screw-HH 1/4-20 x 1/2

$3.71

16

321-4

Screw-HH 1/4-20 x 3/4

$1.39

17

3296-42

Nut-Nyloc 1/4-20

$0.59

18

3256-2

Washer-1/4 Std

$0.59

19

1-613235

WASHER

$1.94

20

3296-2

Nut-Nyloc #10-24

$2.46

21

32122-30

Screw-Truss HD #10-24 X 1/2

$1.25

22

107069

Nut-Retainer-Panel 1/4-20

$2.98

23

3229-2

Bolt-Carriage 1/4-20 x 1

$3.47

24

32105-32

Screw-Truss HD 1/4-20 x 1

$1.68

25

103-8800

HARNESS-WIRE, HOPPER

$79.19

26

1-513762

Clip-Loom 1/2

$8.51

27

103-0205

ALARM-TONE, DUAL

$69.29
